General: Stainless steel master link for 3- and 4-leg chainslings.
Standard: DIN 5688-1.

  • Material: AISI 316 TI.
  • Finish: Pickled and blasted.
  • Safety factor: 4:1.
  • Grade: 6
Pewag_VWI_Master_link_assembly
kwb_GT_S_m_225mm
Select a row from the table below, then click the add to quote button
Part Code Code Diameter
mm
WLL
ton
Usable with sling hooks
up to DIN 15401 No.

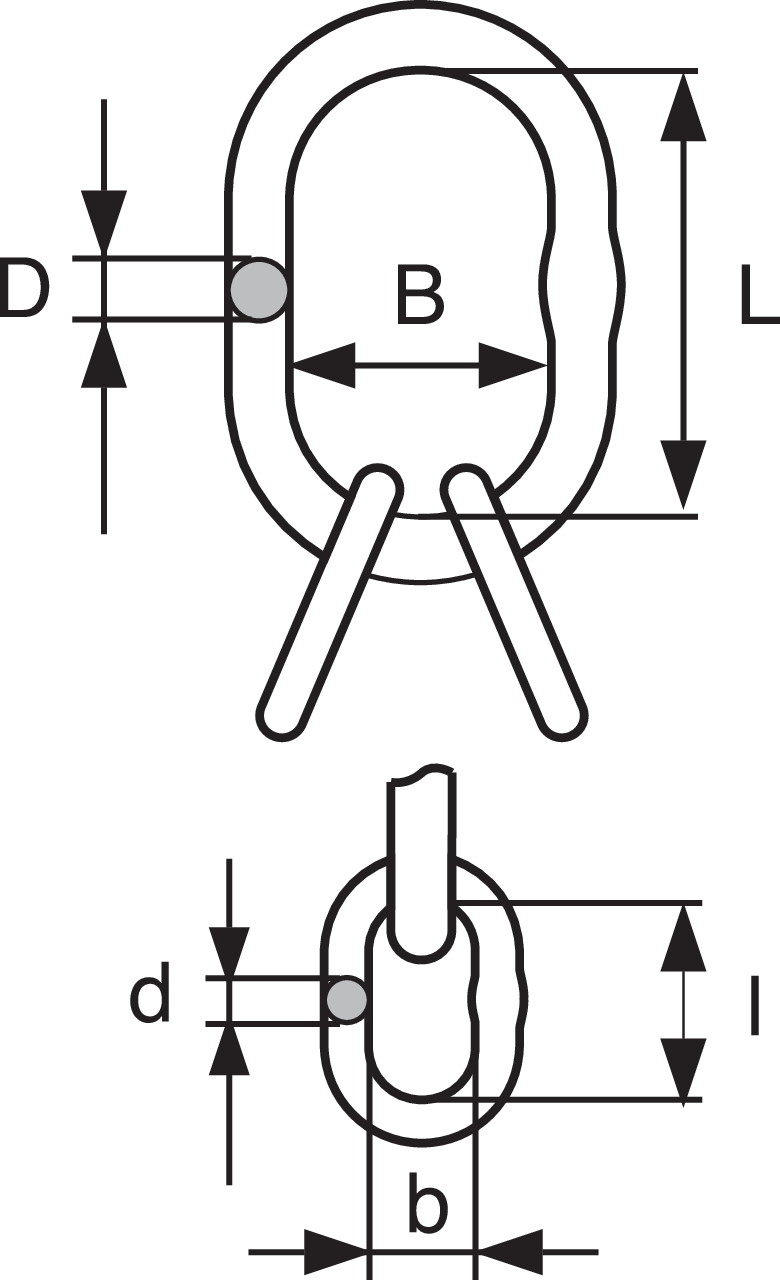

Consisting of D (mm) L (mm) B (mm) d (mm) l (mm) b (mm) Weight
kg
CAD
11.0492128 VWI 4 10 0.84 1,6 AWI 10 + 2 BWI 9 10 80 50 9 44 20 0.28
11.0492129 VWI 5 13 1.3 2,5 AWI 13 + 2 BWI 10 13 110 60 10 44 20 0.52
11.0492130 VWI 6/7 19 2.6 5 AWI 16 + 2 BWI 13 16 110 60 13 54 25 0.91
11.0492131 VWI 8 23 3.35 6 AWI 18 + 2 BWI 16 18 135 75 16 70 34 1.64
11.0492132 VWI 10 27 5.25 8 AWI 22 + 2 BWI 20 23 160 90 20 85 40 3.02
11.0492133 VWI 13 33 8.9 10 AWI 26 + 2 BWI 22 27 180 100 23 115 50 4.78
11.0492134 VWI 16 36 13.2 16 AWI 32 + 2 BWI 26 32 200 110 27 140 65 7.98
