• Not for lifting

General: Chain for different applications.


  • Marking: According to standard
  • Finish: 3-4 mm zink-platined, 5- mm hot-dip galvanized.
  • Standard: DIN 766
  • Warning: Not for lifting.
  • Grade: 3
KL_White_225mm
KLM_e_225mm
Select a row from the table below, then click the add to quote button

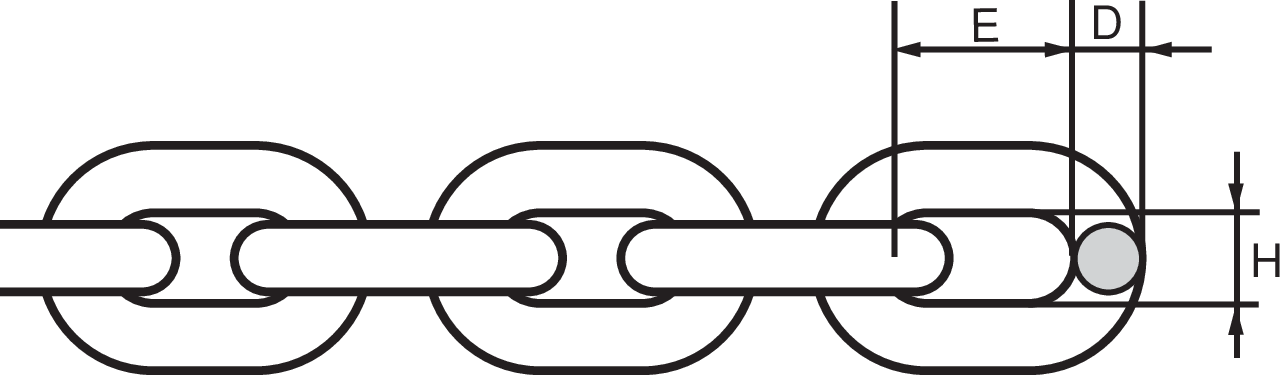

Part Code Code Diameter
mm
Min. breakingforce
kN
Length (m) Breaking force (kP) E
mm
H
mm
Weight
kg/m
CAD
11.61766030E KLZ-3-D3 3 3.2 50 320 16 5 0.16
11.61766040E KLZ-4-D3 4 8.1 50 810 16 5,7 0.32
11.61766050G KLZ-5-D3 5 12.5 30 1,270 18,5 7 0.5
11.61766060G KLZ-6-D3 6 16 30 1,630 18,5 8,2 0.8
11.61766080G KLZ-8-D3 8 32 15 3,260 24 11,2 1.4
11.61766090G KLZ-9-D3 9 40 25 4,070 27 12,6 1.8
11.61766100G KLZ-10-D3 10 50 15 5,090 28 14 2.2
11.61766110G KLZ-11-D3 11 63 25 6,420 31 15,4 2.7
11.61766130G KLZ-13-D3 13 80 25 8,150 36 18,2 3.8

*Please note that this product is sold in rolls only.
