Design: Weldable hook for excavators, wheel loader or other applications where a weldable hook is needed.







  • Material:  Alloy steel grade 10.
  • Marking: WLL.
  • Finish: Painted.
  • Note: All welding has to be done by competent welder. Please read welding instructions.
  • Warning: The hook part may not be heat-treated.
  • Safety factor: 4:1.
KWB Anschweißhaken AWH rot
Weld
ZE_KWB Anschweißhaken AWH rot
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton

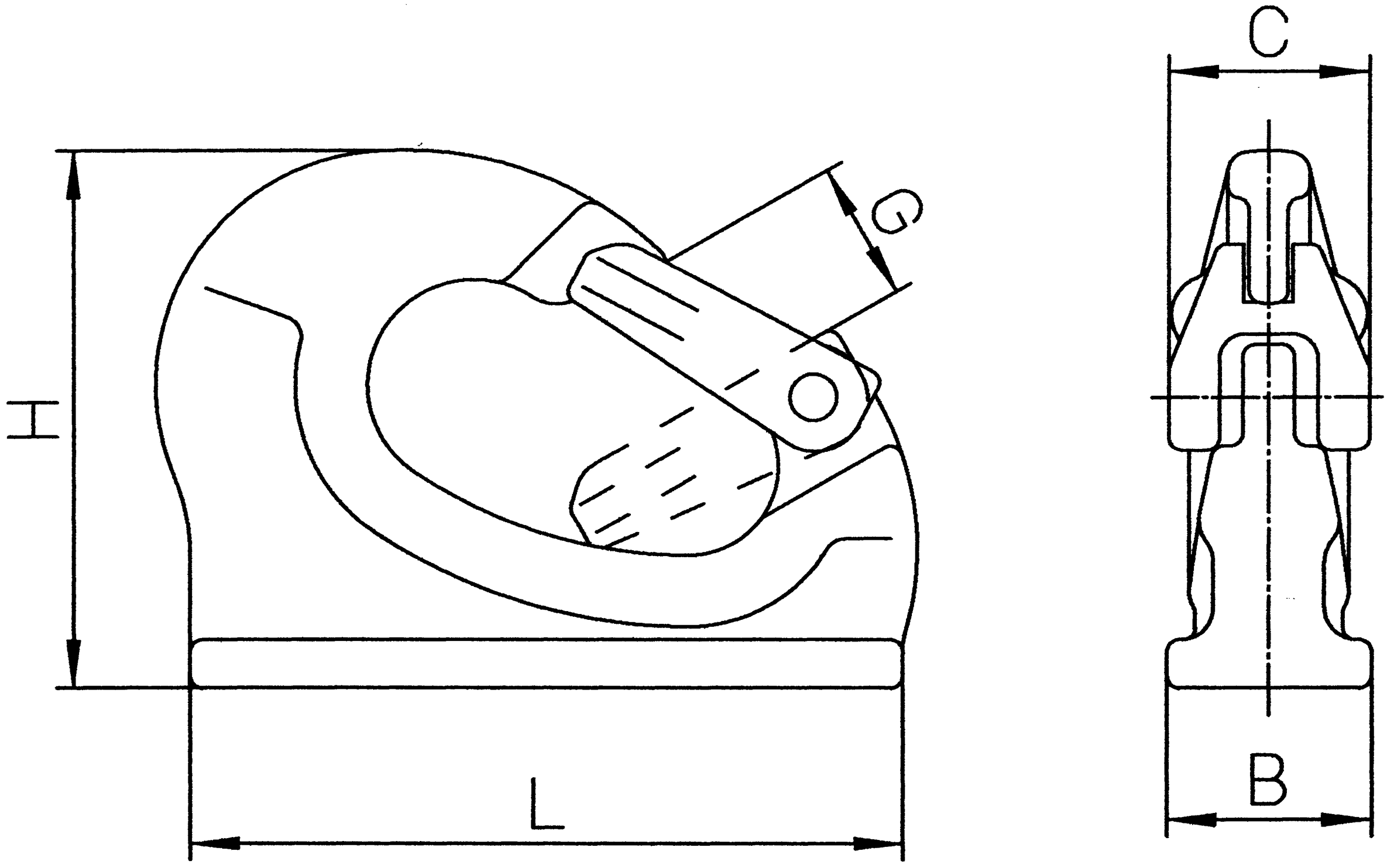

a-size mm L (mm) H (mm) G (mm) B (mm) C (mm) Weight
kg
CAD
11.2821601 HAS-013 1.3 4 95 71 25 25 34 0.6
11.2821604 HAS-038 3.8 6 132 105 29 35 40 1.3
11.2821607 HAS-063 6.3 8 167 130 34 45 49 2.8
11.282161 HAS-100 10 9 175 133 34 50 49 3.7
