Codipro

General: DSR


Swiveling under load
Usable for any kind of lifting operation
Two ways of tightening:
- Allen key
- Torque wrench(also for external hex)

  • Material: High tensile steel
  • Marking: According to standard, GRADUP steel quality, the recommended tightening torque stamped on all lifting rings in the GRADUP range, the manufacturer brand, traceability marks of each component ( batch number) the thr
  • Finish: Red painted
  • Standard: EN 1677-1
  • Safety factor: 5:1

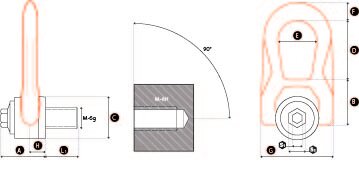

Product Picture 1
Select a row from the table below, then click the add to quote button
Part Code Thread WLL StandardL1 mm Torque
Nm
S1 (mm) S2 (mm) A
mm
B (mm) C (mm) D
mm
E (mm) F (mm) G (mm) H (mm) Weight
kg
CAD
11.42DSR M 6 UP M 6 (x1) 0,15 15 4 8 16 33 30 30 38 27 14 53 9,5 0.3
11.42DSR M 10 UP M 10 (x1.50) 0,70 18 10 8 16 33 30 30 38 27 14 53 9,5 0.3
11.42DSR M 5 UP M 5 (x0.8) 0,07 15 3 8 16 33 30 30 38 27 14 53 9,5 0.3
11.42DSR M 8 UP M 8 (x1.25) 0,40 15 6 8 16 33 30 30 38 27 14 53 9,5 0.3
11.42DSR M 12 UP M 12 (x1.75) 1,05 21 15 8 16 33 30 30 38 27 14 53 9,5 0.3
11.42DSR M 16 UP M 16 (x2) 2,00 27 50 8 20 45 40 45 53 38 17 76 13 0.9
11.42DSR M 18 UP M 18 (x2.5) 2,30 27 70 8 20 45 40 45 53 38 17 76 13 0.9
11.42DSR M 20 2T5 UP M 20 (x2.5) 2,50 30 100 8 20 45 40 45 53 38 17 76 13 0.9
11.42DSR M 14 UP M 14 (x2) 1,40 23 30 8 20 45 40 45 53 38 17 76 13 0.9
11.42DSR M 20 3T2 UP M 20 (x2.5) 2,90 25 100 14 24 62 55 60 83 55 25 115 13 2.6
11.42DSR M 24 UP M 24 (x3) 4,40 36 160 14 24 62 55 60 83 55 25 115 19 2.6
11.42DSR M 22 UP M 22 (x2.5) 3,50 33 120 14 24 62 55 60 83 55 25 115 19 2.6
11.42DSR M 27 UP M 27 (x3) 5,70 40 200 14 24 62 55 60 83 55 25 115 19 2.7
11.42DSR M 30 6T3 UP M 30 (x3.5) 6,00 45 250 14 24 62 55 60 83 55 25 115 19 2.7
11.42DSR M 30 8T UP M 30 (x3.5) 6,70 45 250 14 30 80 77 78 98 71 26 141 28 5.4
11.42DSR M 36 UP M 36 (x4) 8,00 54 320 14 30 80 77 78 98 71 26 141 28 5.4
11.42DSR M 42 UP M 42 (x4,5) 8,50 63 400 14 30 80 77 78 98 71 26 141 28 5.5
UNC thread also available: from UNC 1/4" to UNC 1"1/4
