General: The eyes can be loaded with working load limit in all directions. All the eyes are pivoted to avoid breakage in the eyes, which also make it possible to fold it aside when it is not used.





  • Material: Eye of alloy steel grade 8.
  • Marking: WLL.
  • Finish: Painted.
  • Note: The surface that the lifting eyes shall be attatched to shall be flat and tolerate the load it is going to be exposed to.
  • Safety factor: 4:1.
APG_new_225mm
Apg-2m_lom_225mm
TAPG_dwr
Select a row from the table below, then click the add to quote button

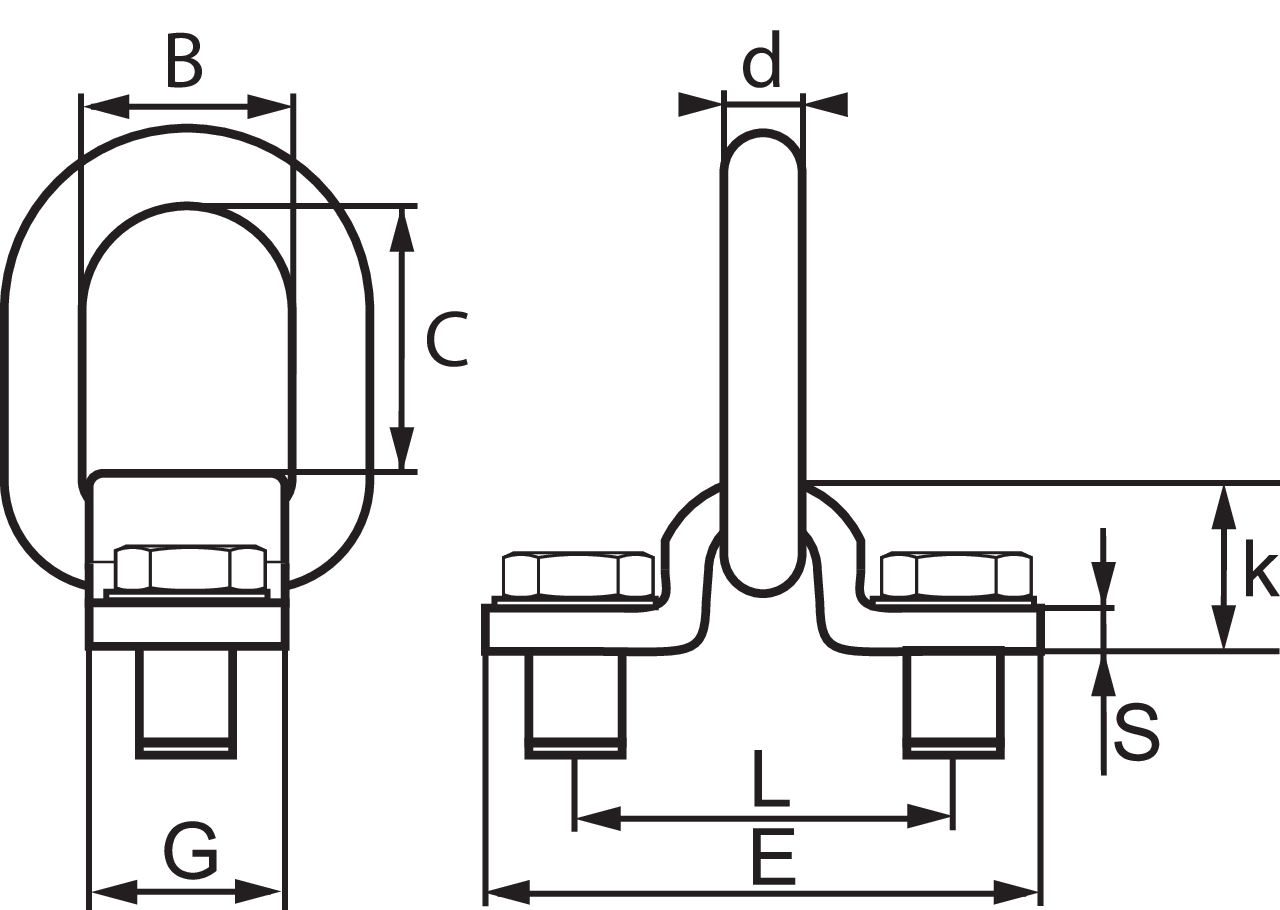

Part Code Code WLL
ton
Thread* dim G
mm
L
mm
S
mm
k (mm) E
mm
Weight
kg
CAD
11.410380503200 TAPG-3 3 M20 50 90 12 34 130 1.1
11.410380505200 TAPG-5 5 M24 60 110 15 42 160 2
11.410380508200 TAPG-8 8 M27 70 130 20 55 190 3.6
*Bolt specification is grade 8.8.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
WLL (ton)

3.15 4.75 4.25
5.3 8 7.1
8 12 11.2
