General: MEGA.DSS
Swiveling under load
Tightening by Allen key.
On request the product can be certified for lashing.









  • Material: High tensile steel
  • Marking: GRADUP steel quality, the recommended tightening torque stamped on all lifting rings in the GRADUP range, the manufacturer brand, traceability marks of each component ( batch number) the thr
  • Finish: Red painted
  • Standard: EN 1677-1
  • Safety factor: 5:1
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button
Art No Thread WLL Torque
Nm

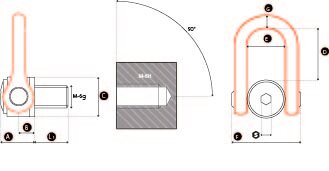

StandardL1 mm S (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Weight
kg
CAD
11.45MEGADSSM64UP M 64 (x6) 26,00 600 100 36 127 64 140 195 143 278 69 42
11.45MEGADSSM72UP M 72 (x6) 28,00 700 110 36 127 64 140 195 143 278 69 43
11.45MEGADSSM72x4UP M 72 (x4) 28,00 700 110 36 127 64 140 195 143 278 69 43
11.45MEGADSSM80UP M 80 (x6) 32,00 800 120 36 127 64 140 195 143 278 69 44.5
11.45MEGADSSM90UP M 90 (x6) 36,00 900 135 36 127 64 140 195 143 278 69 46.5
11.45MEGADSSM100UP M 100 (x6) 48,00 1,000 150 36 127 64 140 195 143 278 69 49
UNC thread also available: from UNC 2 "3/4" to UNC 4"
