Codipro

General: SEB
Swivelling under load
Safe alternative to DIN 580
Torque key adaptor available. On request, the product can be certified for lashing.

  • Material: High tensile steel
  • Marking: GRADUP steel quality, the recommended tightening torque stamped on all lifting rings in the GRADUP range, the manufacturer brand, traceability marks of each component ( batch number) the thr
  • Finish: Red painted
  • Standard: EN 1677-1
  • Safety factor: 5:1

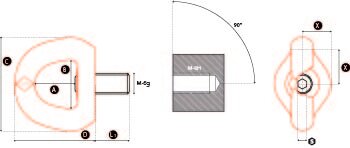

Product Picture 1
Select a row from the table below, then click the add to quote button
Part Code WLL diameter Torque
Nm
StandardL1 mm X/X (mm) S (mm) A (mm) B (mm) C (mm) D (mm) Weight
kg
CAD
11.40SEB M 10 UP 0,50 M 10 (x1.50) 10 17 20 6 30 34 60 57 0.24
11.40SEB M 12 UP 0,80 M 12 (x1.75) 15 21 20 6 30 34 60 57 0.24
11.40SEB M 8 UP 0,40 M 8 (x1.25) 6 14 20 6 30 34 60 57 0.24
11.40SEB M 16 UP 1,40 M 16 (x2) 50 27 35 8 38 45 88 80 0.8
11.40SEB M 20 UP 2,00 M 20 (x2.5) 100 30 35 8 38 45 88 80 0.8
11.40SEB M 243T 2 UP 3,20 M 24 (x3) 160 36 35 14 38 45 88 80 0.8
11.40SEB M 244T UP 3,40 M 24 (x3) 160 36 50 14 58 70 115 106 2.6
11.40SEB M 30 UP 5,50 M 30 (x3.5) 250 45 50 14 58 70 115 106 2.7
11.40SEB M 36 UP 9,00 M 36 (x4) 320 54 70 14 83 94 168 155 7
11.40SEB M 42 UP 12,00 M 42 (x4,5) 400 63 70 14 83 94 168 155 7
11.40SEB M 48 UP 15,00 M 48 (x5) 600 68 70 19 80 94 168 155 7
UNC thread also available: from UNC 3/8" to UNC 1"1/2

Download CAD

Description
