General: Welded Master Link designed for 1 leg chain, wire rope and webbing slings.
At least 25% greater WLL than traditional G80 products.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.

  • Material: Quenched and Tempered Alloy Steel
  • Marking: Type, manufacturer ID, traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Blue Painted
  • Standard: EN 1677-4
  • Safety factor: 4:1
  • Grade: 10
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button

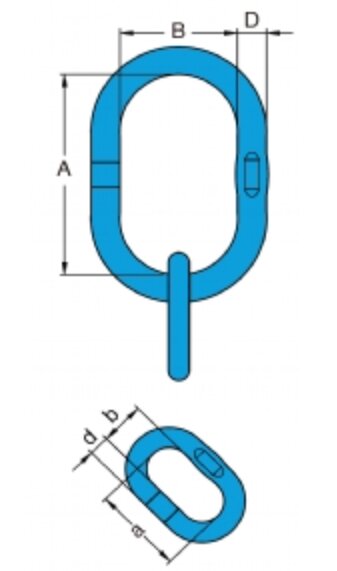

Art No Code WLLb 0-45°" (ton) DIN 15401NO Proof Load (kN) For grade 100 Chain (mm) Single D (mm) A (mm) B (mm) d (mm) a (mm) b (mm) Weight
kg
CAD
11.02X-0081-28 ED-22 4 25 98 10 28 340 180 16 70 34 5.4

Download CAD
