Gunnebo Industries

Design: Supplied as standard jaw-jaw. WLL rated similar to U.S. specification FF-T-791.b. Proof loaded and approved for lifting.

  • Material: High tensile alloy steel.
  • Marking:  WLL.
  • Finish: Galvanized.
  • Warning:  The turnbuckles are not allowed to be ajusted in length under load, when they are used for lifting!
  • Safety factor: 5:1.
1402_e_225mm
1402m_new_225mm_gunnebo
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton

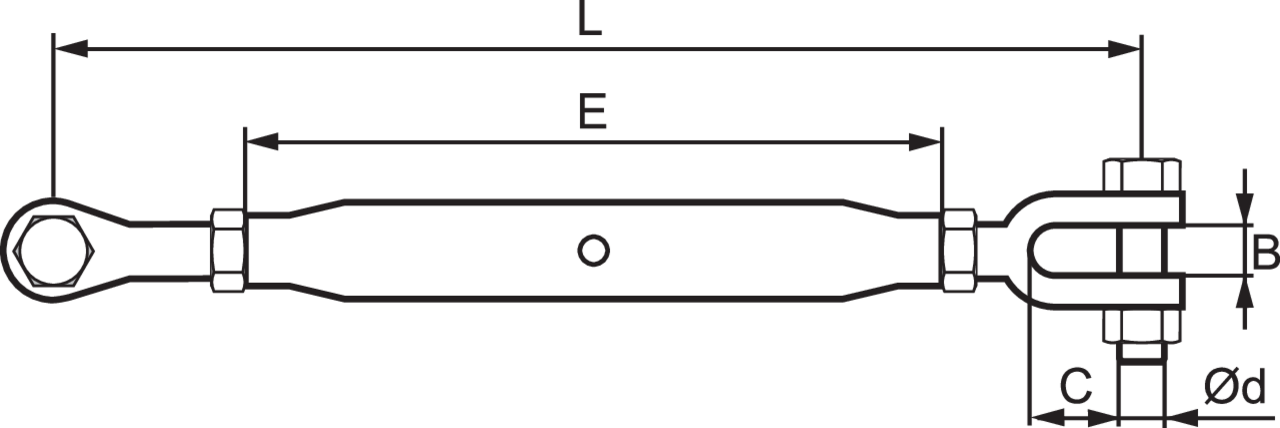

Thread B (mm) C (mm) E (mm) L min. L (mm) max. Ø d (mm) Weight
kg
CAD
11.50A801420 1430 2.5 M20 20 42 270 455 665 16 2.3
11.50A801424 1431 5 M24 28 54 340 570 820 22 4.8
11.50A801432 1432 7 1 1/4'' 38 71 370 680 950 28 8.6
11.50A801438 1433 10 1 1/2'' 45 84 420 790 1,090 32 16
11.50A801445 1434 13 1 3/4'' 50 85 500 870 1,230 39 23
11.50A801450 1435 17 2'' 58 97 600 1,030 1,480 45 33
Other dimensions and preformance on request.
