The Rescue Kit D4 is a complete kit and contains:
D4 Rescue device A-034-OR
2 carbiners (Stak Tri & Ovaloy Tri)
11 mm static rope R-079-WE at your selected length
Rope bag ACS-0009 (size depending on rope length)

Extra info D4 device: The D4 Work/Rescue device is an innovative product destined to be used on ropes with 10,5-11,5 mm diameter. It allows the abseiling of 2 Persons with a total weight of max. 240 kg and therefore can be used for pick off rescues when needed. The lever allows a a very precise control when descending , even with two persons. The D4 has a double safety feature; the anti-panic function stops the descent when pushing too hard on it, and when letting go the lever, it will also stop and keep the user safe from falling.

Abseiling speed: 2 m/s.
Max. number of persons: 2.
Max. rated load: 240 kg.
Weight: 0.66 kg.
Temperature from: -40°C up to +40°C.

  • Material: Aluminium (Anodised).
  • Marking: According to standard
  • Standard: EN 12841

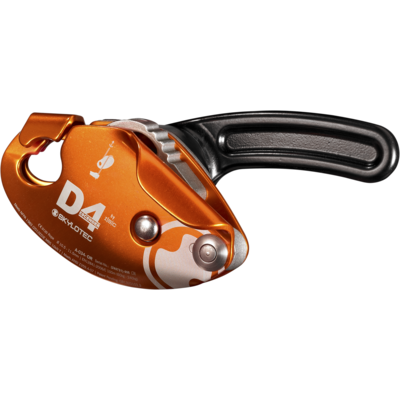

D4 a-034-or_s_01
D4 in use
Select a row from the table below, then click the add to quote button
Part Code Size CAD
19.15A-034-KIT-30 30
19.15A-034-KIT-50 50
19.15A-034-KIT-100 100
19.15A-034-KIT-XX Special length (max. 140 m)

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
