Powertex

Design: Load carrying yarn covered with double layer color coded protection sleeve. Roundsling of polyester can be delivered up to WLL 300 tons.
Chemical resistance: Resistant to most acids, but not strong alkalizes.
Stretch with working load: 2-3%.
Length tolerance: Nominal length (EWL) ±2%.
According EN 1492-2:2000+A1:2008:
D.3.6: Slings should be protected from edges, friction and abrasion, whether from the load or the lifting appliance.
Where reinforcements and protection against damage from edges and/or abrasion is supplied as part of the sling, this should be correctly positioned. It may be necessary to supplement this with additional protection.

CERTEX always recommends using protection.

  • Material: Polyester.
  • Marking: According to standard, The slings are provided with a blue label with manufacturer’s symbol, working load limit (WLL), length, CE marking and a label with handling instruction.
  • Temperature range: Between -40°C - +100°C.
  • Standard: EN 1492-2
  • Safety factor: 7:1.

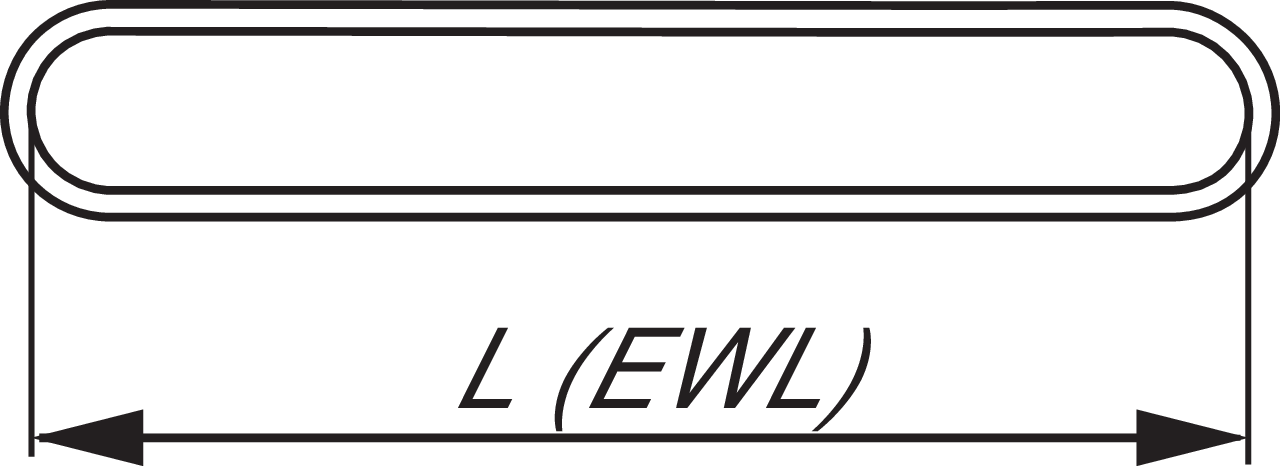

Rounding can also be delivered as 2, 3 and 4-part slings.XXX = Last 3 digits in art. no. indicates the effective working length in meters (EWL).Example XXX (020) = 2 meters.
Length-ewl_e_225mm_2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
CAD
12.20PRS010XXX 1
12.20PRS020XXX 2
12.20PRS030XXX 3
12.20PRS040XXX 4
12.20PRS050XXX 5
12.20PRS060XXX 6
12.20PRS080XXX 8
12.20PRS100XXX 10
12.20PRS120XXX 12
12.20PRS150XXX 15
12.20PRS200XXX 20
12.20PRS250XXX 25
12.20PRS300XXX 30
12.20PRS360XXX 36
XXX= the length in three digits 1 m = 010. WLL in t.
Can be delivered in sizes up to WLL 250t.
