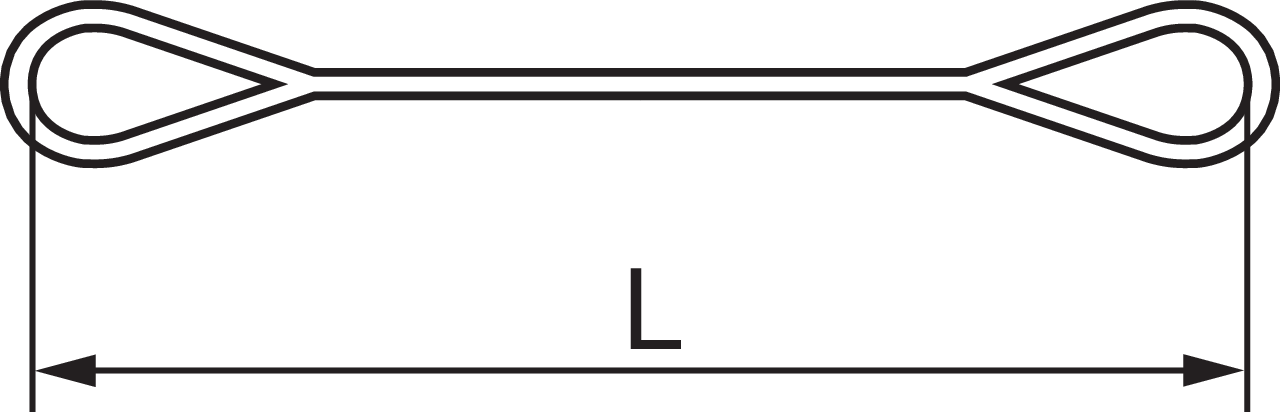

Design: Round sling covered with extra protection sleeve and provided with strengthen eye in each end.


Stretch with working load: 2-3%.

Length tolerance: Nominal length ±2%.

  • Material: Polyester. Resistant to most acids but not strong alkalizes.
  • Marking: The slings are provided with a blue label with manufacturer’s symbol, working load limit (WLL), length, CE marking and a label with handling instruction.
  • Temperature range: app. -40° - +100°C.
  • Standard: EN 1492-2
  • Safety factor: 7:1.
Rss-1_e_225mm_2
length_90_e_225mm_2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
CAD
RSS01 1
RSS02 2
RSS03 3
RSS04 4
RSS05 5
RSS06 6
RSS08 8
RSS10 10
RSS12 12
RSS15 15
RSS20 20
RSS25 25
RSS34 34
Other dimensions, WLL and special length on request.
