Crosby
  • Material: Forged alloy steel grade 10.
  • Marking: Logo, Product Identification Code (PIC), size
  • Note: Application in combination with Crosby chain coupler link S-1325
  • Safety factor: 4:1
  • Grade: 10
Crosby_A1355
Lifting
Select a row from the table below, then click the add to quote button

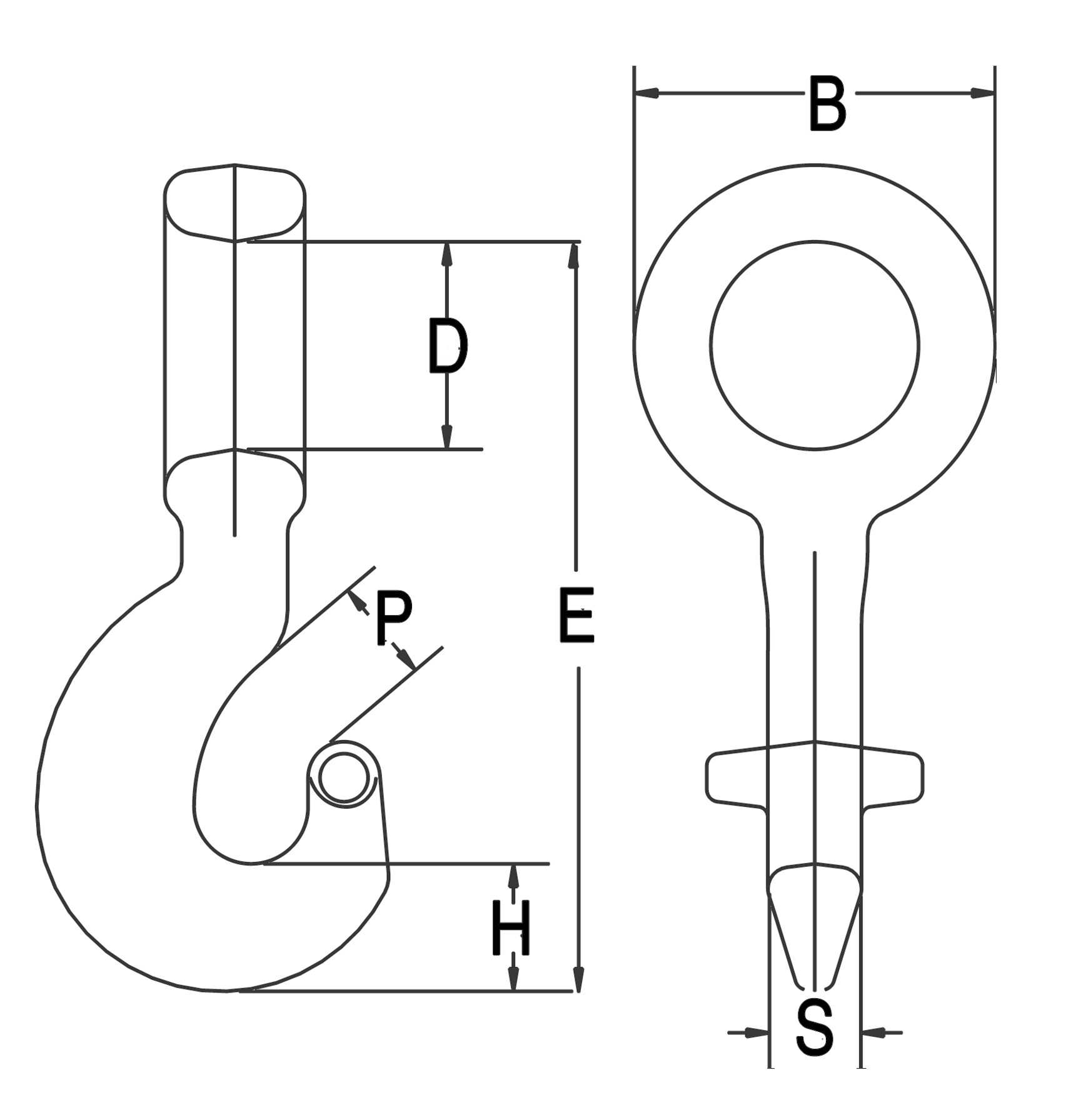

Part Code WLL
ton
For chain gr 10 Ø
mm
B
mm
D
mm
E
mm
H
mm
P
mm
S
mm
Weight
kg
CAD
11.251015204 2.6 7/8 52.1 30 123 20.1 17.5 16.5 0.34
11.251015213 4 10 67.6 39.9 154 23.6 23.6 17.5 0.74
11.251015222 6.8 13 85.1 51.6 193 30 32 23.8 1.4
11.251015231 10.3 16 107 64 246 39.1 28.4 30 3.2
