This safety hook with eye closes and locks automatically when placed under load, for greater safety.

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked, Pewag or PW, winner pro or 12, H16, batch code and type.
  • Temperature range: -60ºC up to +300ºC.
  • Finish: Light blue powdercoated.
  • Standard: EN 1677-3
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 12
SH_hook
Select a row from the table below, then click the add to quote button

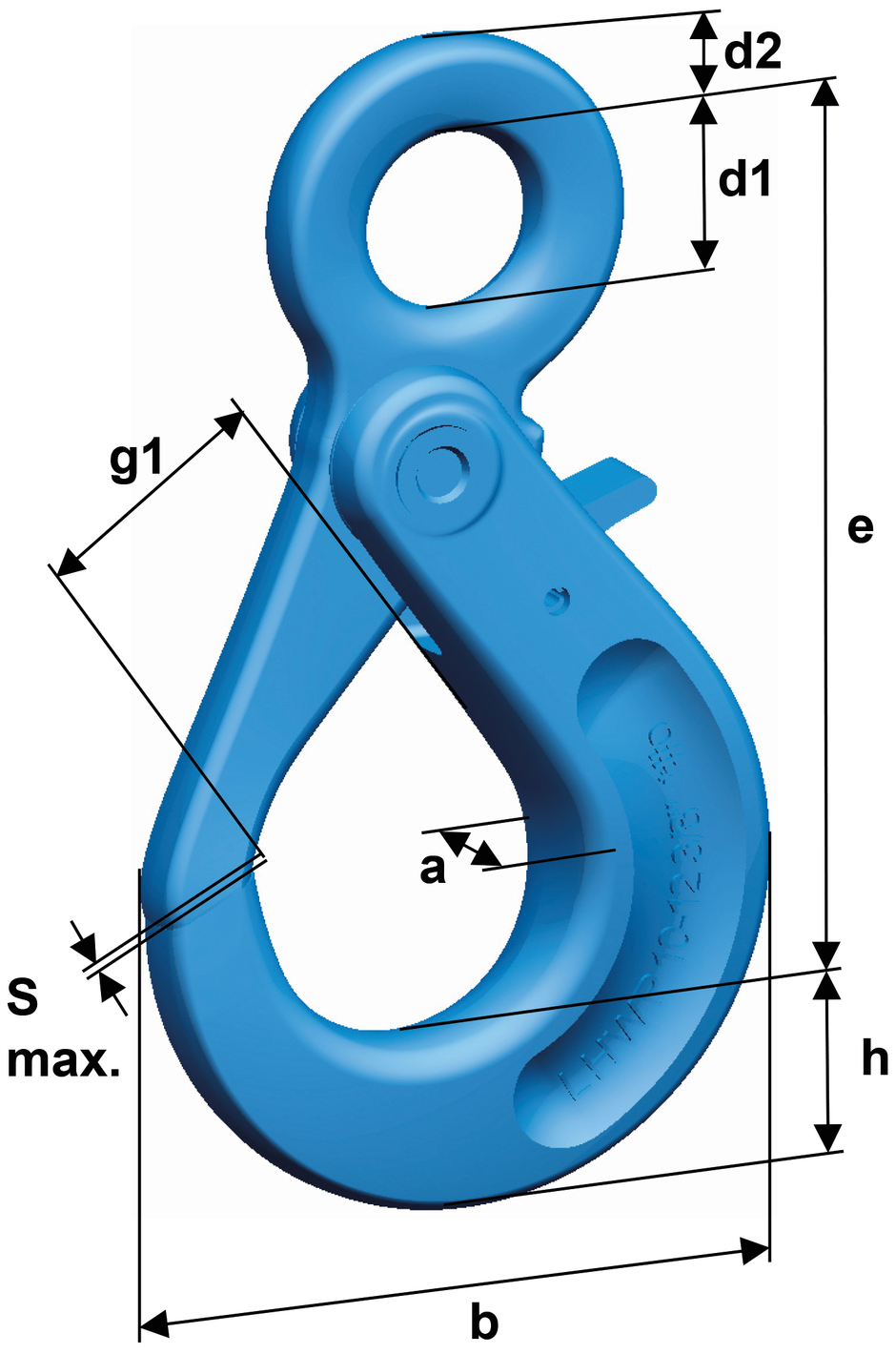

Part Code Code WLL
ton
s max.
mm
a
mm
b
mm
d1
mm
d2
mm
e
mm
g1
mm
h
mm
Weight
kg
CAD
11.1787237 LHWP 7/8 3 1 25 89 25 14 126 34 25 0.91
11.1787238 LHWP 10 5 1.5 28 112 31 17 158 45 31 1.56
11.1787239 LHWP 13 8 2 34 145 40 22 205 54 41 3.5
