Welded Master Link designed for 3-4 legs Wire Rope and Chain Slings.
At least 25% greater WLL than traditional G80 products. Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured

  • Material: Quenched and Tempered Alloy Steel
  • Marking: According to standard, CE-marked, Type, manufacturer ID, traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Standard: EN 1677-4
  • Safety factor: 4:1
  • Grade: 10

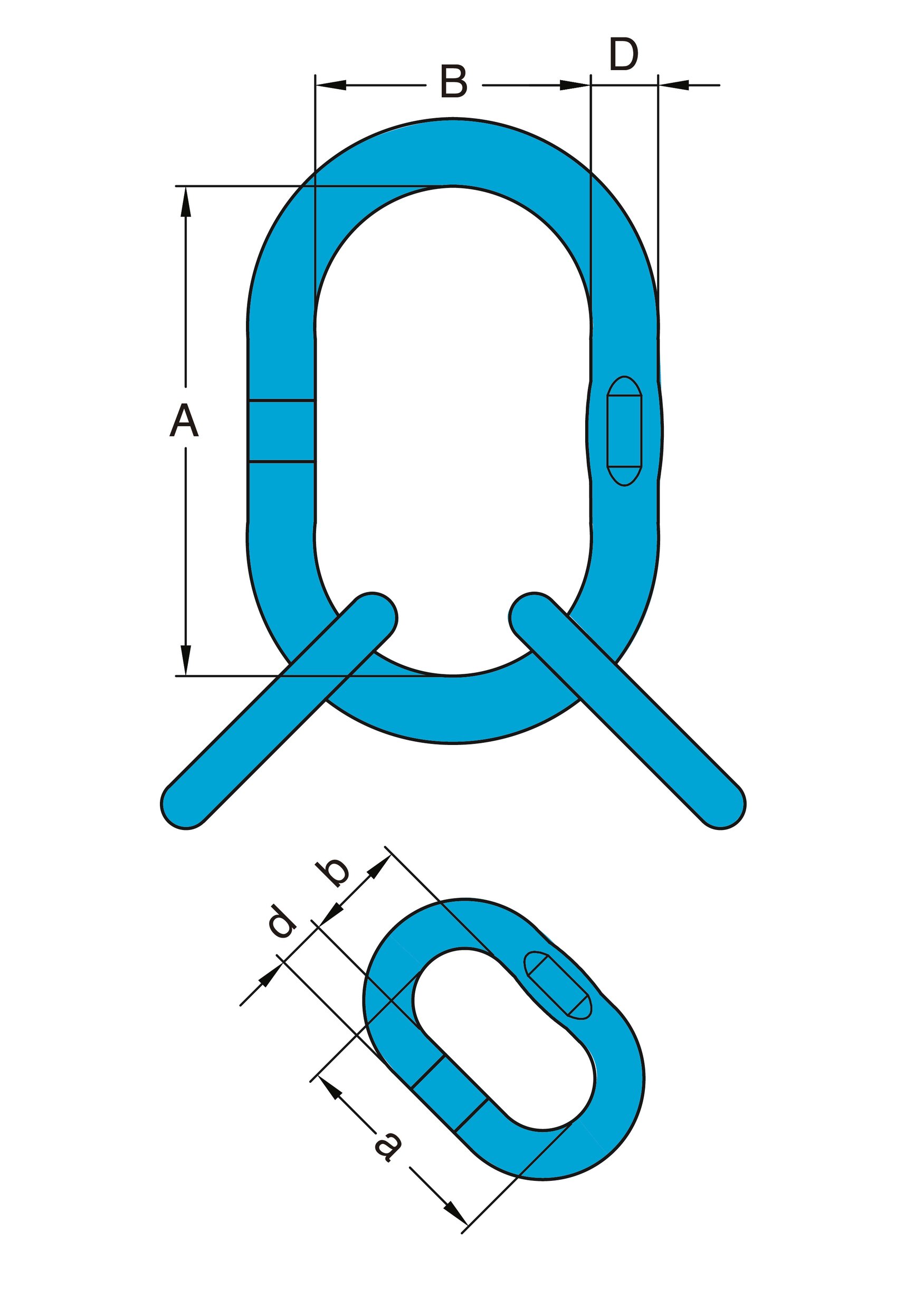

Product Picture 1
Select a row from the table below, then click the add to quote button
Part Code Code Proof Load
kN
WLL β 0-45°"
ton
Used to single hook acc. to DIN 15401 No. For Grade 100 Chain 3- and 4-leg
mm
D
mm
A
mm
B
mm
d
mm
a
mm
b
mm
Weight
kg
CAD
11.02X-006L-19 BD-19 + 2 DD+13 103 4,2 5 6 19 135 75 13 110 60 1.6
11.02X-006L-22 BD-22 + 2 DD+16 201 8,2 6 7,8 22 160 90 16 110 60 2.5
11.02X-006L-32 BD-32 + 2 DD+22 262 10,7 10 10 32 200 110 22 160 90 6.9
11.02X-006L-36 BD-36 + 2 DD+28 385 15,7 16 13 36 260 140 28 180 100 11.8
11.02X-006L-45 BD-45 + 2 DD+32 544 22,2 25 16 45 300 180 32 200 110 19.7

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
