Terrier

General: TSHPU is a follow-up of the TSHP-1 and TSHP-1.5. It is especially designed for lifting, handling and transporting of HP-profile and construction with HP-profile.

  • Marking: Working load limit, jaw capacity and CE-marking.
  • Finish: Yellow painted.
  • Note: Min. load is 10% of WLL.
  • Safety factor: 5:1.
TSHPU_Blank
TSHPU_m2
TSU_TSHPU_m3
TSHPU_m
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton

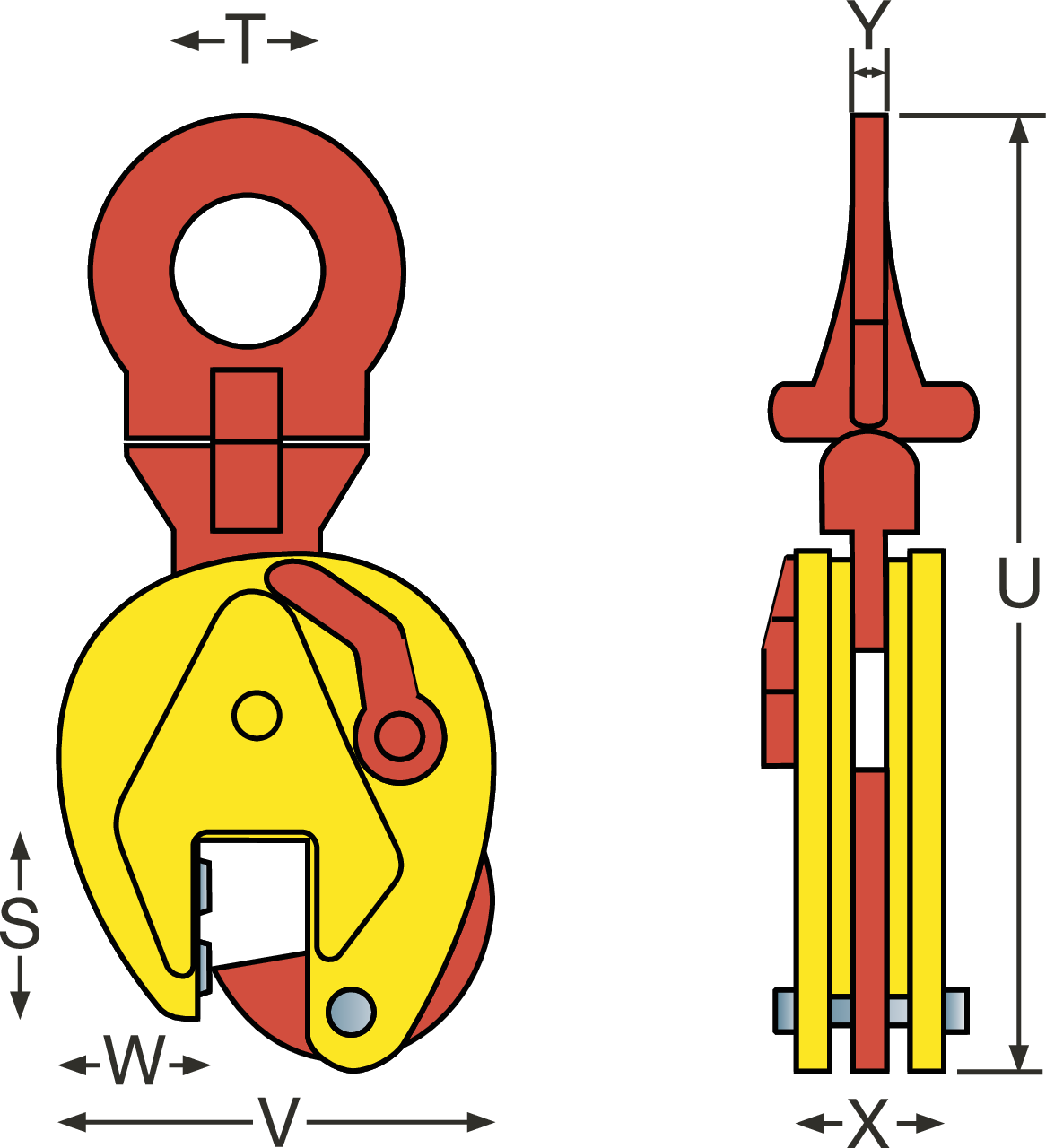

X (mm) Y (mm) Jaw opening R (mm) S (mm) T (mm) U (mm) V (mm) W (mm) Weight
kg
CAD
16.01860300 3 TSHPU 3 54 16 0-35 93 70 369 182 58 8
16.01860500 5 TSHPU 5 86 20 0-45 110 70 434 228 58 17.3
