General: The double ended joint grip is used to connect two lengths of prestressed strands with equal or unequal diameter (if unequal please contact CERTEX). The grips are for multiple use.

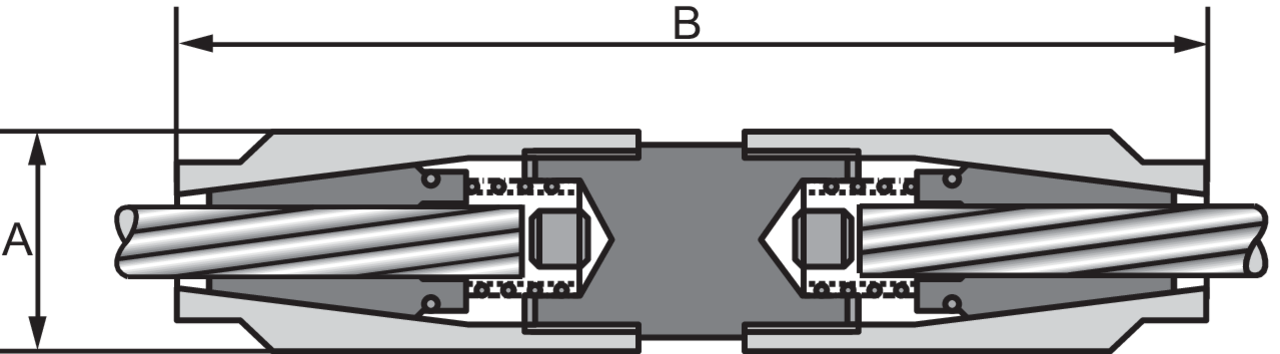

Design: The grips consist of two tapered barrels, each containing a wedge and a spring. The two are joined together by means of a knurled centre plug, which makes assembly simple and safe.

603046_s_225mm
3220_new_225mm
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
Grip code A (mm) B (mm) CAD
10.74604066 9.6 604,066 35 157
10.74604064 13 604,064 44 198
10.74604062 15 604,062 50 210
