Design: Forged.

  • Finish: Galvanized.
4921_e_225mm
4921m_e _225mm
Select a row from the table below, then click the add to quote button

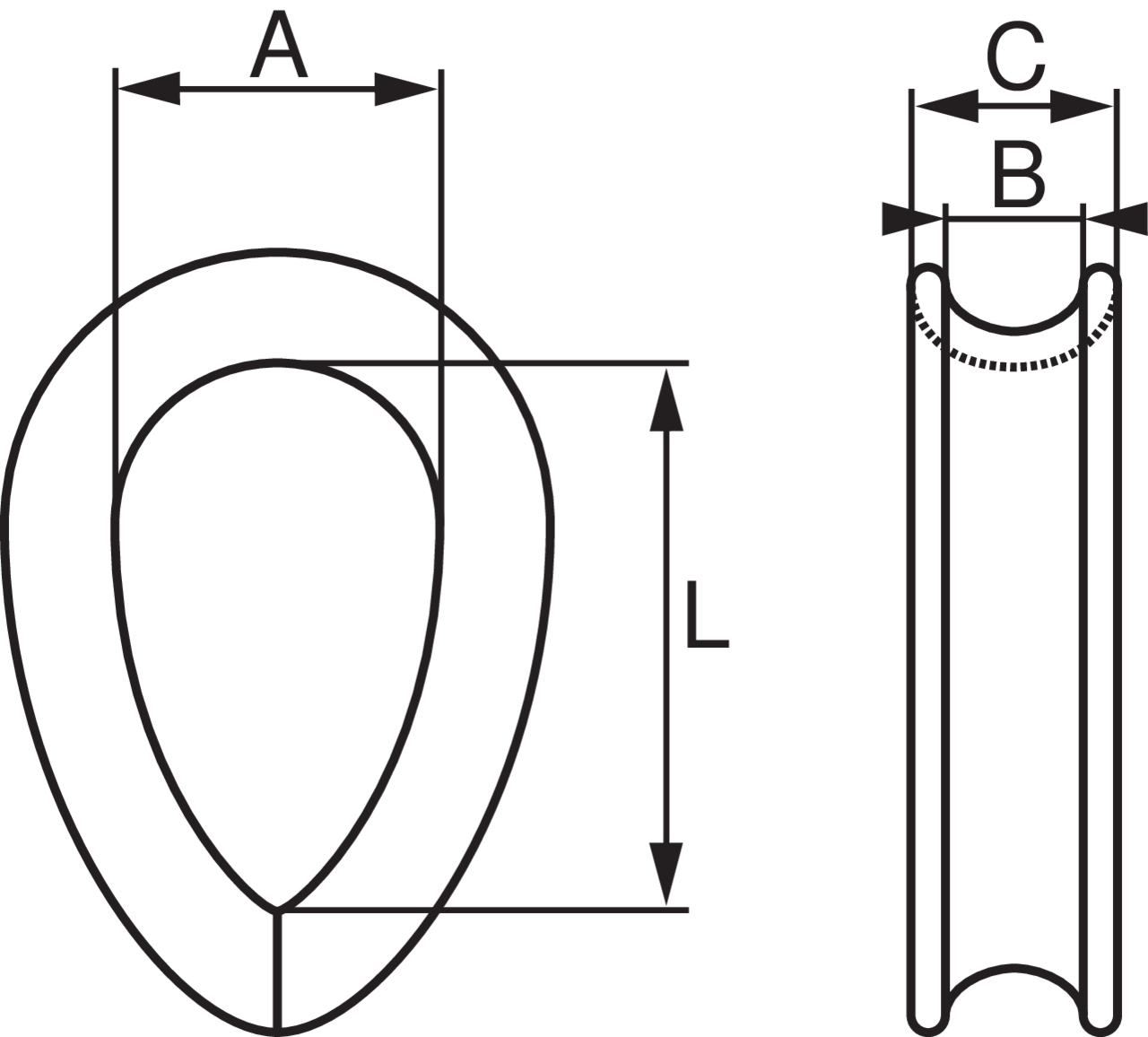

Part Code Code Diameter
mm
A
mm
B
mm
C
mm
L
mm
Weight
kg/100pc
CAD
10.254908 4908 8 22 9 14 35 8
10.254910 4910 9-10 30 11 16 45 10
10.254912 4912 11-12 35 13 18 55 20
10.254914 4914 13-14 45 15 20 65 26
10.254916 4916 15-16 50 17 22 75 36
10.254918 4918 17-18 53 19 25 80 50
10.254919 4919 18-19 60 21 29 90 60
10.254923 4923 20-23 70 25 34 120 100
10.254928 4928 24-28 80 30 38 140 160
10.254931 4931 29-31 100 33 44 160 180
10.254936 4936 32-36 115 38 49 185 350
10.254939 4939 37-39 120 41 52 195 440
10.254943 4943 40-43 130 46 60 215 520
10.254949 4949 44-49 140 52 65 240 730
10.254952 4952 50-52 150 60 72 250 1,100
10.254966 4966 54-66 180 70 82 310 1,700

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
