Typical application: Signal and control cable for cranes, elevators, overhead, etc.
Conductor: Multi wire bright copper PVC insulating, numbering.
Covering: PVC.

  • Temperature range: 0°C – +70°C.
  • Note: Halogen free cable also available upon request.

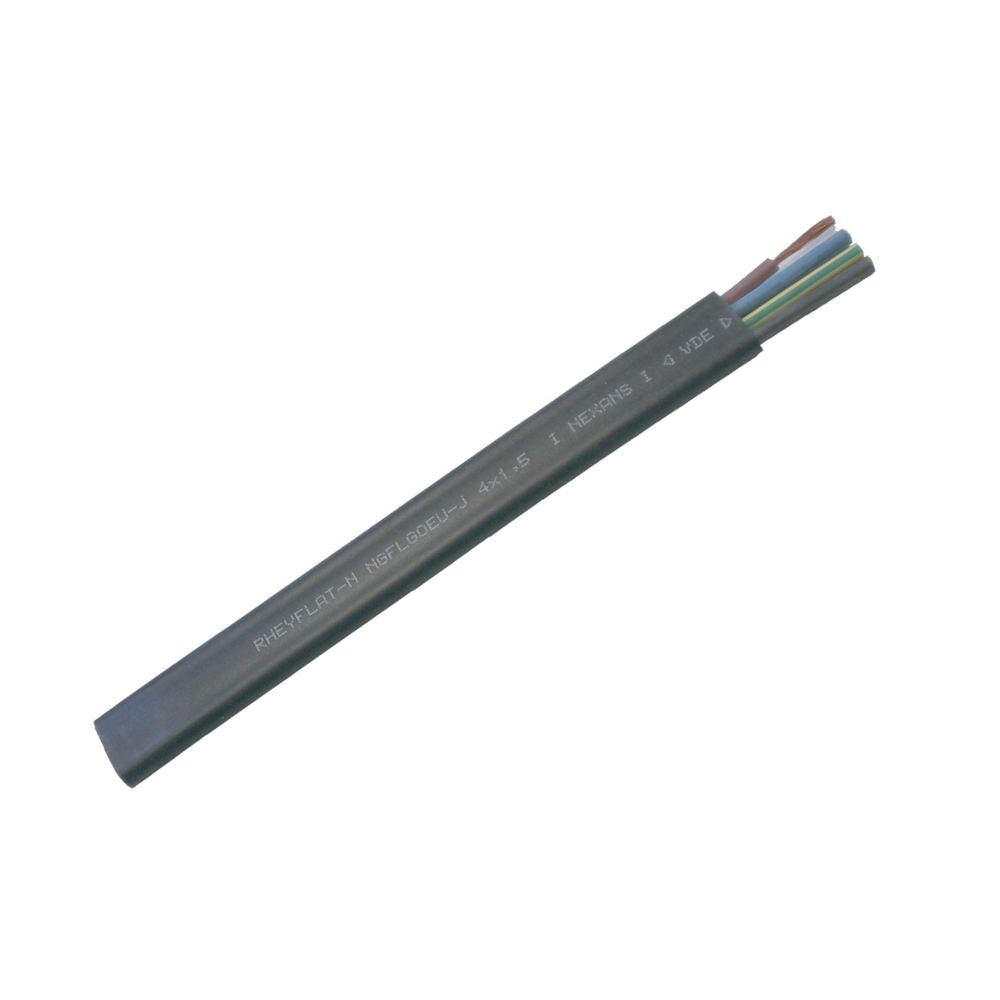

Cable - flat_225mm
Select a row from the table below, then click the add to quote button
Part Code Code Conductor-area
Cableticknessx width app.
Numberof Conductors pc Number of Wires/Conductor pc Weight
10.55F12075 F12075 0,75 4x33 12 24 30
10.55F24075 F24075 0,75 5x63 24 24 59

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
