Home / Products / Crane & fork truck accessories / Lifting beams & Spreaders / Frame beams / Lifting Beam type 6640

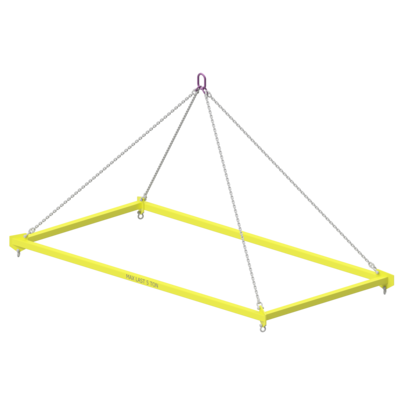

General: The frames have a high point of oscillation which results in good balance. The table only shows a few examples of available sizes. Other lengths and working loads can be manufactured to suit a customers requirements. The frames can be provided with accessories such as hooks, wire rope slings, chain slings or textile slings. Please also refer to our description in the introduction to this section on lifting beams.

Marking: Working load limit and CE marking.
Finish: Yellow painted (other colours on request)

Select a row from the table below, then click the add to quote button

Part Code	WLL ton	Length m	Width m	WLL t
13.356640050xxxzzz	0.5	1-6	1-6
13.356640010xxxzzz	1	1-6	1-6
13.356640020xxxzzz	2	1-6	1-6
13.356640030xxxzzz	3	1-6	1-6
13.356640040xxxzzz	4	1-6	1-6
13.356640050xxxzzz	5	1-6	1-6
13.356640060xxxzzz	6	1-6	1-6
13.356640080xxxzzz	8	1-6	1-6
13.356640100xxxzzz	10	1-6	1-6
13.356640120xxxzzz	12	1-6	1-6
13.356640150xxxzzz	15	1-6	1-6
13.356640200xxxzzz	20	1-6	1-6
13.356640yyyyxxxzzz		1-6	1-6	>20 Ton

* Specified lifting beam lengths are standard lengths, other lengths and loads upon request.
xxx: length in 3 digits eg. 5,5m = 055 / zzz: width in 3 digits eg. 5,5m = 055 / yyyy: WLL in 4 digits eg. 55ton = 0550

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
