KG-80309, KG-80603
KG-80610, KG-80605
Select a row from the table below, then click the add to quote button
Part Code Code Type Breaking force
Breaking force

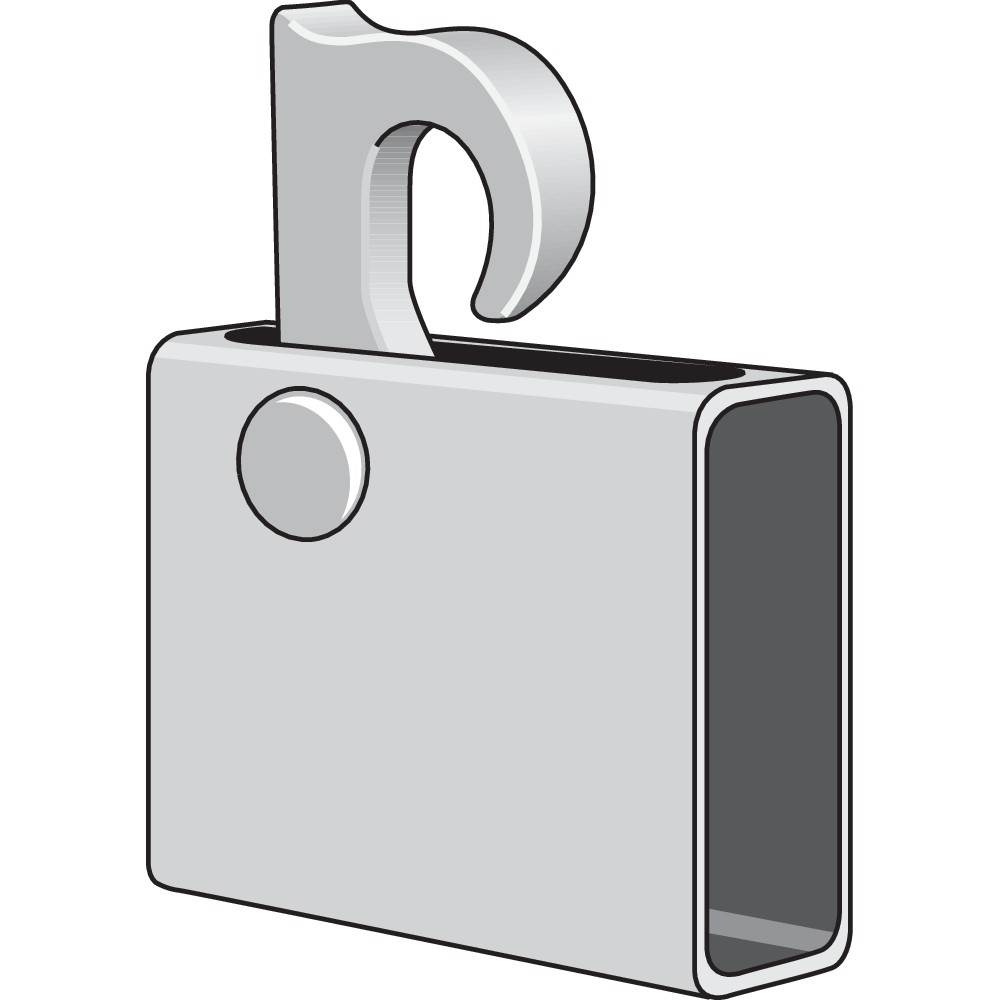

07.49KG80615 KG-8015 VIP-hook to be mounted in the edge profile. 58,9 6,000 1.5

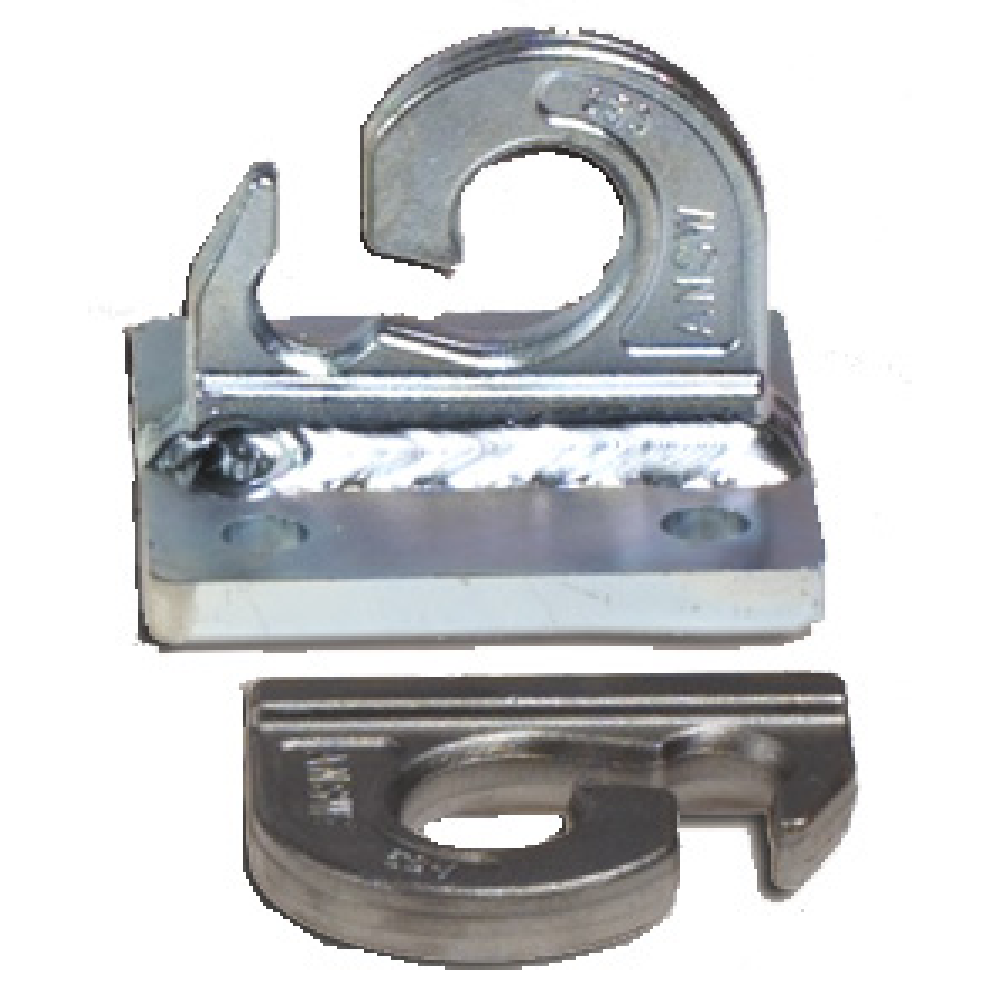

14.08780309 KG-80309 Electrogalvanized KG-hook on plate. Fasten with bolts. 58,9 6,000 1
14.08780603 KG-80603 KG-hook. Fixed by welding. 58,9 6,000 0.35

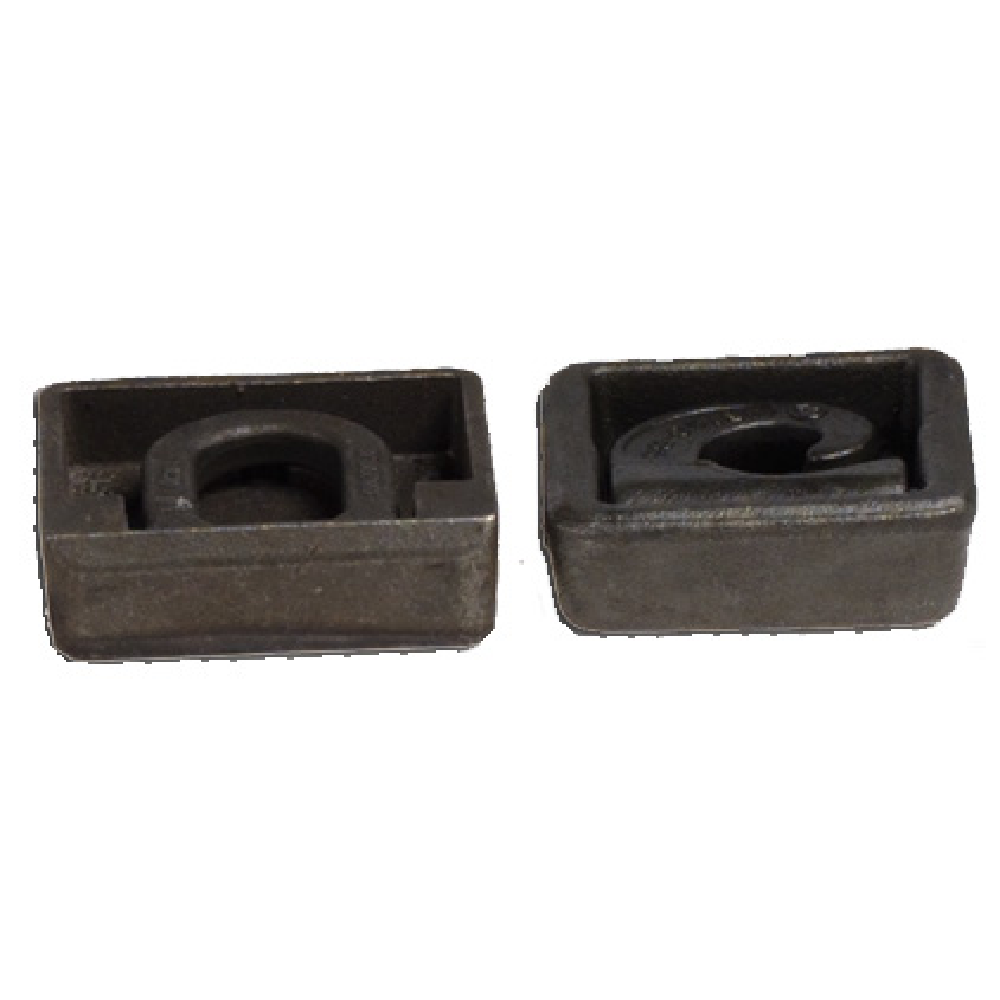

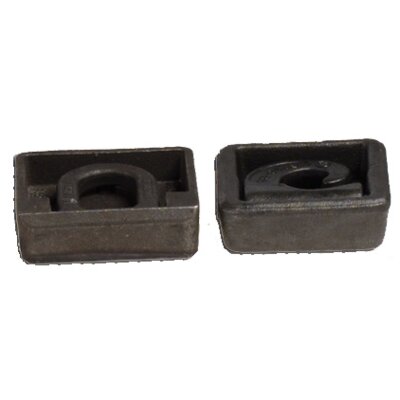

14.08780605 KG-80605 Foldable hook for fixed mounting in the edge profile, front profile or container wall. 49 5,000 1.2
14.0878061 KG-80610 Foldable ring for fixed mounting in the edge profile, front profile or container wall. Inner Ø: 40mm. 73,5 7,500 1.2

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
