Counterbalanced
General:
For small or medium-sized loads and moderate coil widths. See the introductory text above in the section on C-hooks.

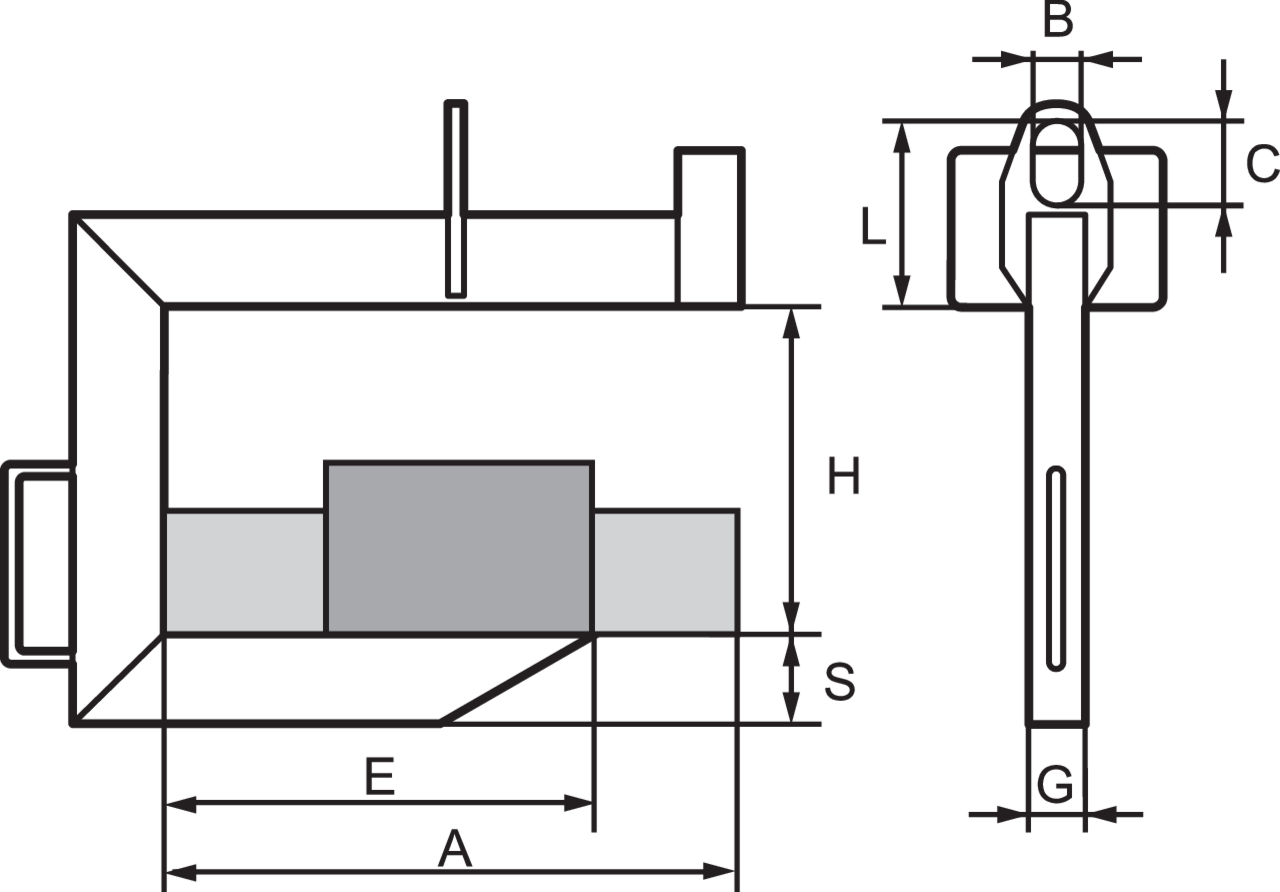

Design: Hollow beam that is lighter in weight than equivalent steel plate. The counterbalance ensures that the fork is always in a horizontal position, regardless of whether the hook is empty or loaded.

Proof: 1,5 x WLL.

  • Material: Hollow-beam of high-strength structural steel.
  • Marking: Type, working load limit, maximum coil width and CE marking.
  • Finish: Yellow painted.
  • Note: We recommend the use a of 2-leg chain sling, headroom permitting as an increase in dimension L provides better balance.
  • Safety factor: 1,5 x WLL.
