General: We have wire ropes available in the following standards - Swedish standard, British standard, European alternatively American standard.

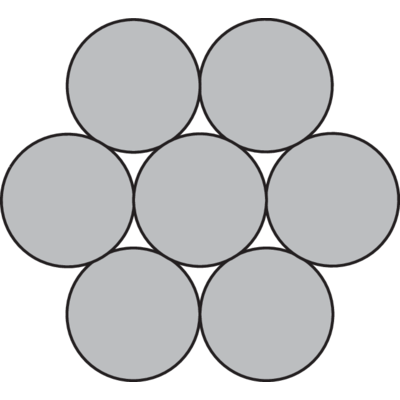

Design: The ropes consist of 7 wires (6 outer wires laid over a core wire). You can also get the ropes plastic-coated or or alternatively greased and plastic-coated. Plastic thickness are available from 0,75-2,5 mm (normally 1,5 mm). Generally the ropes are supplied in coils.
![1x7[225mm]](/pim/assortment/Steel%20wire%20ropes/General%20rope/image-thumb__1721__general-thumb/1x%207.png)

Currently this product cannot be added to an online quote. Please contact us directly for enquires.
SS 141757-07 och SS 213620
Rope Ø
|
Min breaking force
|
Min load*
|
Min limit extension
|
Nominal steel area
|
Nominal mass
|
|||||
mm
|
kN
|
kN
|
%
|
mm2
|
kg/100 m
|
|||||
9,6
|
102
|
90
|
3,5
|
55
|
43
|
|||||
11,3
|
139
|
122
|
3,5
|
75
|
59
|
|||||
12,9
|
186
|
163
|
3,5
|
100
|
79
|
|||||
15,7
|
232
|
233
|
3,5
|
150
|
118
|
|||||
* At 0,1% total extension. Low relaxation.
|
|
|
|
|
|
|||||
Other dimensions on request.
|
|
|
|
|
|
Coil Size
|
|
|
|
|||
B
|
D max
|
d
|
Mass
|
|||
mm
|
mm
|
mm
|
kg
|
|||
610
|
1370
|
760
|
1200-2200
|
|||
760
|
1370
|
910
|
1200-2200
|
|
||
610
|
1520
|
760
|
2800-3200
|
|
||
760
|
1520
|
910
|
2800-3200
|
|
* At 0,1% total extension. Low relaxation.
Other dimensions on request.
