• Material: Alloy steel grade 8.
  • Marking: Working load limit, code and colour marking regarding suitable round sling.
  • Finish: Painted.
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1.
  • Grade: 8
joker_e_2
Select a row from the table below, then click the add to quote button
Art No WLL
Ton

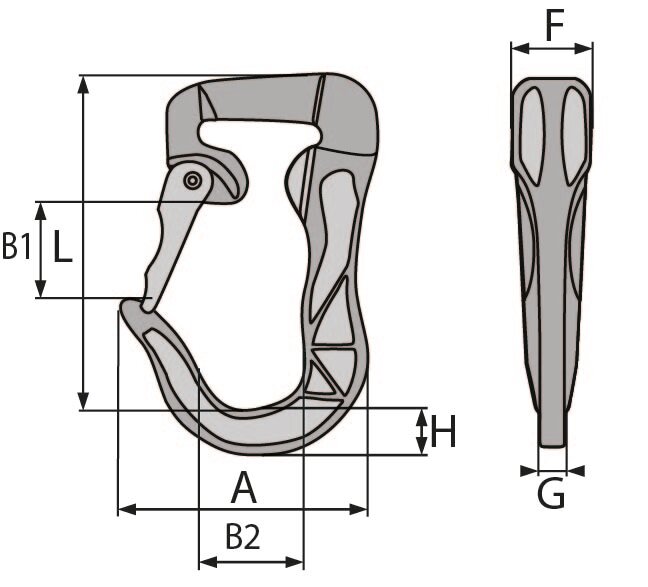

Colour A (mm) B1 (mm) B2 (mm) F (mm) G (mm) H (mm) L (mm) Weight
kg
CAD
11.10D049731 1 Violet 89 29 31 31 14 17 133 0.7
11.10D049732 2 Green 105 35 40 36 21 24 156 1.1
11.10D049733 3 Yellow 125 36 48 47 25 29 170 1.6
11.10D001240 6 Brown 155 48 60 60 35 35 215 4
11.10D062307 10 Orange 204 70 80 70 50 58 303 9.9
