General: Stainless steel Connex connecting link, drop-forged and stamped. It is resistant to seawater and ideally suited for use in water and wastewater applications.

  • Material: 1.4462 (AISI 318LN).
  • Marking: According to standard
  • Finish: Pickled and blasted.
  • Standard: EN 1677-1
  • Safety factor: 4:1.
  • Grade: 6
CWI-G6_2017

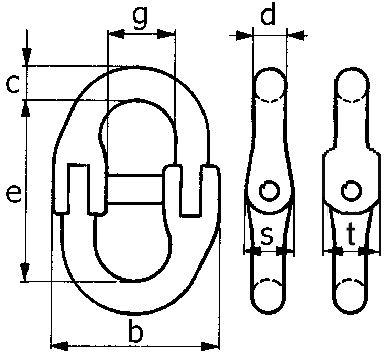

CWI Connex SS dwg
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
s (mm) e (mm) C
mm
t
mm
D
mm
B
mm
g Weight
kg
CAD
11.0992142 CWI 5-6 0.63 10 36 7 11 7 34 13 0.06
11.0974344 CWI 6-6 0.9 11 42 8 12 7 40 13 0.08
11.0992143 CWI 7-6 1.25 13 54 9 14 9 51 17 0.14
11.0974355 CWI 8-6 1.6 13 58 10 14 8,5 51 17 0.16
11.0992144 CWI 10-6 2.5 18 73 13 18 13 70 25 0.37
11.0992145 CWI 13-6 4.25 23 92 17 25 17 86 29 0.76
11.0992146 CWI 16-6 6.3 32 104 21 28 20 105 37 1.41
