Classic weld-on point without spring.

  • Pivots through 180°.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts are traceable to Test Certification.
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL.
  • Lugs designed to assist the welding process.
  • Material: Forged alloy steel, quenched and tempered.
  • Marking: According to standard, CE-marked, WLL
  • Standard: EN 1677-1
  • Note: Never apply load except in the same direction with the pivot direction.
  • Safety factor: 5:1 (WLL 1-8 ton), 4:1 (WLL 10-30 ton)
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
L
mm
W
mm
HV
mm
a
mm
Weight
kg

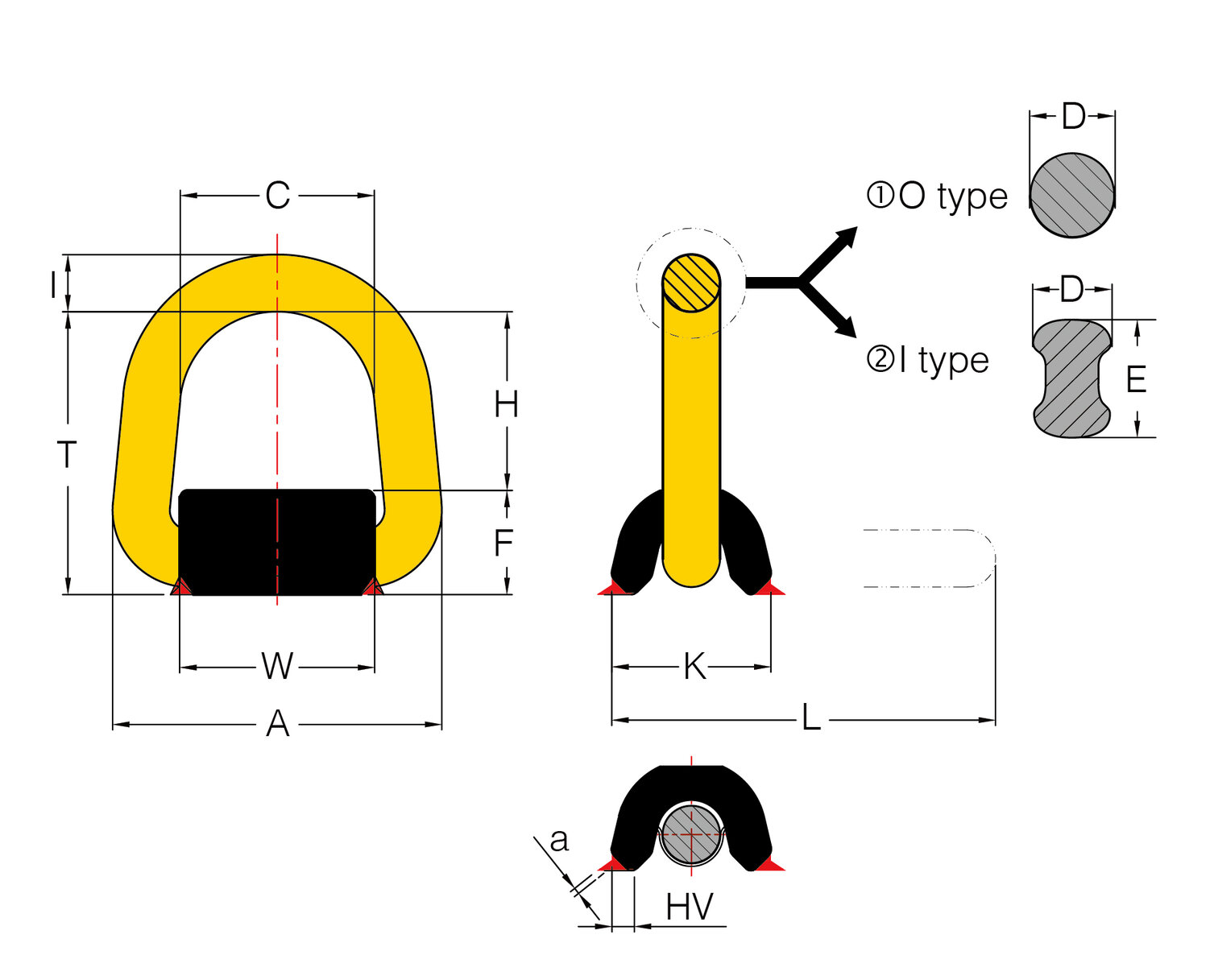

CAD
11.428-0573-20 20 186.5 93 100 25 37 180 70 110 37 234 91 20 4 6.5

Safety factor 5:1 for WLL 1, 3, 5 & 8
Safety factor 4:1 for WLL 10, 20 & 30

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
Kind of attachment Lifting Chart 1 Lifting Chart 2 Lifting Chart 3 Lifting Chart 4 Lifting Chart 5 Lifting Chart 6 Lifting Chart 7 Lifting Chart 8
Number of legs 1 2 1 2 2 2 2 3-4 3-4 3-4
Load direction 90° 90° 0-45° 45-60° Unsymm. 0-45° 45-60° Unsymm.
Code WLL (ton)
8-0573-01 1 2 1 2 1,4 1 1 2,1 1,5 1
8-0573-03 3 6 3 6 4,2 3 3 6,3 4,5 3
8-0573-05 5 10 5 10 7 5 5 10,5 7,5 5
8-0573-08 8 16 8 16 11,2 8 8 16,8 12 8
8-0573-10 10 20 10 20 14 10 10 21 15 10
8-0573-20 20 40 20 40 28 20 20 42 30 20
8-0573-30 30 60 30 60 42 30 30 63 45 30
