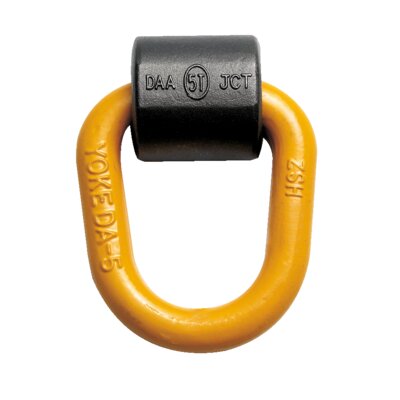

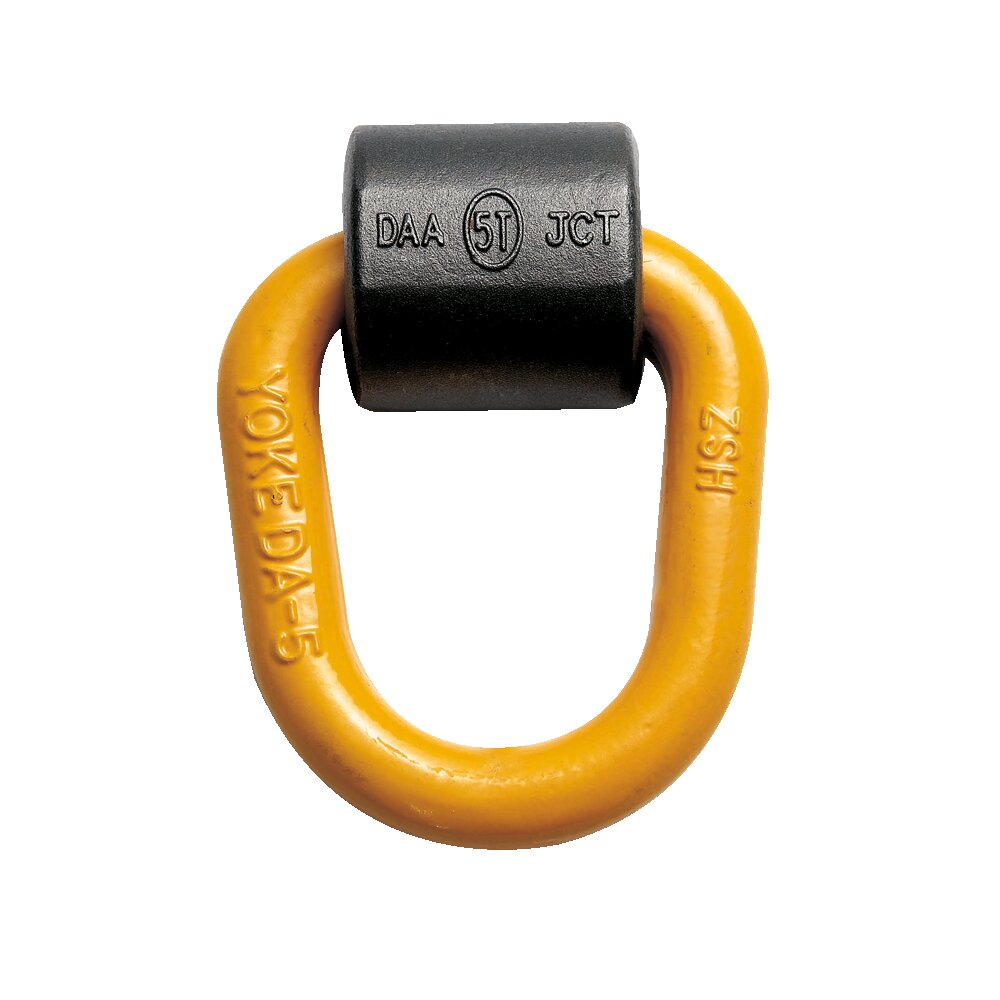

Classic weld-on point without spring.

  • Pivots through 180°.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts are traceable to Test Certification.
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL.
  • Lugs designed to assist the welding process.
  • Material: Forged alloy steel, quenched and tempered.
  • Marking: According to standard, CE-marked, WLL
  • Standard: EN 1677-1
  • Note: Never apply load except in the same direction with the pivot direction.
  • Safety factor: 5:1 (WLL 1-8 ton), 4:1 (WLL 10-30 ton)
Select a row from the table below, then click the add to quote button

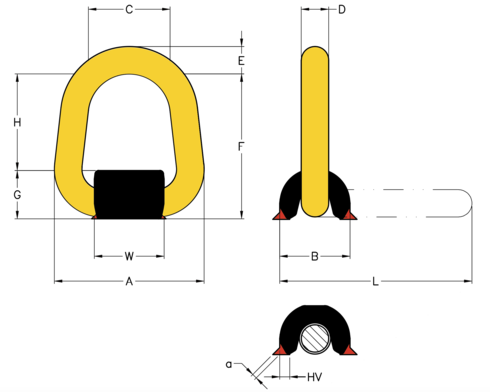

Part Code WLL
ton
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
L
mm
W
mm
HV
mm
a
mm
Weight
kg
11.428-0573-20 20 186,5 93 100 25 37 180 70 110 37 234 91 20 4 6,5

Safety factor 5:1 for WLL 1, 3, 5 & 8
Safety factor 4:1 for WLL 10, 20 & 30

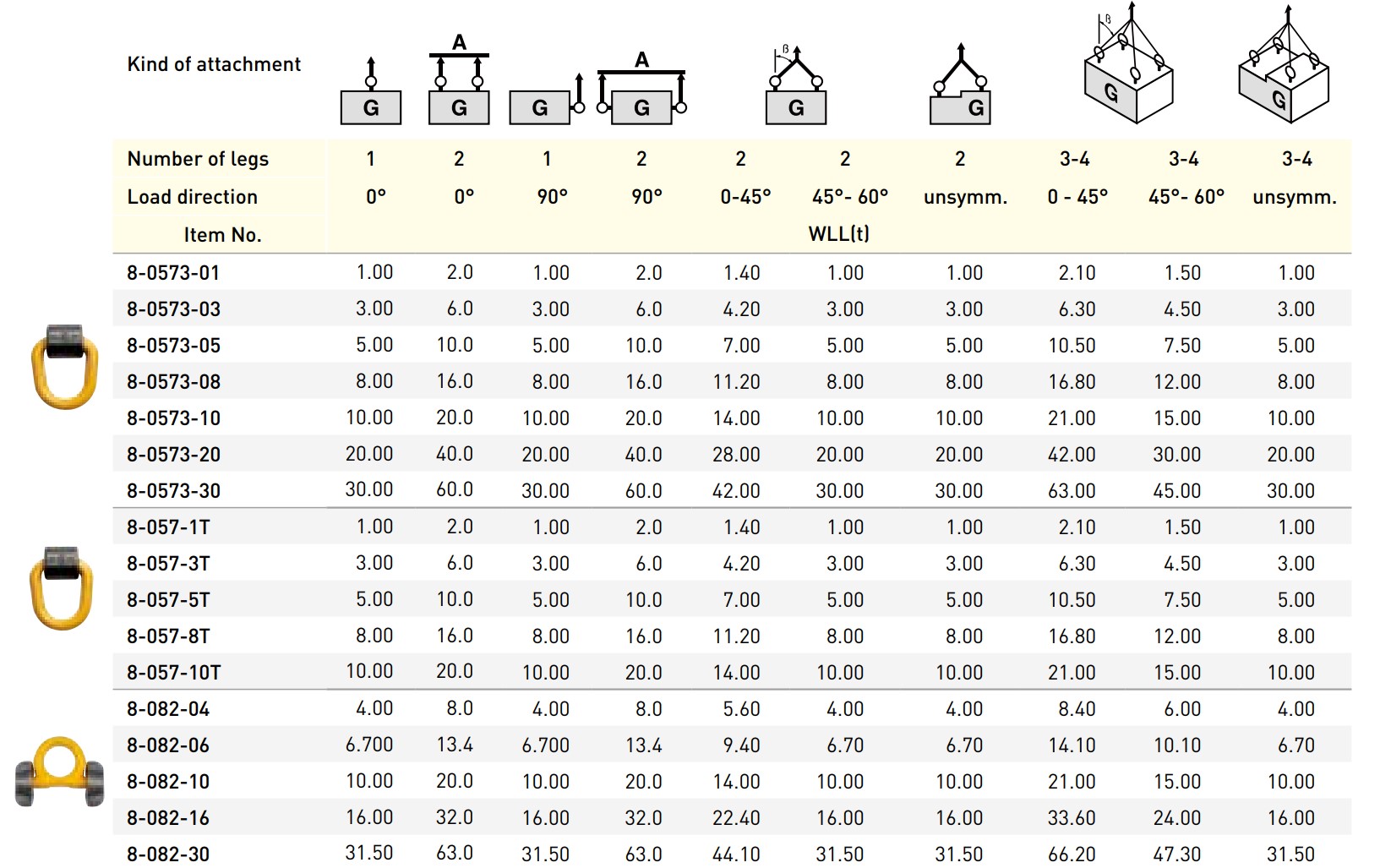

Kind of attachment Lifting Chart 1 Lifting Chart 2 Lifting Chart 3 Lifting Chart 4 Lifting Chart 5 Lifting Chart 6 Lifting Chart 7 Lifting Chart 8
Number of legs 1 2 1 2 2 2 2 3-4 3-4 3-4
Load direction 90° 90° 0-45° 45-60° Unsymm. 0-45° 45-60° Unsymm.
Code WLL (ton)
8-0573-01 1 2 1 2 1,4 1 1 2,1 1,5 1
8-0573-03 3 6 3 6 4,2 3 3 6,3 4,5 3
8-0573-05 5 10 5 10 7 5 5 10,5 7,5 5
8-0573-08 8 16 8 16 11,2 8 8 16,8 12 8
8-0573-10 10 20 10 20 14 10 10 21 15 10
8-0573-20 20 40 20 40 28 20 20 42 30 20
8-0573-30 30 60 30 60 42 30 30 63 45 30
