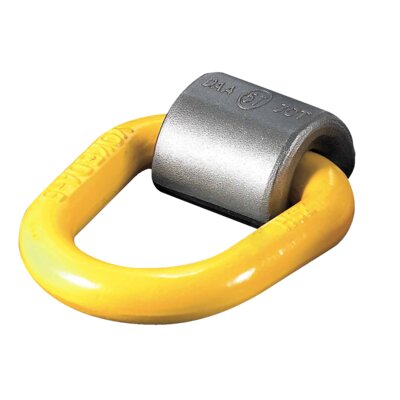

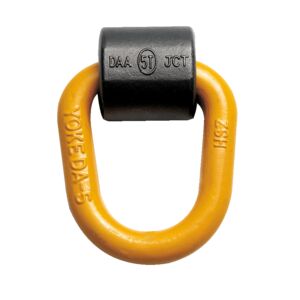

The eyes can be loaded with working load limit in all directions, pivots through 180°. Load rated parts are 100% magnaflux crack detected.
Individual forged parts are traceable to Test Certification.
Proof tested to 2.5 times the WLL, fatigue rated to 1.5 times the WLL.
A protected spring keeps the load ring in a required position. The parts are connected in such a way that they remain captive. The spring also reduces noise caused by vibration.
- Material: Manufactured from forged alloy steel, quenched and tempered.
- Marking: According to standard, CE-marked, WLL, size, steel quality, manufacturer ID and traceability.
- Standard: EN 1677-1





Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

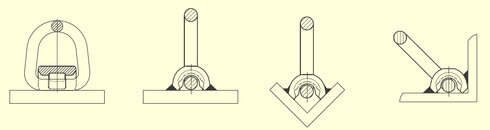

Kind of attachment | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
||
Number of legs | 1 | 2 | 1 | 2 | 2 | 2 | 2 | 3-4 | 3-4 | 3-4 |
Load direction | 0° | 0° | 90° | 90° | 0-45° | 45-60° | Unsymm. | 0-45° | 45-60° | Unsymm. |
8-057-1T | 1 | 2 | 1 | 2 | 1,4 | 1 | 1 | 2,1 | 1,5 | 1 |
8-057-3T | 3 | 6 | 3 | 6 | 4,2 | 3 | 3 | 6,3 | 4,5 | 3 |
8-057-5T | 5 | 10 | 5 | 10 | 7 | 5 | 5 | 10,5 | 7,5 | 5 |
8-057-8T | 8 | 16 | 8 | 16 | 11,2 | 8 | 8 | 16,8 | 12 | 8 |
8-057-10T | 10 | 20 | 10 | 20 | 14 | 10 | 10 | 21 | 15 | 10 |
