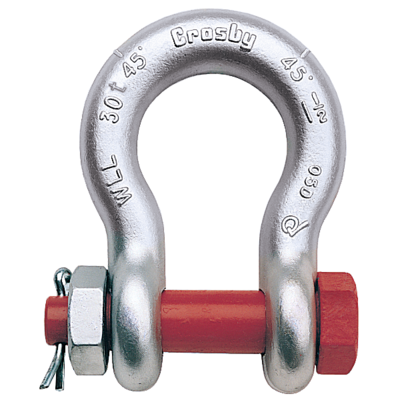

Home / Products / Sling components & lifting hardware / Lifting hardware / Shackles / Alloy Bolt Type Anchor Shackle Crosby G-2140

General: Shackle with bolt and nut. All sizes are individually proof loaded 2 x WLL.
Standard: US Fed. Spec. RR-C-271F/ approved according to DNV 2.7-1.
Safety Factor: 4,5:1 on sizes 2-21t, 5,4:1 on sizes 30-175t and 4:1 on sizes 200-400t.

Material: Alloy steel.
Marking: According to standard, CE-marked, WLL, batchnumber, serial number on sizes exceeding 200 tons, angle indicator 45°, RFID on all sizes.
Finish: Galvanized with painted bolt.
Standard: EN 13889
Note: Specially ordered shackles can be marked and supplied with documentation according to DNV and Lloyds, or other certifinting unit.

Grade: 8

Select a row from the table below, then click the add to quote button

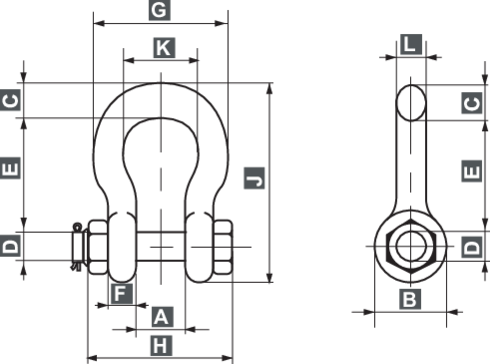

Part Code	Code	WLL ton	Tolerance E	Tolerance A	A mm	B mm	C mm	D +/- 0.5 mm	E mm	F mm	G mm	H mm	J mm	K mm	L mm	Weight kg
11.311021015	G2140-2	2	3,3	1,5	16,8	23,1	9,7	11,2	36,6	9,7	45,2	55,1	63,2	26,2	9,7	0.15
11.311021020	G2140-2,6	2.66	3,3	1,5	19,1	26,9	11,2	12,7	42,9	10,4	51,6	63,8	73,9	29,5	11,2	0.22
11.311021029	G2140-3,3	3.33	3,3	1,5	20,6	30,2	2,7	16,3	47,8	11,7	58,7	71,1	83,3	33,3	12,7	0.36
11.311021038	G2140-5	5	3,3	1,5	26,9	38,1	17,5	19,6	60,5	14,7	74,7	90,4	106,4	42,9	16,0	0.76
11.311021047	G2140-7	7	6,4	1,5	31,8	46,0	20,6	22,6	71,4	17,5	88,9	105,4	126,2	50,8	19,1	1.23
11.311021056	G2140-9,3	9.5	6,4	1,5	36,6	53,1	24,6	25,9	84,1	20,6	102,4	122,4	148,1	57,9	22,4	1.79
11.311021065	G2140-12,3	12.5	6,4	1,5	42,9	60,5	26,9	29,2	95,3	23,4	119,1	136,9	166,6	68,3	25,4	2.57
11.311021074	G2140-15	15	6,4	1,5	46,0	68,3	31,8	31,8	108,0	26,4	131,1	149,9	189,7	73,9	28,7	3.75
11.311021083	G2140-18	18	6,4	1,5	51,6	76,2	35,1	35,6	119,1	29,5	146,1	169,9	209,6	82,6	32,8	5.31
11.311021092	G2140-21	21	6,4	3,3	57,2	84,1	38,1	38,9	133,4	32,5	162,1	183,1	232,7	92,2	36,1	7.18
11.311021110	G2140-30	30	6,4	3,3	60,5	91,9	41,1	41,4	146	35,3	175	196	254	98,6	38,9	8.52
11.311021138	G2140-40	40	6,4	3,3	73,2	106	57,2	50,8	178	44,5	224	237	313	127	46,7	15.4
11.311021156	G2140-55	55	6,4	3,3	82,6	122	61,0	57,2	197	50,8	258	264	347	146	52,8	23.6
11.311021174	G2140-85	85	6,4	6,4	105	148	79,2	69,9	267	66,5	324	345	455	184	68,8	43.5
11.311021192	G2140-120	120	6,4	6,4	127	165	92,2	82,6	330	76,2	371	384	546	200	79,2	81
11.311021218	G2140-150*	150	6,4	6,4	133	203	111	95,3	372	95,3	432	448	632	229	91,9	120
11.311021236	G2140-175*	175	6,4	6,4	140	229	116	108	368	102	457	517	652	254	102	153
11.311021422	G2140-200**	200	6,35	6,35	184	267	127	121	386	116	529	611	706	279	121	209
11.311021442	G2140-250**	250	1,8	4	216	305	143	127	470	123	600	632	828	330	127	276
11.311021460	G2140-300**	300	1,8	4	213	330	154	152	475	124	629	666	871	330	149	362
11.311021478	G2140-400*	400	6,4	6,4	210	356	184	178	572	165	660	728	1,022	330	152	500

*Bolt head with eye.**Bolt replaced with Easylocksystem.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
