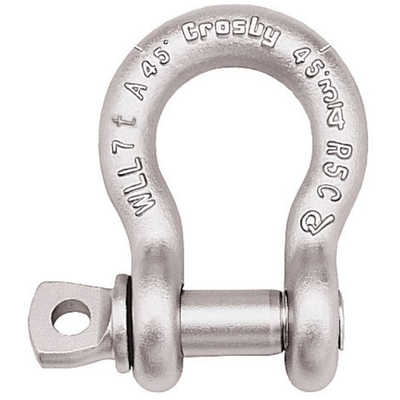

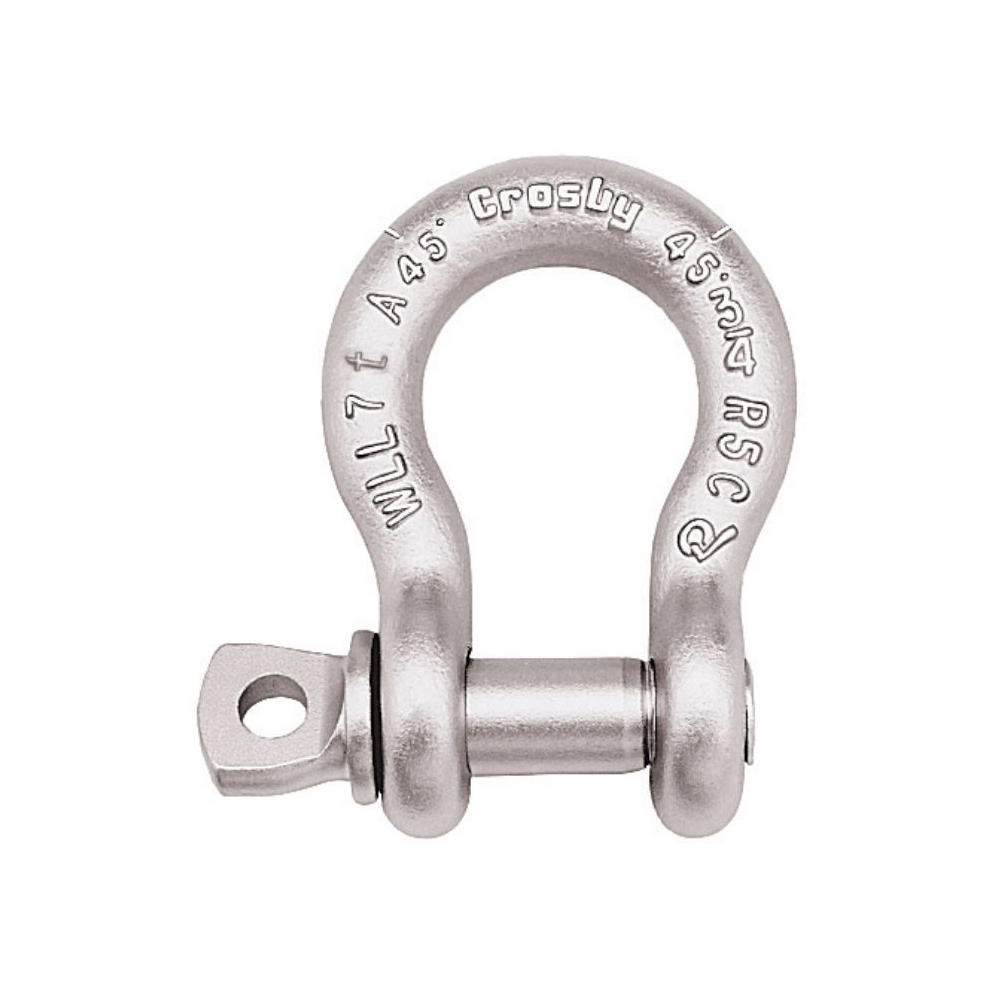

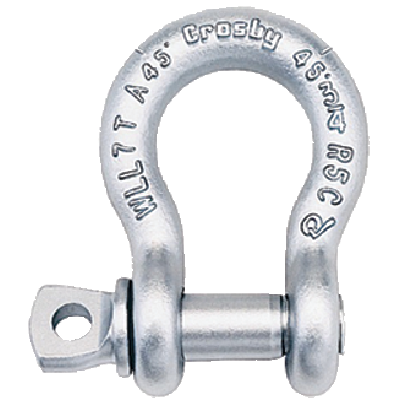

Alloy Screw Pin Shackle Crosby G-209A

Design: Screw pin shackles meet the performance requirements of Federal Specification RR-C-271G, Type IVA, Grade B, Class 2, except for those provisions required of the contractor.

  • Material: Forged Alloy Steel – Quenched and Tempered, with alloy pins.
  • Marking: According to standard, CE-marked, WLL.
  • Temperature range: -40° C to 204° C
  • Finish: Hot Dip Galvanized.
  • Standard: EN 13889
  • Note: Maximum Proof Load is 2 times the Working Load Limit.
  • Safety factor: 4,5:1
  • Grade: 8
