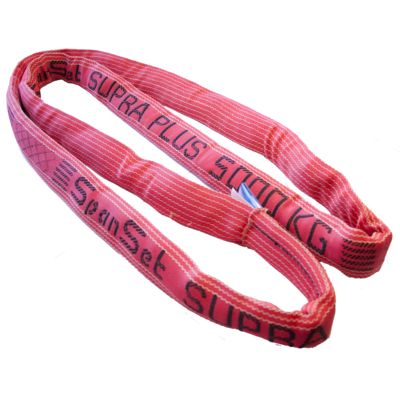

Design: Load carrying yarn covered with “seamless” color coded protection sleeve. Supra Plus and Magnum have an extra strong protection sleeve. As well as a blue label the Supra plus is provided with a RFID chip for identification.


Stretch with working load: 2-3%.

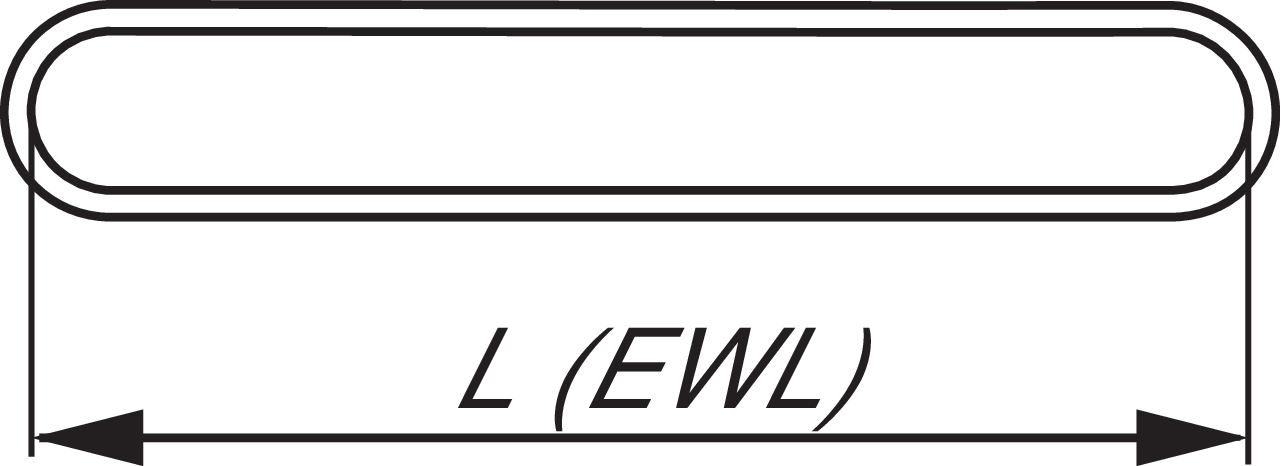

Length tolerance: Nominal length (EWL) ±2%.

  • Material: Polyester. Resistant to most acids but not strong alkalizes.
  • Marking: The slings are provided provided with a RFID chip for identification and a blue label with manufacturer’s symbol, working load limit (WLL), length, CE marking and a label with handling instr
  • Temperature range:  app. -40° - +100°C.
  • Standard: EN 1492-2
  • Safety factor: 7:1.
2993_staffan_225mm_4
Length-ewl_e_225mm_2
Select a row from the table below, then click the add to quote button
Part Code WLL
Ton
Type Colour WLL choke hitch (ton) WLL basket hitch 0º (ton) WLL basket hitch 0º-45º (ton) WLL basket hitch 45º-60º (ton) CAD
SP01 1 Supra Plus violet 0,8 2 1,4 1
SP02 2 Supra Plus green 1,6 4 2,8 2
SP03 3 Supra Plus yellow 2,4 6 4,2 3
SP04 4 Supra Plus grey 3,2 8 5,6 4
SP05 5 Supra Plus red 4 10 7 5
SP06 6 Supra Plus brown 4,8 12 8,4 6
SP08 8 Supra Plus blue 6,4 16 11,2 8
MG10 10 Magnum orange 8 20 14 10
MG15 15 Magnum orange 12 30 21 15
MG20 20 Magnum orange 16 40 28 20
MG25 25 Magnum orange 20 50 35 25
MG30 30 Magnum orange 24 60 42 30
MG40 40 Magnum orange 32 80 56 40
MG50 50 Magnum orange 40 100 70 50
MG60 60 Magnum orange 48 120 84 60
MG80 80 Magnum orange 64 160 112 80
MG100 100 Magnum orange 80 200 140 100
Other dimensions, WLL and special length on request.
