General: For lifting and transportation of steel beams, profiles and structures where the load must stay in position. The special shape of the lifting shackle, places the centre of the gravity of the beam to be lifted directly beneath the lifting shackle. This maintains the equilibrium of the beam once it has been lifted and keeps the flanges of the vertical so that the beam can easily be stacked or positioned. Especially recommended for transportation and stacking of steelbeams (e.g. when sawing of steelbeams, stacking of steelbeams and building of steel contructions).

  • Marking: Working load limit, jaw capacity and CE-marking.
  • Finish: Yellow painted.
  • Note: The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37 HRC (345 HB, 1166 N/mm
  • Safety factor: 5:1
FBK_HR
FBK_m
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton

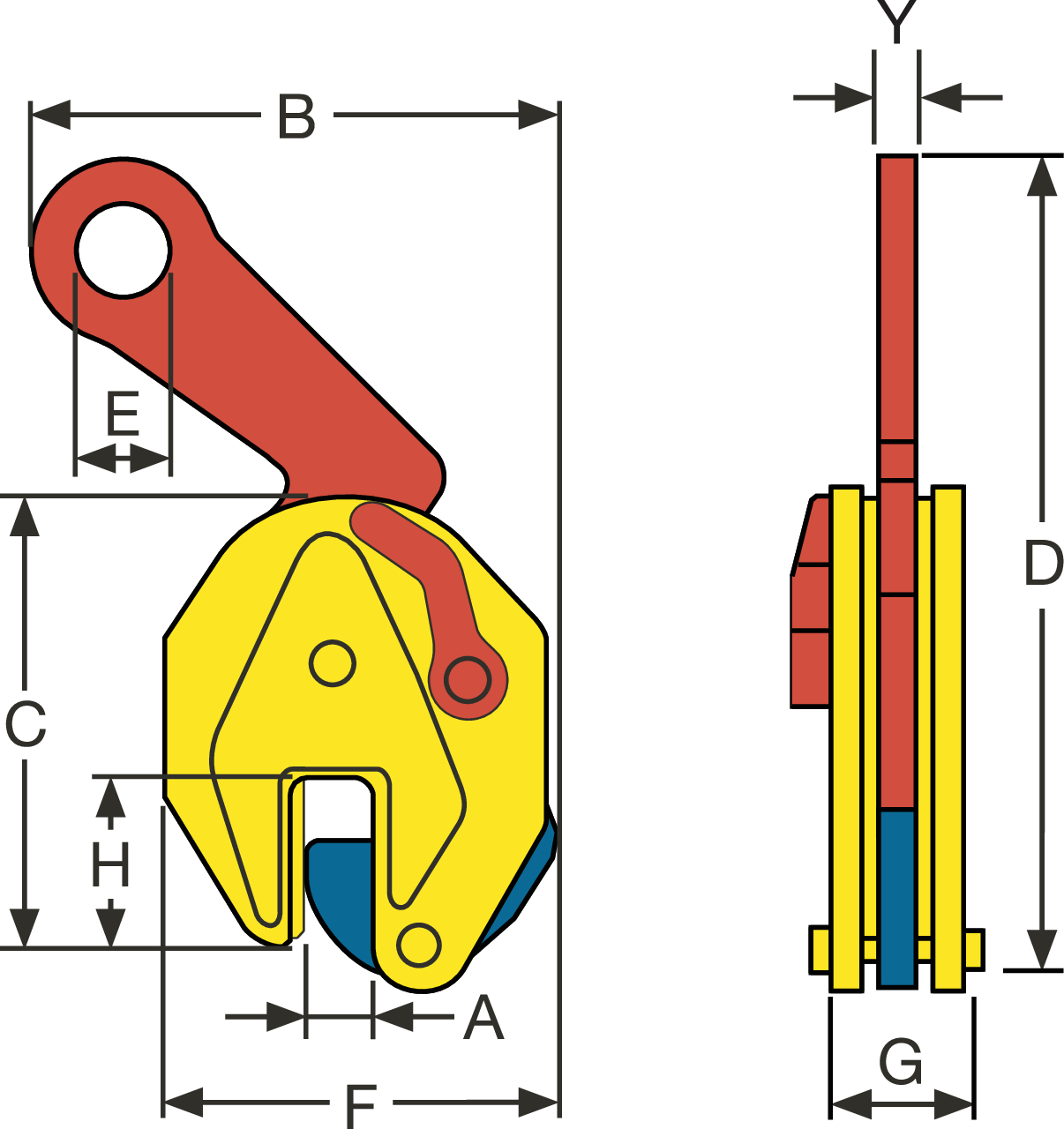

Y (mm) Jaw capacity (A) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Weight
kg
CAD
06.15FBK0100 1 FBK 1 15 0-15 175 148 226 35 130 35 47 3
06.15FBK0150 1.5 FBK 1.5 16 0-20 265 200 345 60 165 56 64 8
06.15FBK0300 3 FBK 3 30 0-25 325 235 410 72 192 77 65 16
