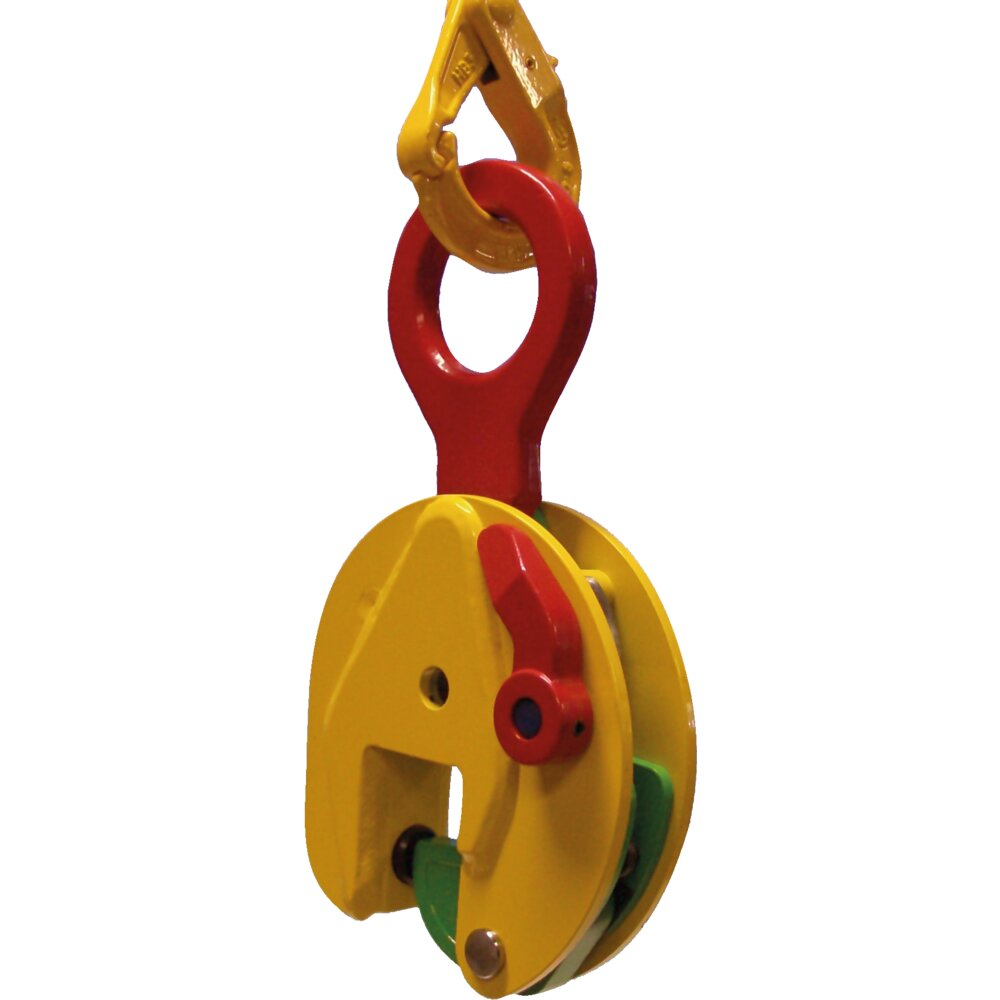

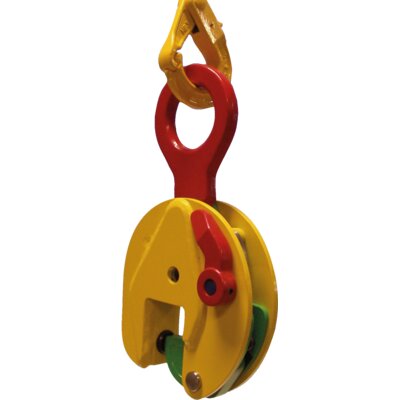

Vertical Hardox lifting clamps - TS(U)-H / TSE(U)-H / TSMP-H

Terrier

Standard clamps equipped with an extra hardened pivot and cam for Hardox lifting and transporting steel plates with a hardnes of max. 50 HRC. (for Hardox 400 and 500). Can be delivered as TS, TSU, TSE, TSEU, and TS(E)MP models. Please ask for special specifications. Other capacity and jaw-opening on request.

Features:

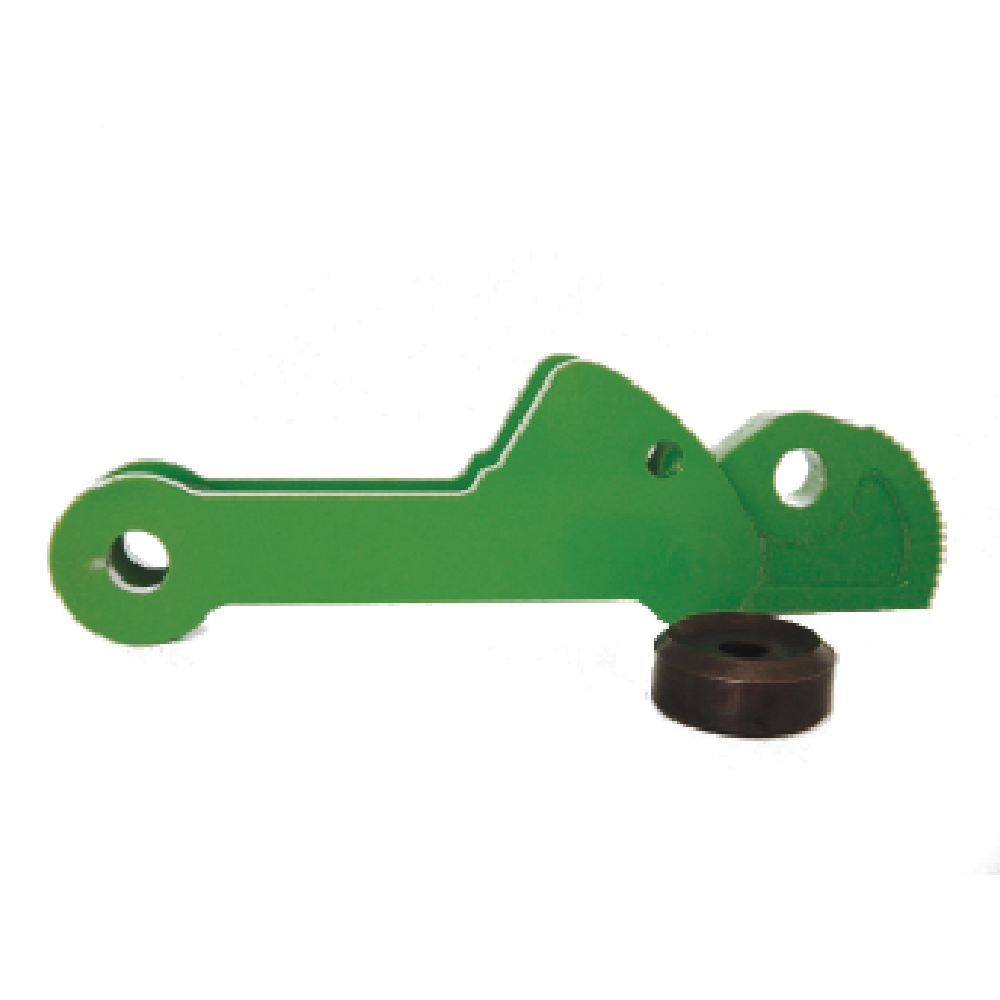

  • Equipped with an extra hardened pivot and cam.
  • Cam is coloured green for easy identification.
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
  • Clamp is locked in closed as well as open position.
  • Lightweight design for easy handling.
  • Tough quality heavy duty welded shell body.
  • Maintenance-friendly, easy to exchange parts which are available upon request.



  • Marking: According to standard, CE-marked, Type, serial number, WLL, Jaw opening.
  • Temperature range: - 40°C to +100°C.
  • Standard: EN 13155
  • Note: Hardness level of the material surface may not exceed 50 HRC.
  • Warning: Min. load is 10% of WLL.
Vertical Hardox lifting clamps - TS(U)-H / TSE(U)-H / TSMP-H
TS-H/TSMP-H/TSU-H [new]
TS-H/TSMP-H/TSU-H [new]
Select a row from the table below, then click the add to quote button

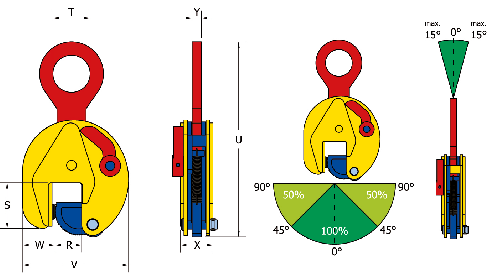

Part Code Code WLL
ton		 Jaw opening
mm		 S
mm		 T
mm		 U
mm		 V
mm		 W
mm		 X
mm		 Y
mm		 Weight
kg		 CAD
16.01850000.5 0.75 TS-H 0.75 0-13 47 30 202 100 37 37 10 1.7
16.01850010.5 0.75 TSMP-H 0.75 0-13 47 30 307 100 37 37 10 2
16.01855000.5 0.75 TSU-H 0.75 0-13 47 30 203 100 37 37 10 1.8
16.01850880.5 1 TSE-H 1 0-25 56 45 263 141 37 47 15 3.5
16.01850818.5 1 TSEMP-H 1 0-25 56 45 403 141 37 47 15 4.5
16.01865800.5 1 TSEU-H 1 0-25 56 50 292 141 37 47 15 3.5
16.01850901.5 2 TSE-H 2 0-35 78 64 336 183 56 56 16 7
16.01850911.5 2 TSEMP-H 2 0-35 78 64 516 183 56 56 16 8
16.01855601.5 2 TSEU-H 2 0-35 78 70 372 183 56 56 16 8
16.01850331.5 3 TSE-H 3 0-35 78 64 336 183 56 56 16 7
16.01865331.5 3 TSEU-H 3 0-35 78 70 372 183 56 16 8 8
16.01850451.5 4.5 TSE-H 4.5 0-45 85 70 425 228 60 78 16 16
16.01851401.5 4.5 TSEMP-H 4.5 0-45 85 70 650 228 60 78 20 19
16.01865301.5 4.5 TSEU-H 4.5 0-45 85 70 431 228 60 78 20 16.5
16.01851411.5 6 TSE-H 6 0-50 114 75 490 259 82 78 20 21
16.01850311.5 6 TSMP-H 6 0-32 114 75 760 225 78 78 20 24
16.01865411.5 6 TSU-H 6 0-50 114 78 527 259 82 78 32 24
16.01851501.5 7.5 TSE-H 7.5 0-55 111 75 522 267 70 86 20 26
16.01851510.5 7.5 TSEMP-H 7.5 0-55 111 75 792 267 70 86 20 30.5
16.01855400.5 7.5 TSEU-H 7.5 0-55 111 78 560 259 70 86 32 28

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
