Vertical lifting Clamp TS-R

Terrier

Clamp for vertical lifting and transporting of stainless steel plates and structures. Pivot and cam are made of stainless steel. Body and lock lever are nickel plated to prevent corrosion due to carbon contamination.

Features:

  • Pivot and cam are made of stainless steel
  • Body and lock lever are nickel plated to prevent corrosion due to carbon
  • contamination
  • TSU-R / TSEU-R come with articulated lifting shackle for universal lifting flexibility at various angles
  • TS-R / TSE-R come with standard lifting shackle
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when
  • lifting force is applied and when load is being lowered
  • Clamp is locked in closed as well as open position
  • Lightweight design for easy handling
  • Tough quality heavy duty welded shell body
  • Maintenance-friendly, easy to exchange parts which are available upon request
  • Marking: According to standard, CE-marked, Type, serial number, WLL, Jaw opening.
  • Finish: Nickel plated.
  • Standard: EN 13155
  • Note: Hardness level of the material surface may not exceed HRC 30.
  • Warning: Min. load is 10% of max. WLL.

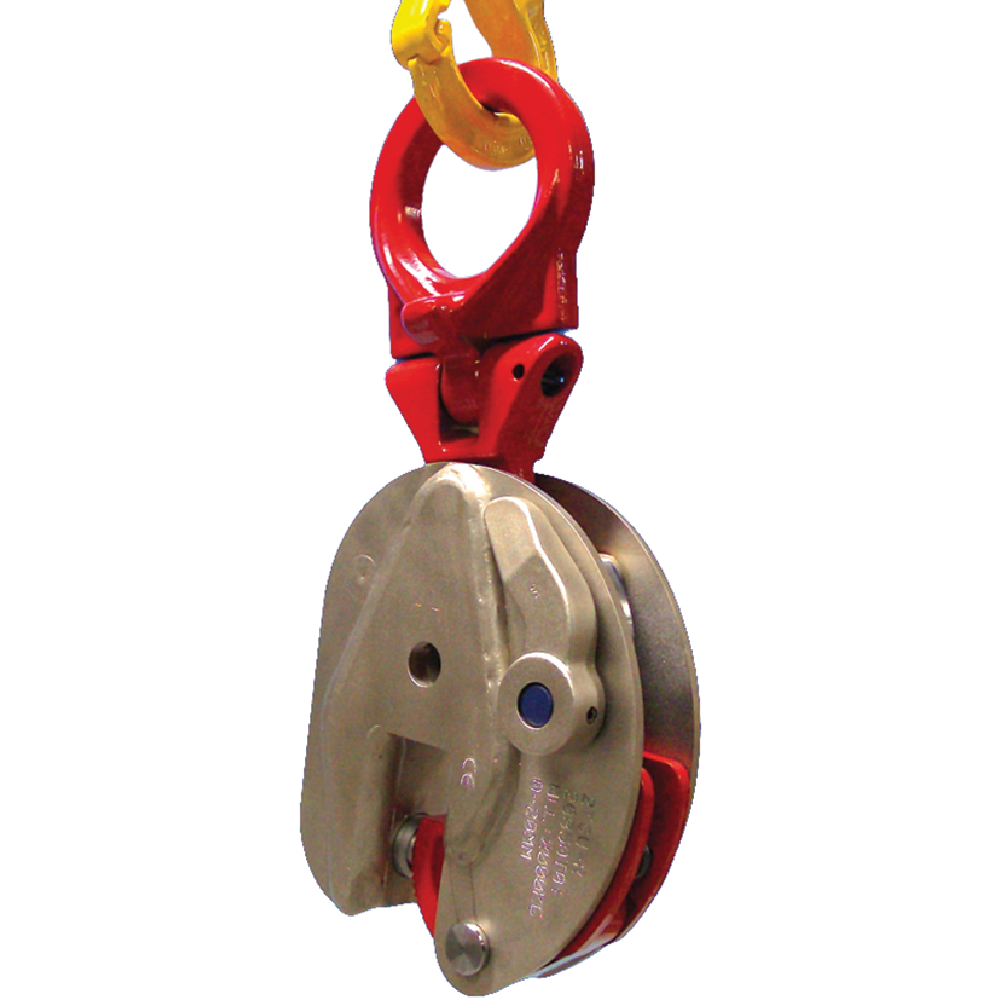

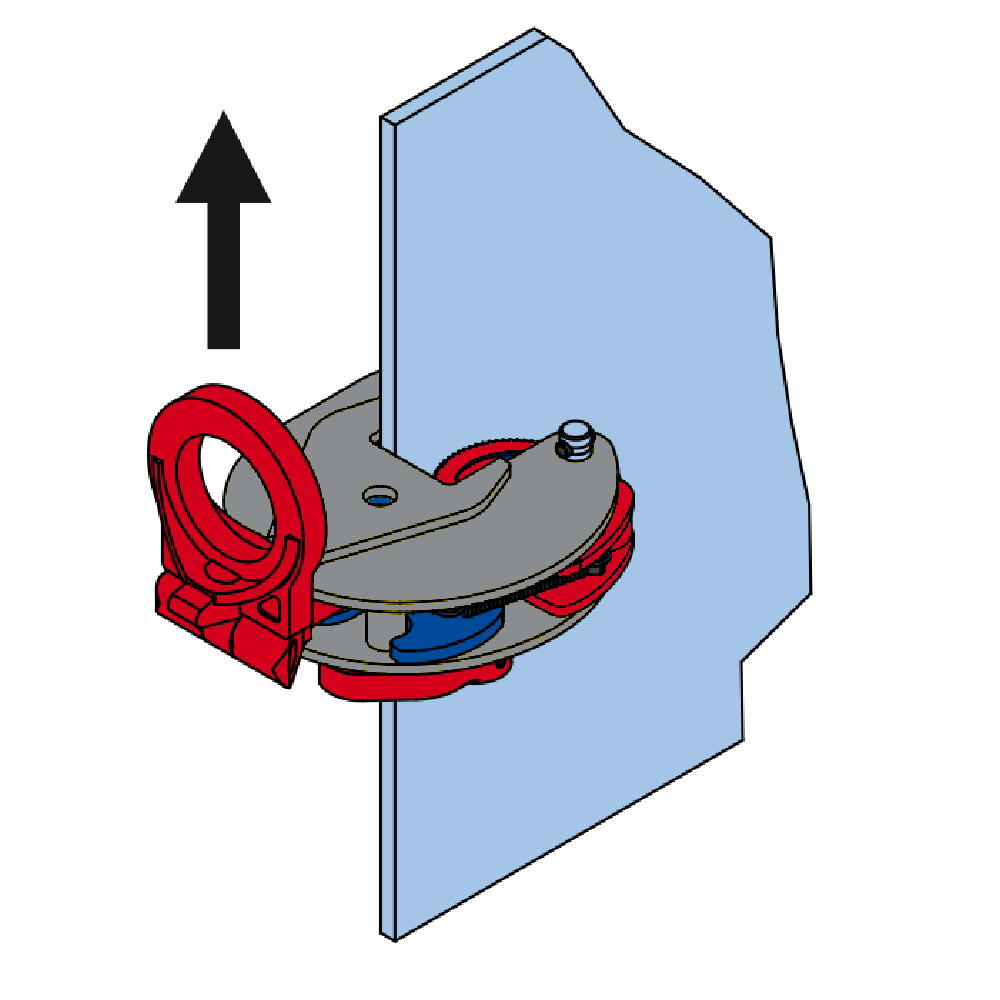

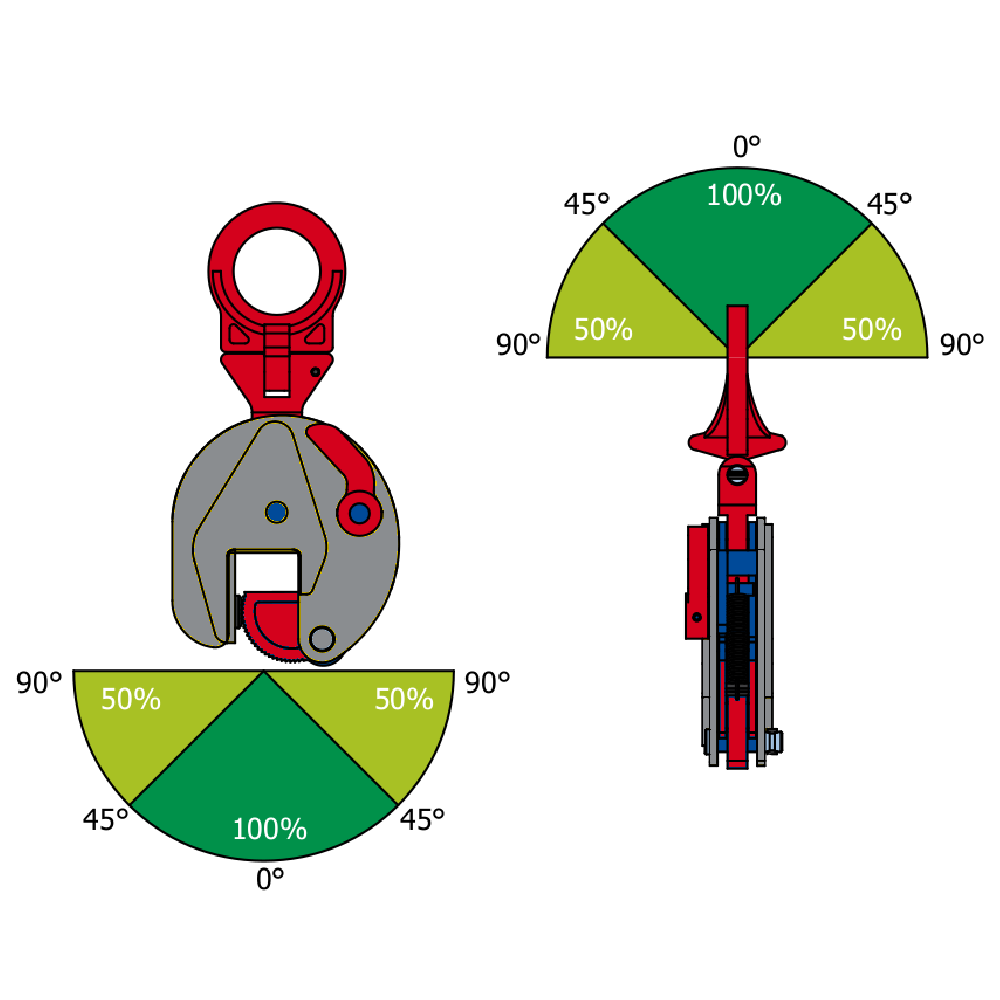

TSU-R illu Vertical lifting Clamp TS-R
Vertical lifting Clamp TS-R
Vertical lifting Clamp TS-R

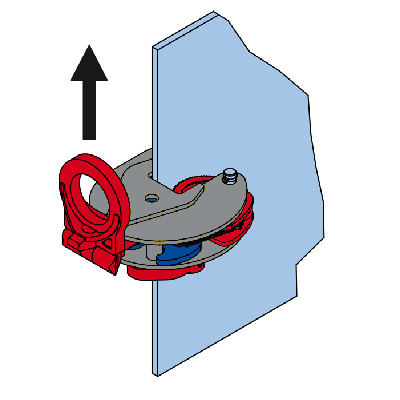

TSU-R illu

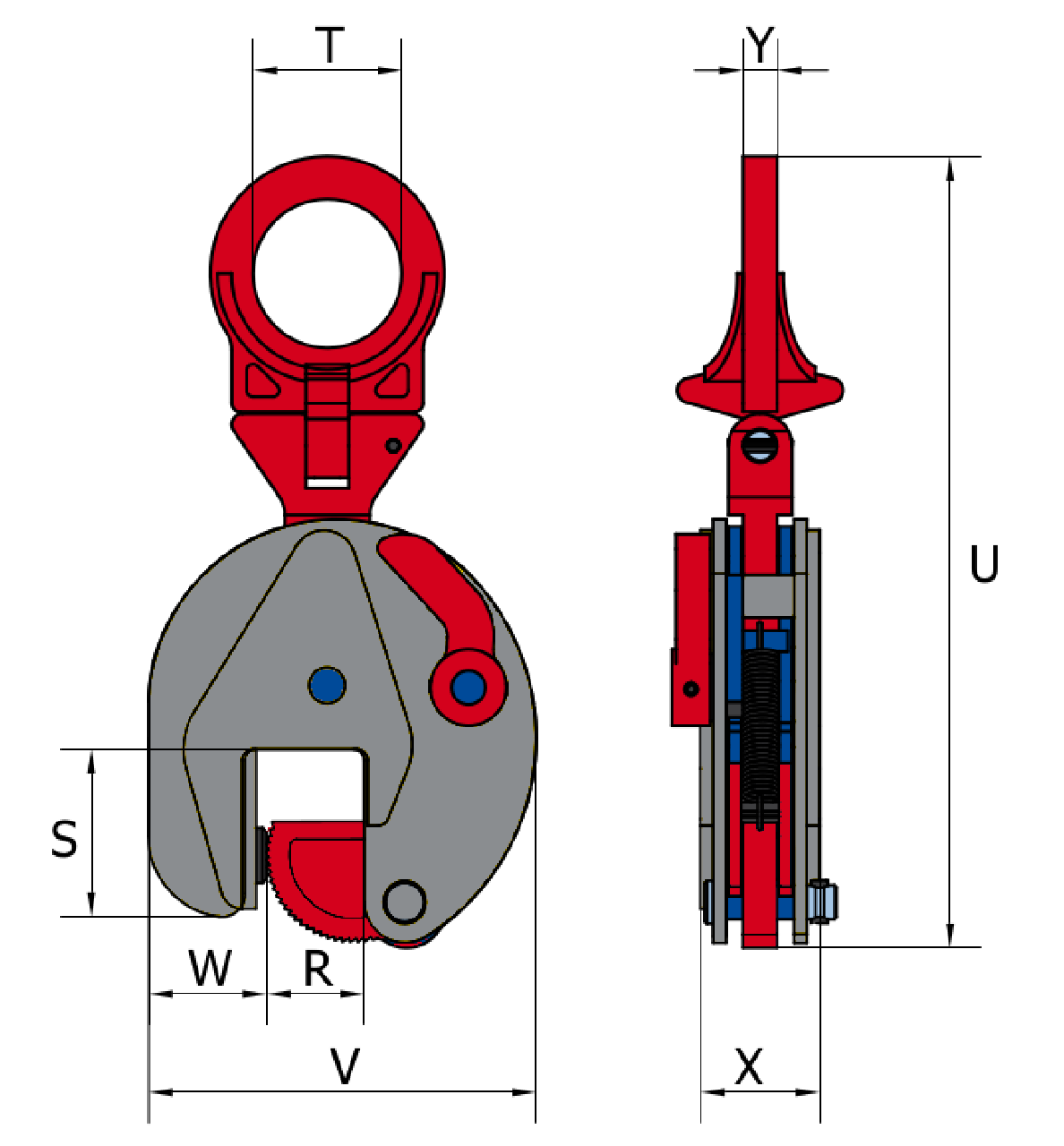

Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton		 Jaw opening
mm		 S
mm		 T
mm		 U
mm		 V
mm		 W
mm		 X
mm		 Y
mm		 Weight
kg		 CAD
16.01861075 0.75 TS-R 0.75 0-13 47 30 202 100 37 37 10 1.7
16.01862075 0.75 TSU-R 0.75 0-13 47 30 203 100 37 37 10 1.8
16.01861100 1 TSE-R 1 0-25 56 45 263 141 37 47 15 3.5
16.01862100 1 TSEU-R 1 0-25 56 50 292 141 37 47 15 3.8
16.01861200 2 TSE-R 2 0-35 78 64 336 183 56 56 16 7
16.01862201 2 TSEU-R 2 0-35 78 70 372 183 56 56 16 8
16.01861300 3 TSE-R 3 0-35 78 64 336 183 56 56 16 7
16.01862300 3 TSEU-R 3 0-35 78 70 372 183 56 56 16 8
16.01862450 4,5 TSEU-R 4.5 0-45 85 70 431 228 60 78 20 16.5
16.01861450 4.5 TSE-R 4.5 0-45 85 70 425 228 60 78 20 16
16.01861600 6 TSE-R 6 0-50 114 75 490 259 82 78 20 21
16.01862650 6 TSEU-R 6 0-50 114 78 527 259 82 78 32 24
16.01862750 7,5 TSEU-R 7.5 0-55 114 78 560 267 70 86 32 28
16.01861750 7.5 TSE-R 7.5 0-55 111 75 522 267 70 86 20 26

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
