General: Plain trolley with capacity from 0,125 tons up to 5 tons. The standard trolley includes rubber bumper, safety lug and suspender.
  • Material: Pressed steel plate.

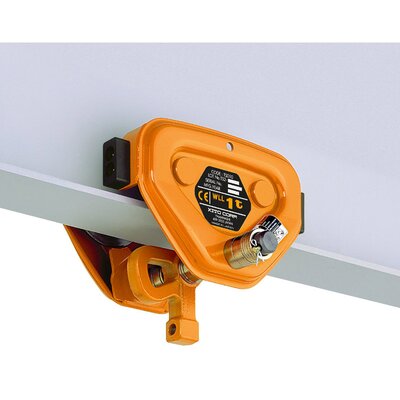

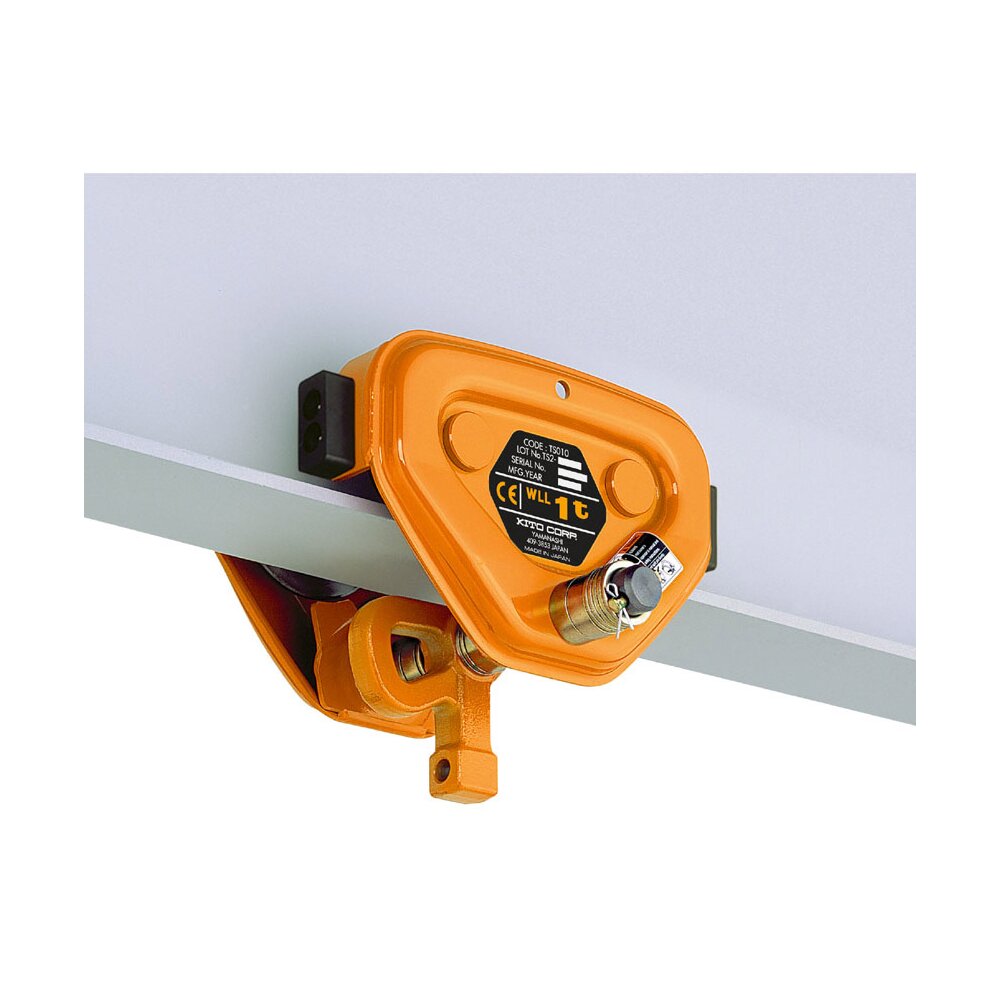

Plain Trolley TSP 0,125-3t

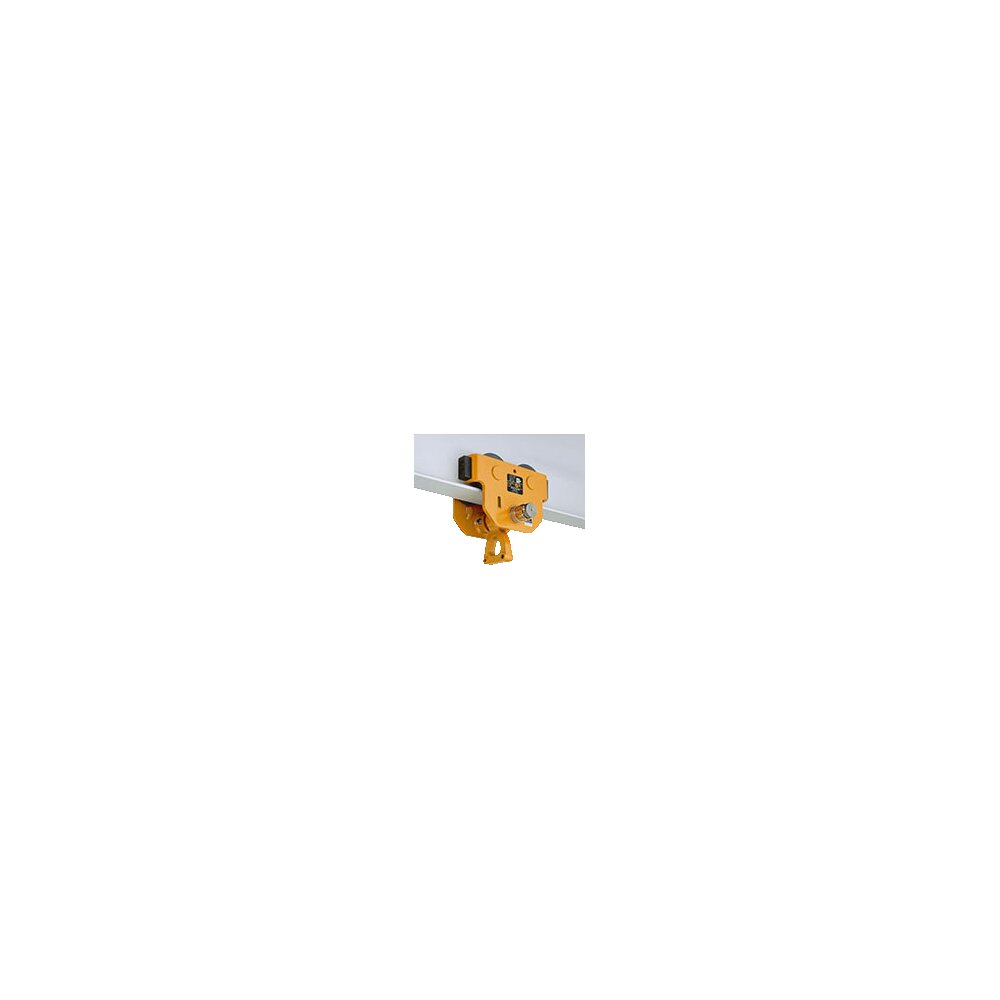

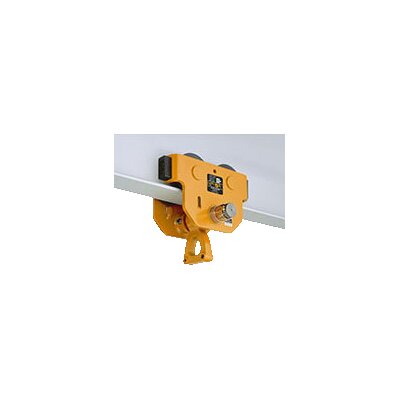

Plain Trolley TSP 5t
Select a row from the table below, then click the add to quote button
Art No Standard Art No W30 I beam width range standard I beam width range W30 CAD
0.125 16.05TSP001SC 16.05TSP0012C 50-163 164-305
0.25 16.05TSP003SC 16.05TSP0032C 50-163 164-305
0.5 16.05TSP005SC 16.05TSP0052C 50-163 164-305
1 16.05TSP010SC 16.05TSP0102C 58-163 164-305
1.5 16.05TSP015SC 16.05TSP0152C 82-204 205-305
2 16.05TSP020SC 16.05TSP0202C 82-204 205-305
2.5 16.05TSP025SC 16.05TSP0252C 82-204 205-305
3 16.05TSP030SC 16.05TSP0302C 82-204 205-305
5 16.05TSP050SC 16.05TSP0502C 100-204 205-305

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
