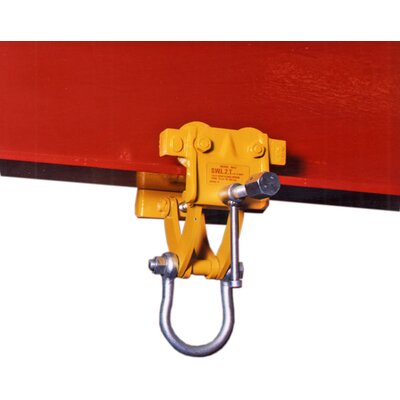

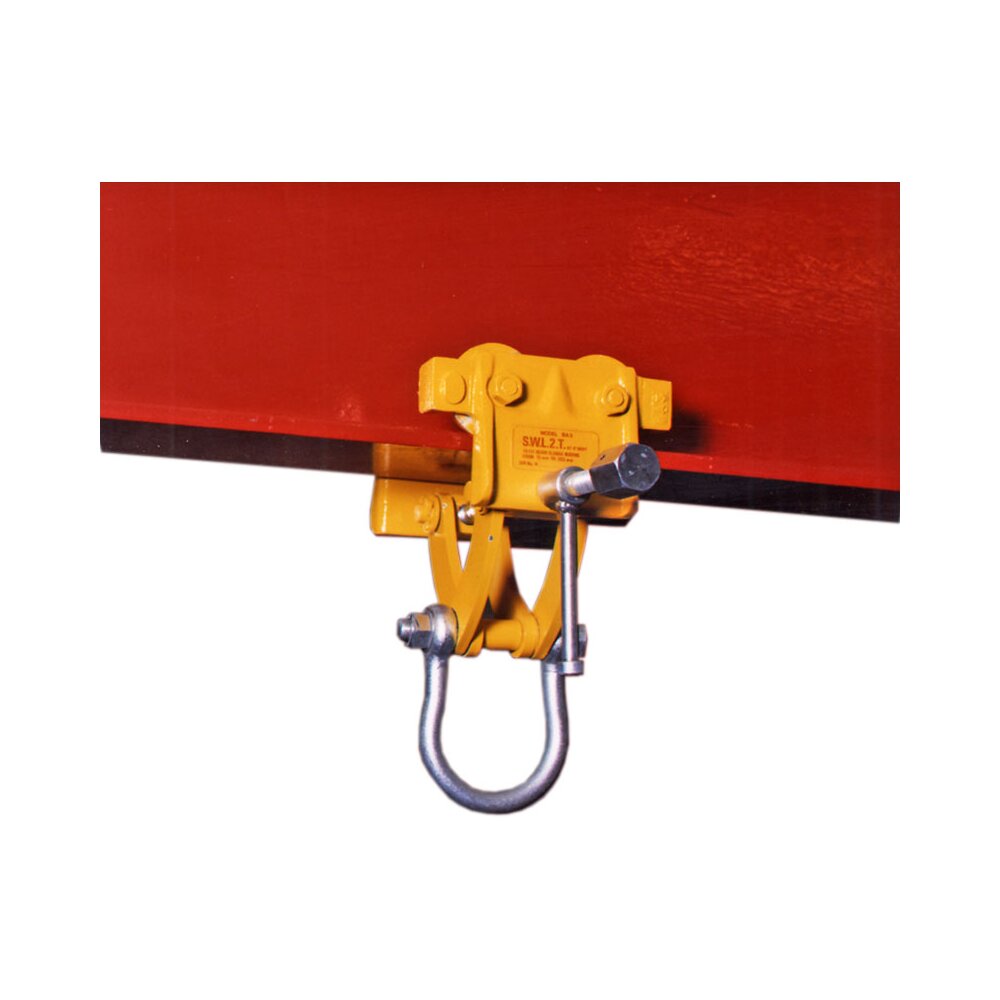

A lightweight handpushed runway beam trolley. Fitted with a width adjustment locking mechanism and wheelguarding anti-drop plates. Developed for lighter industrial application and are excellent for application in small garages and hobbyist workshops.
Proof load: 2 x WLL.

  • Finish: Yellow painted.
  • Note: All WLL apply to vertical lifting only.
  • Safety factor: 5:1.
Select a row from the table below, then click the add to quote button

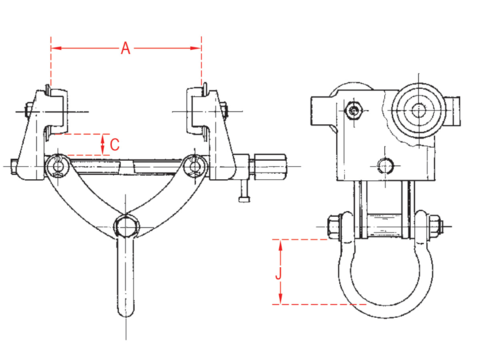

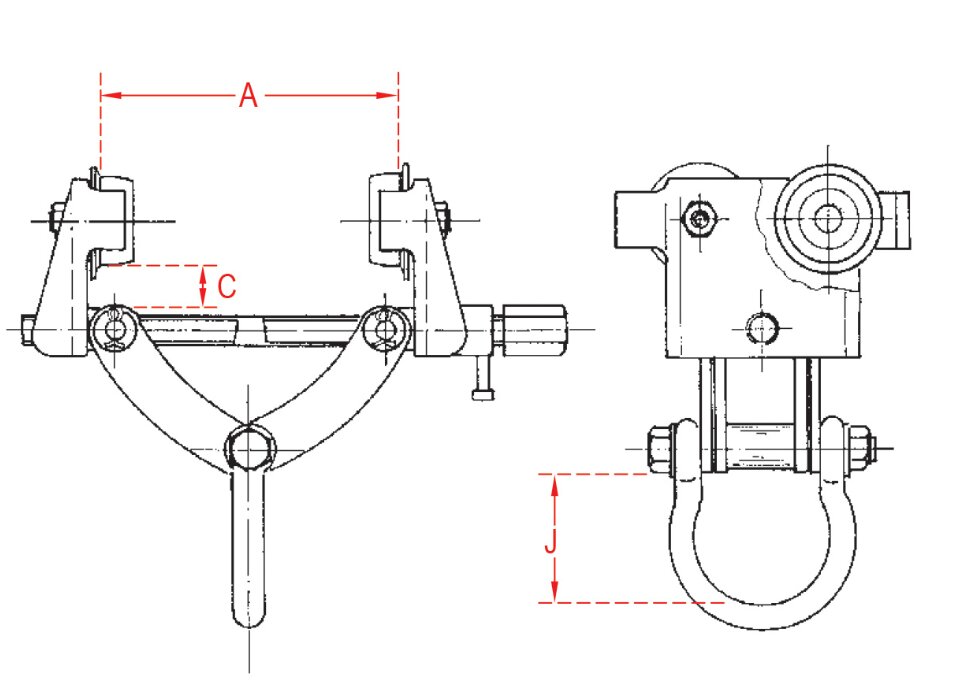

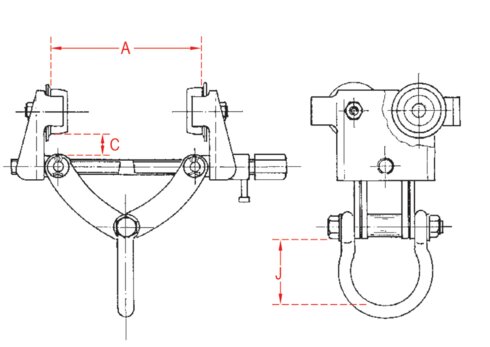

Part Code Code WLL
ton
Beam width
mm
B
mm
T
mm
Weight
kg
16.056140BA1 BA1 1 62-203 25,4 89 6,5
16.056140BA2 BA2 1,5 76-203 25,4 89 7
16.056140BA3 BA3 2 76-203 25,4 89 7
