Kito
General: Geared trolley with capacity from 0,125 tons up to 5 tons. The standard trolley includes rubber bumper, safety lug and suspender.

  • Material: Pressed steel plate.

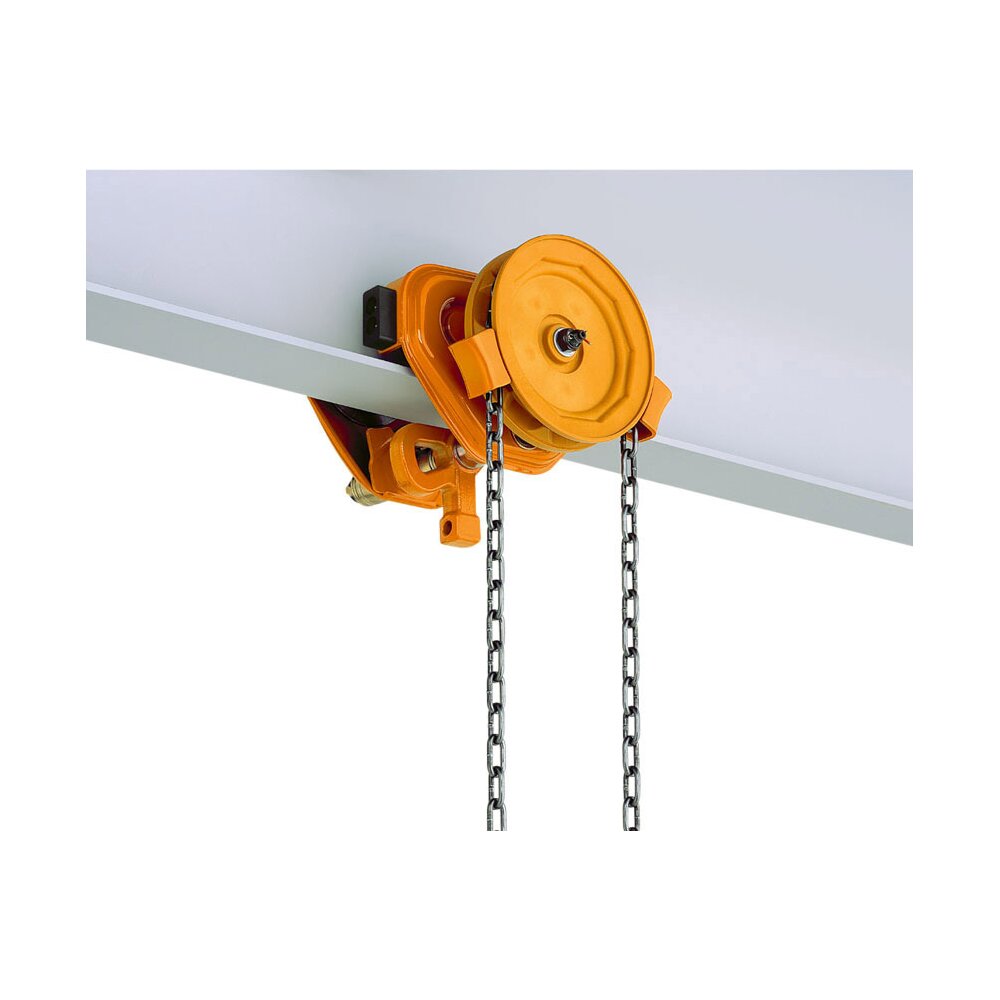

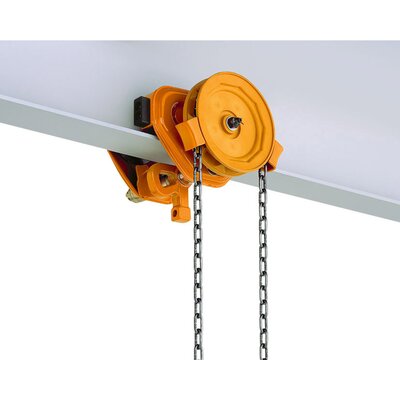

Geared Trolley TSG 0,125-3t

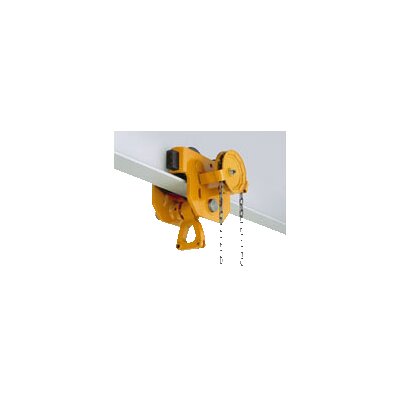

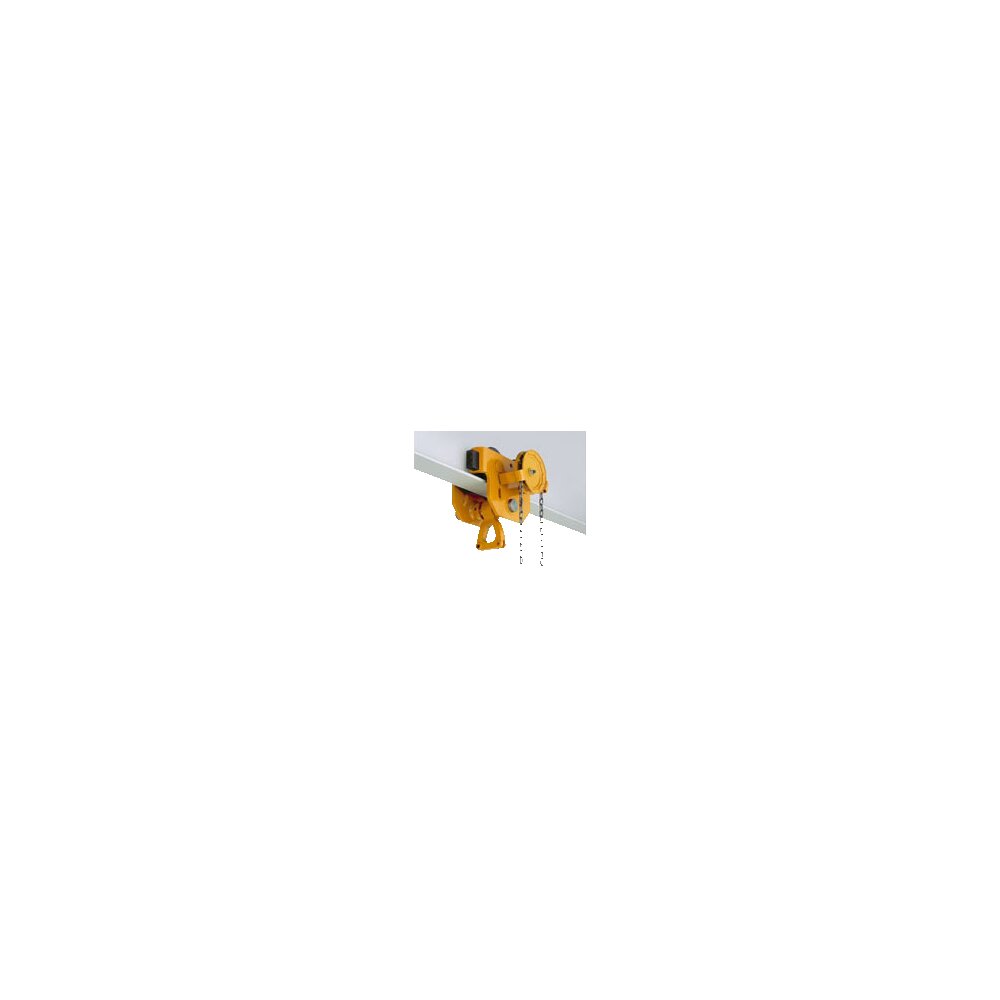

Geared Trolley TSG 5t
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Beam width
mm
Model Chain length
m
I beam width range W30 CAD
16.05TSG0012C030 0.125 58-163 W30 3 164-305
16.05TSG001SC030 0.125 58-163 Standard 3 164-305
16.05TSG002SC030 0.25 58-163 Standard 3 164-305
16.05TSG0032C030 0.25 58-163 W30 3 164-305
16.05TSG0052C030 0.5 58-163 W30 3 164-305
16.05TSG005SC030 0.5 58-163 Standard 3 164-305
16.05TSG0102C030 1 58-163 W30 3 164-305
16.05TSG010SC030 1 58-163 Standard 3 164-305
16.05TSG0152C030 1.5 82-204 W30 3 205-305
16.05TSG015SC030 1.5 82-204 Standard 3 205-305
16.05TSG0202C030 2 82-204 W30 3 205-305
16.05TSG020SC030 2 82-204 Standard 3 205-305
16.05TSG0252C030 2.5 82-204 W30 3 205-305
16.05TSG025SC030 2.5 82-204 Standard 3 205-305
16.05TSG0302C030 3 82-204 W30 3 205-305
16.05TSG030SC030 3 82-204 Standard 3 205-305
16.05TSG0502C030 5 100-204 W30 3,5 205-305
16.05TSG050SC030 5 100-204 Standard 3.5 205-305
16.05TSG0752C030 7.5 100-204 W30 3,5 221-305
16.05TSG075SC030 7.5 150-220 Standard 3.5 221-305
16.05TSG1002C030 10 100-204 W30 4,0 221-305
16.05TSG100SC030 10 150-220 Standard 4 221-305
16.05TSG1502C030 15 150-220 W30 4.5 221-305
16.05TSG150SC030 15 150-220 Standard 4.5 221-305
16.05TSG2002C030 20 150-220 W30 4.5 221-305
16.05TSG200SC030 20 150-220 Standard 4.5 221-305
16.05TSG3002C030 30 190 W30 4.5 191-305
16.05TSG300SC030 30 190 Standard 4.5 191-305
