Gunnebo Industries

Forged according to Swedish standard 1619 type B.

  • Material: Grade 3.
  • Marking: CE-marked, WLL, supplies code and grade.
  • Finish: Galvanized.
  • Safety factor: 5:1

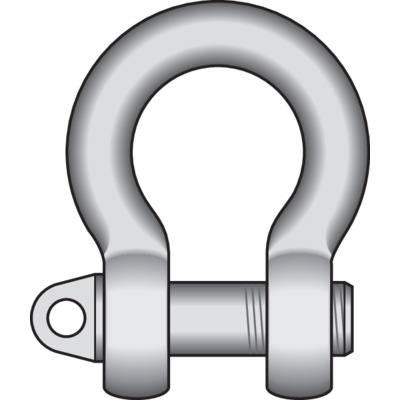

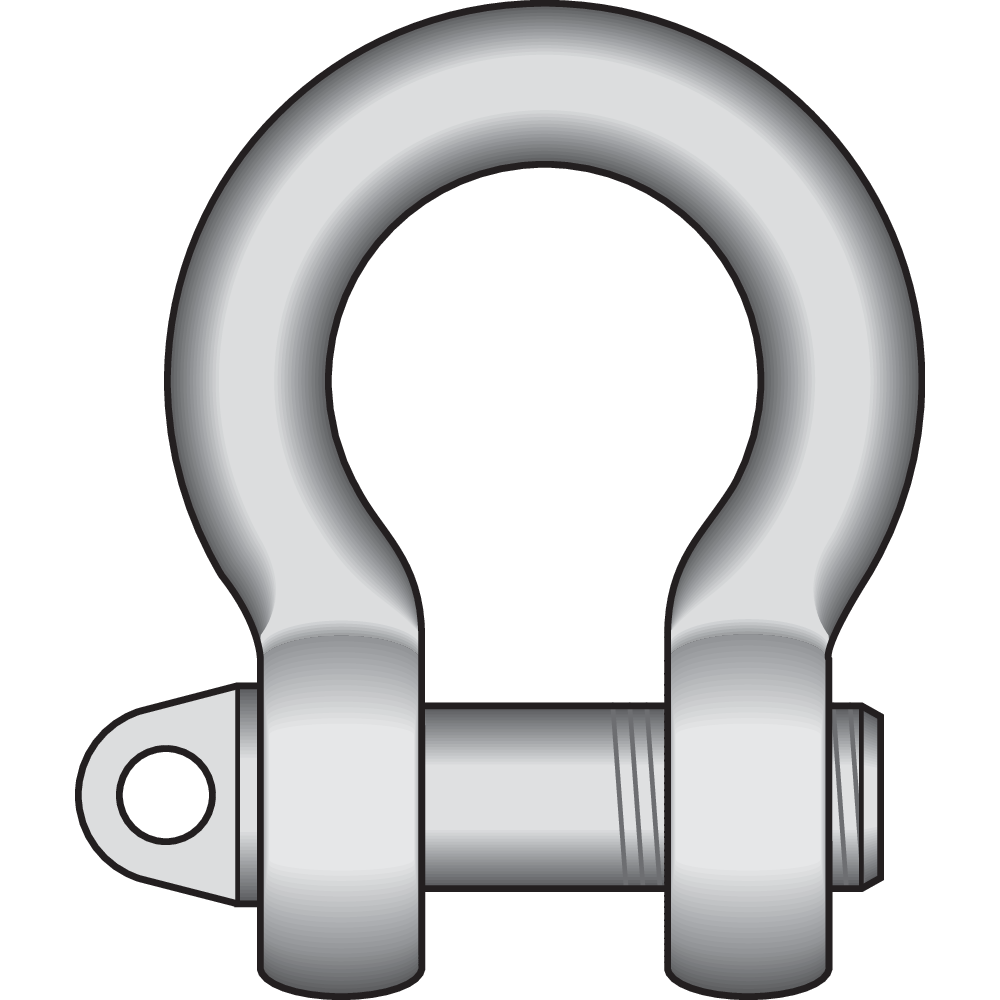

201_e_225mm

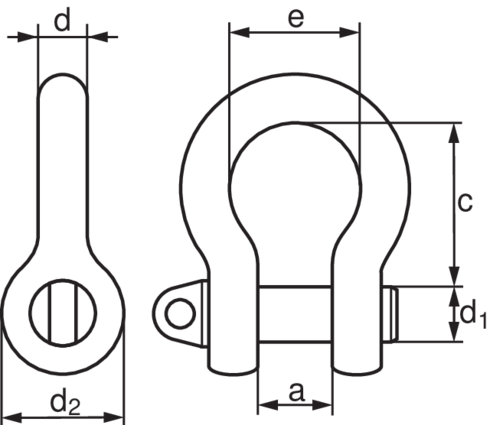

2919_lom_225mm
Select a row from the table below, then click the add to quote button
Part Code WLL Thread
mm
B
mm
D
mm
E
mm
L
mm
Z
mm
Weight
11.391619B006 0,6 M10 15 11 26 34 20 0,13
11.391619B009 0,9 M12 20 13 35 45 26 0,25
11.391619B015 1,5 M16 24 16 42 55 33 0,5
11.391619B024 2,4 M20 28 19 50 65 40 0,83
*Tolerance: +/- 5%
