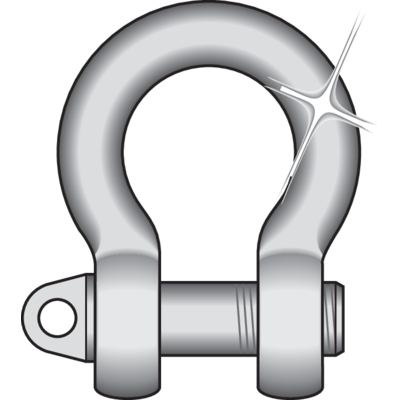

Home / Products / Sling components & lifting hardware / Other components (not for lifting) / Commercial - Bow Shackle SS

Design: Forged.

Material: Stainless acid proof steel. AISI 316.
Finish: Polished.
Warning: Not approved for lifting.

Select a row from the table below, then click the add to quote button

	Part Code	Code	Thread d1	a* mm	c* mm	d mm	e mm	CAD
	11.559033S	9033-S	M8	16	32	8	24
	11.559034S	9034-S	M10	20	40	10	30

**Tolerance: +/- 5%

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
