• Not for lifting
  • Left spiral strand
  • Right spiral strand
  • Heavy Galvanized

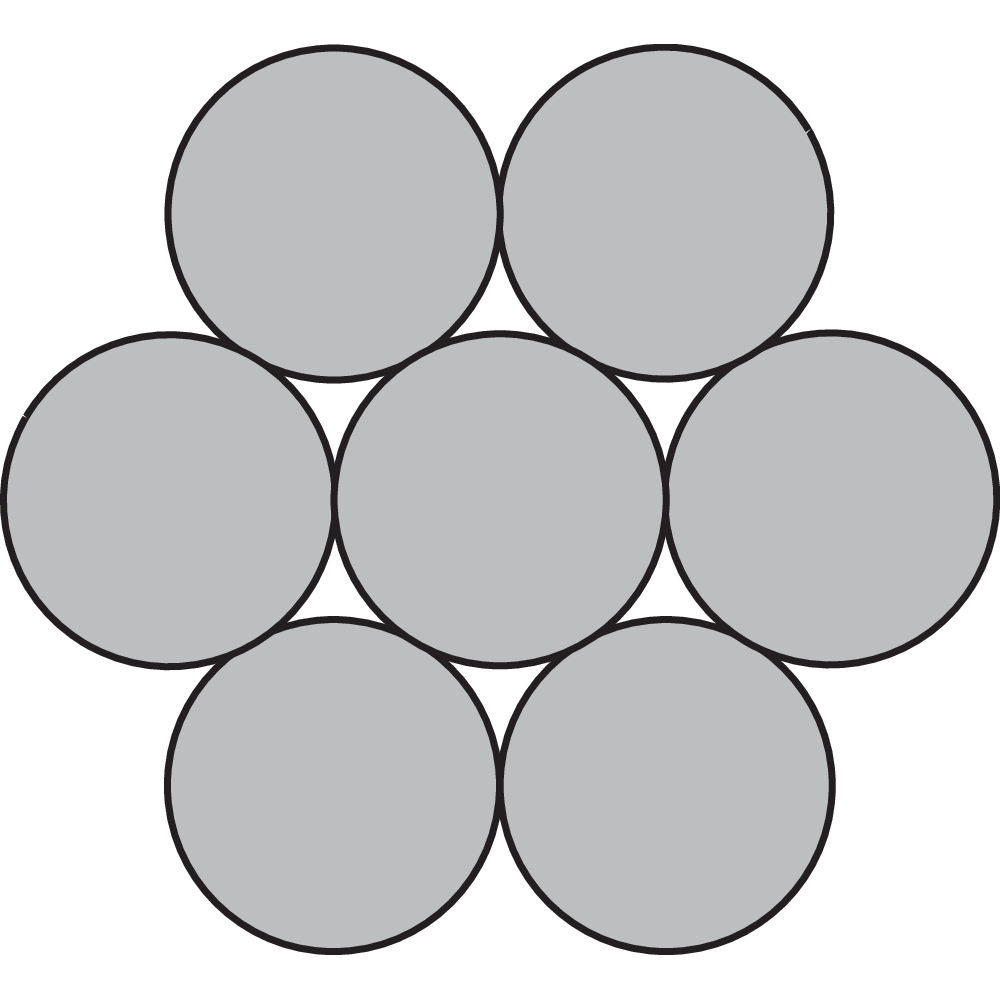

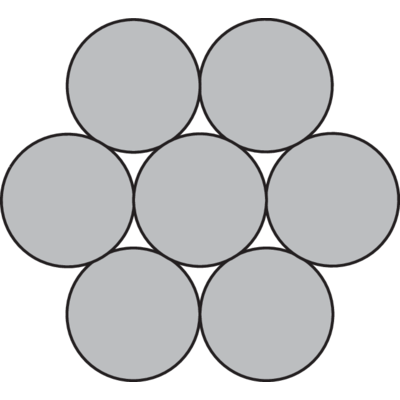

  • Rope construction: 1x7
  • Marking: According to standard
  • Standard: SS 424 08 06
  • Fill factor: 0.78
  • Stay rope Stay rope
1x7[225mm]
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1370 N/mm²
Wire Ø
mm
Weight
kg/100m
01.H52007064C 6,4 25 32 2,12 19
01.H52007073C 7,3 33 43 2,44 26
01.H52007092C 9,2 52 68 3,08 41
01.H52007106C 10,6 68 89 3,52 54
01.H52007121C 12,1 89 116 4,02 70
Other dimensions on request.
Z- right; S-left
