Home / Products / Steel wire ropes & accessories / Steel wire rope / General ropes / Steel Wire Rope 6x7-WSC

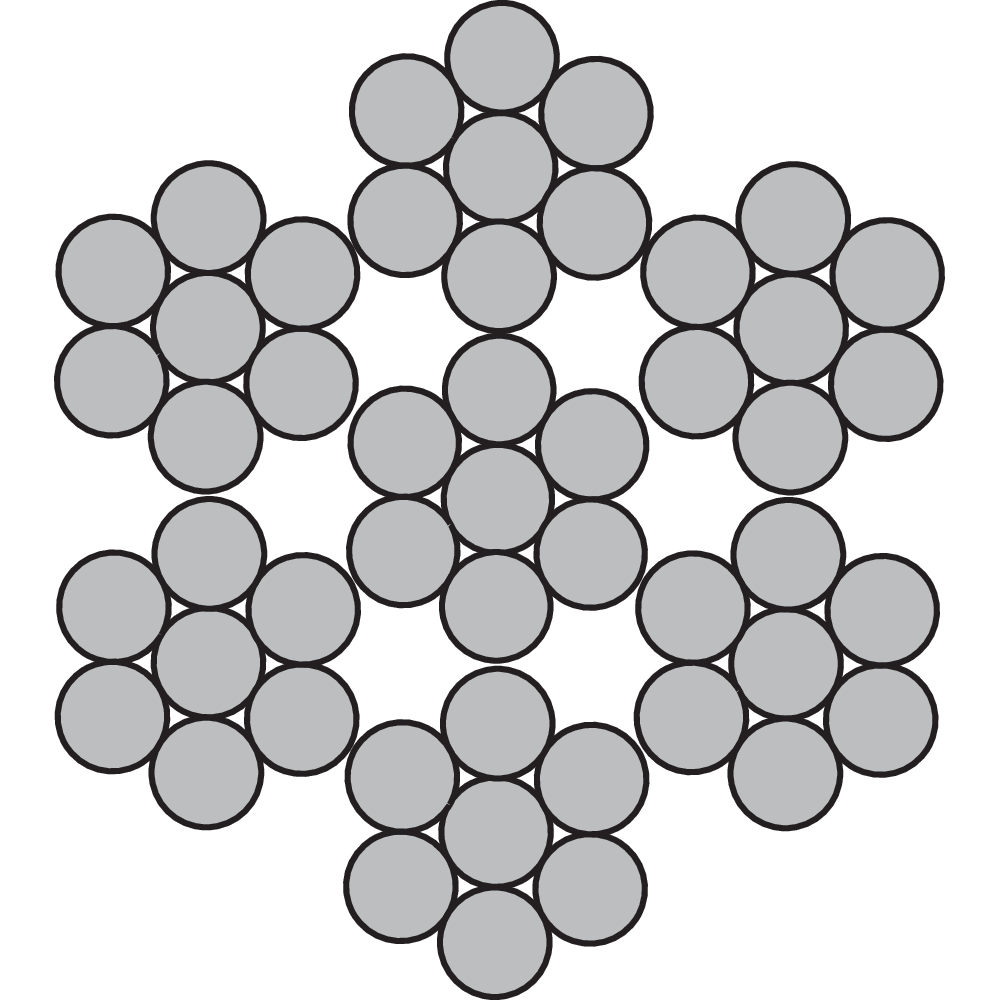

Rope construction: 6x7-WSC (7x7)
Marking: According to standard
Temperature range: -40°C up to +200°C, for operating temperatures between 100 °C and 200 °C reduce MBF by minus 10 %
Standard: EN 12385-4

Fill factor: 0,55

Stay rope
Agriculture and livestock
General use

Select a row from the table below, then click the add to quote button

Part Code	Rope diameter mm	Steel Area mm²	Min. breaking force kN 1770 N/mm²	Weight kg/100m
01.G10049018E	1.8	1.4	2.06	1.24
01.G10049020E	2	1.73	2.75	1.54
01.G10049023E	2.3	2.29	3.36	2.03
01.G10049030E	3	3.89	6.18	3.46
01.G10049040E	4	6.91	11	6.14
01.G10049050E	5	10.8	17.2	9.6
01.G10049060E	6	15.6	24.7	13.8
01.G10049070E	7	21.2	33.7	18.8
01.G10049080E	8	27.6	44	24.6
01.G10049090E	9	35	55.6	31.1
01.G10049100E	10	43.2	68.7	38.4
01.G10049110E	11	52.3	83.1	46.5
01.G10049120E	12	62.2	98.9	55.3
01.G10049130E	13	73	116	64.9
01.G10049140E	14	84.7	135	75.3
01.G10049150E	15	97.2	155	86.4
01.G10049160E	16	111	176	98.3
01.G10049180E	18	140	223	124
01.G10049200E	20	173	275	154

Other dimensions on request.
