• Not for lifting
  • Ordinary right hand lay
  • Galvanized
  • Not to be used with swivel

6x7-FC is a steel wire rope for general purposes like hanging signs, small stays and in agriculture, but not for lifting. The rope is equipped with a Fibre Core (FC).

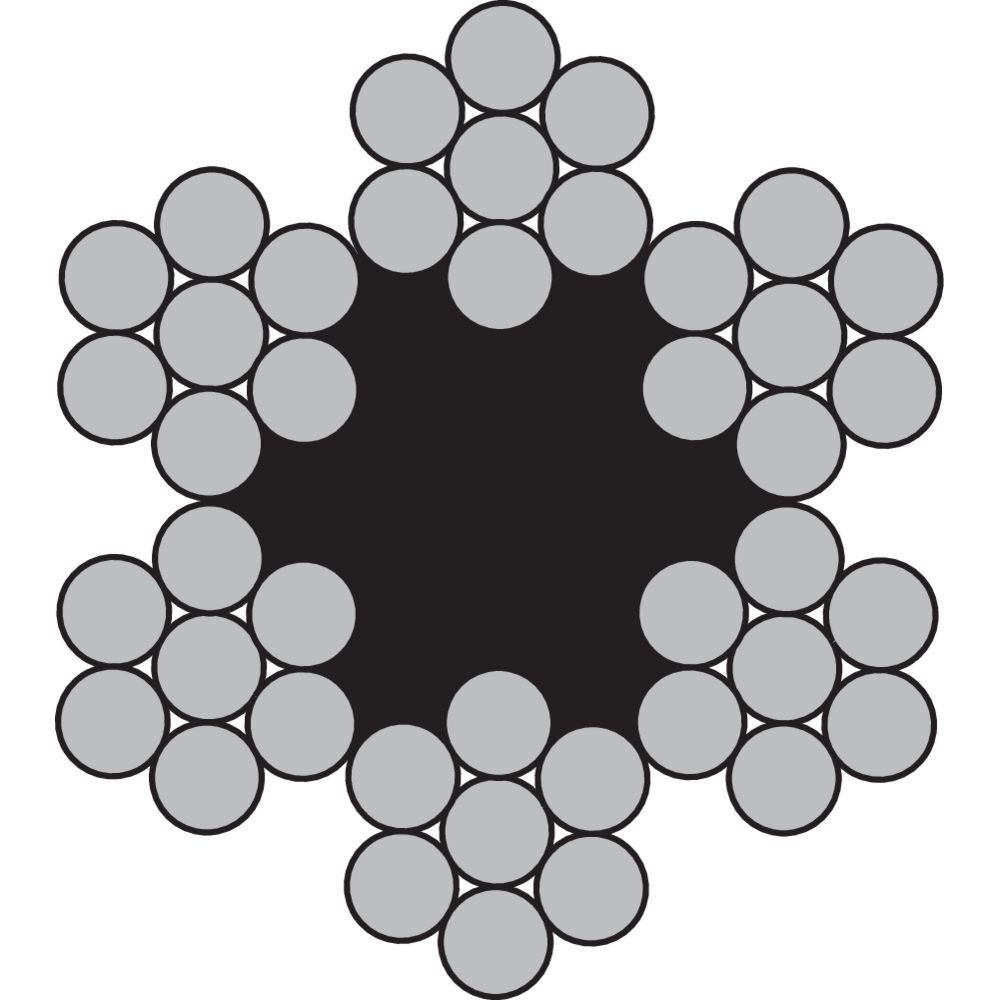

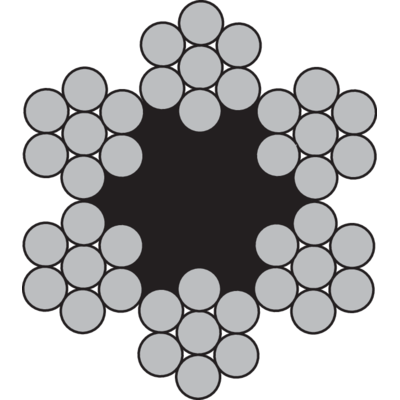

  • Rope construction: 6x7-FC
  • Marking: According to standard
  • Temperature range: -40°C up to +100°C
  • Standard: EN 12385-4
  • Fill factor: 0,47
  • General use Wire for general use
  • Stay rope Stay rope
  • Agriculture and livestock Wire for agriculture
6x7-FC_225mm
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1770 N/mm²
Weight
kg/100m
01.G10042020E 2 1,48 2,35 1,38
01.G10042025E 2,5 2,31 3,67 2,16
01.G10042030E 3 3,32 5,29 3,11
01.G10042040E 4 5,9 9,4 5,52
01.G10042050E 5 9,23 14,7 8,63
01.G10042060E 6 13,3 21,2 12,4
01.G10042070E 7 18,1 28,8 16,9
01.G10042080E 8 23,6 37,6 22,1
01.G10042090E 9 29,9 47,6 27,9
01.G10042100E 10 36,9 58,8 34,5
01.G10042110E 11 44,6 71,1 41,7
01.G10042120E 12 53,1 84,6 49,7
Other dimensions on request.
