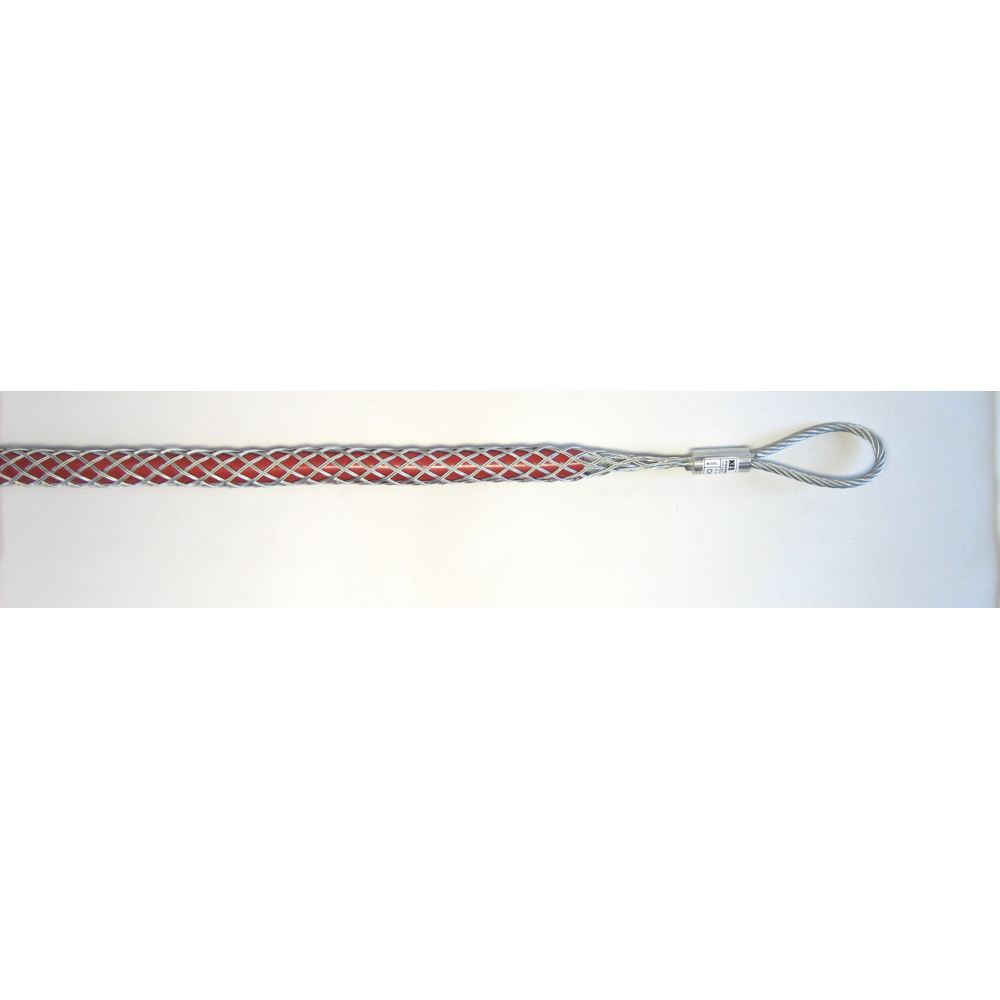

- Rope construction: : Braided double ropes.
- Material: : Steel wire - Galvanized.
- Warning: Margin of safety is applied to all specified breaking loads. Additional safety factors, depending on area of use should be applied. CERTEX recommends a safety factor of 3:1 for horizontal pulls and 5:1 for overhead pulling. The breaking load varies with the material, shape, and also the diameter of the product.
Currently this product cannot be added to an online quote. Please contact us directly for enquires.
Standard
|
Art no
|
Grip Ø
|
Length
|
|
Steel wire rope Ø
|
Breaking load
|
Weight
|
|
|
|
mm
|
Eye
|
Net
|
mm
|
tons
|
kg
|
|
|
10.42DE000812S
|
8-12,5
|
120
|
400
|
5
|
0, 88
|
0,15
|
|
|
10.42DE001215S
|
12,5-15,5
|
125
|
550
|
5
|
1,41
|
0,22
|
|
|
10.42DE001519S
|
15,5-19
|
155
|
600
|
6
|
1,76
|
0,29
|
|
|
10.42DE001925S
|
19-25
|
175
|
600
|
6
|
2,11
|
0,32
|
|
|
10.42DE002538S
|
25-38
|
200
|
600
|
6
|
3,03
|
0,41
|
|
|
10.42DE003850S
|
38-50,5
|
260
|
600
|
8
|
4,39
|
0,66
|
|
|
10.42DE005063S
|
50,5-63,5
|
285
|
600
|
8
|
5,41
|
0,76
|
|
|
10.42DE006376S
|
63,5- 76
|
330
|
600
|
9
|
7,22
|
1,06
|
|
|
10.42DE007689S
|
76-89
|
345
|
650
|
9
|
7,22
|
1,12
|
|
|
10.42DE089101S
|
89-101,5
|
370
|
650
|
10
|
9,03
|
1,43
|
|
Long
|
Art no
|
Grip Ø
|
Length
|
|
Steel wire rope Ø
|
Breaking load
|
Weight
|
|
|
|
mm
|
Eye
|
Net
|
mm
|
t
|
kg
|
|
|
10.42DE001925L
|
19-25
|
175
|
900
|
6
|
2,110
|
0,41
|
|
|
10.42DE002538L
|
25-38
|
200
|
900
|
6
|
3,030
|
0,61
|
|
|
10.42DE003850L
|
38-50,5
|
260
|
900
|
8
|
4,390
|
0,96
|
|
|
10.42DE005063L
|
50,5-63,5
|
285
|
900
|
8
|
5,415
|
0,96
|
|
|
10.42DE006376L
|
63,5-76
|
330
|
900
|
9
|
7,225
|
1,62
|
|
|
10.42DE007689L
|
76-89
|
345
|
900
|
9
|
7,225
|
1,65
|
|
|
10.42DE089101L
|
89-101,5
|
370
|
900
|
10
|
9,030
|
2,1
|
|
|
10.42DE101114L
|
101,5-114
|
400
|
900
|
12
|
10,835
|
2,18
|
|
|
10.42DE114127L
|
114-127
|
400
|
900
|
12
|
10,835
|
2,52
|
|
|
10.42DE127152L
|
127-152
|
450
|
900
|
12
|
10,835
|
2,61
|
|
|
10.42DE152180L
|
152-180,5
|
450
|
900
|
12
|
10,835
|
2,7
|
|
