• Not for lifting

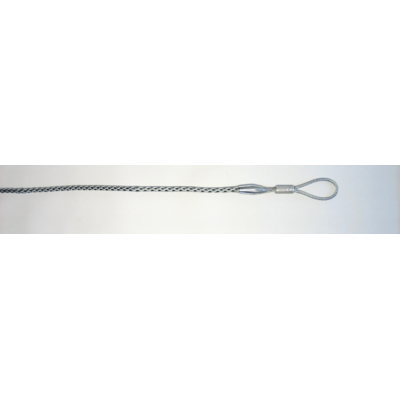

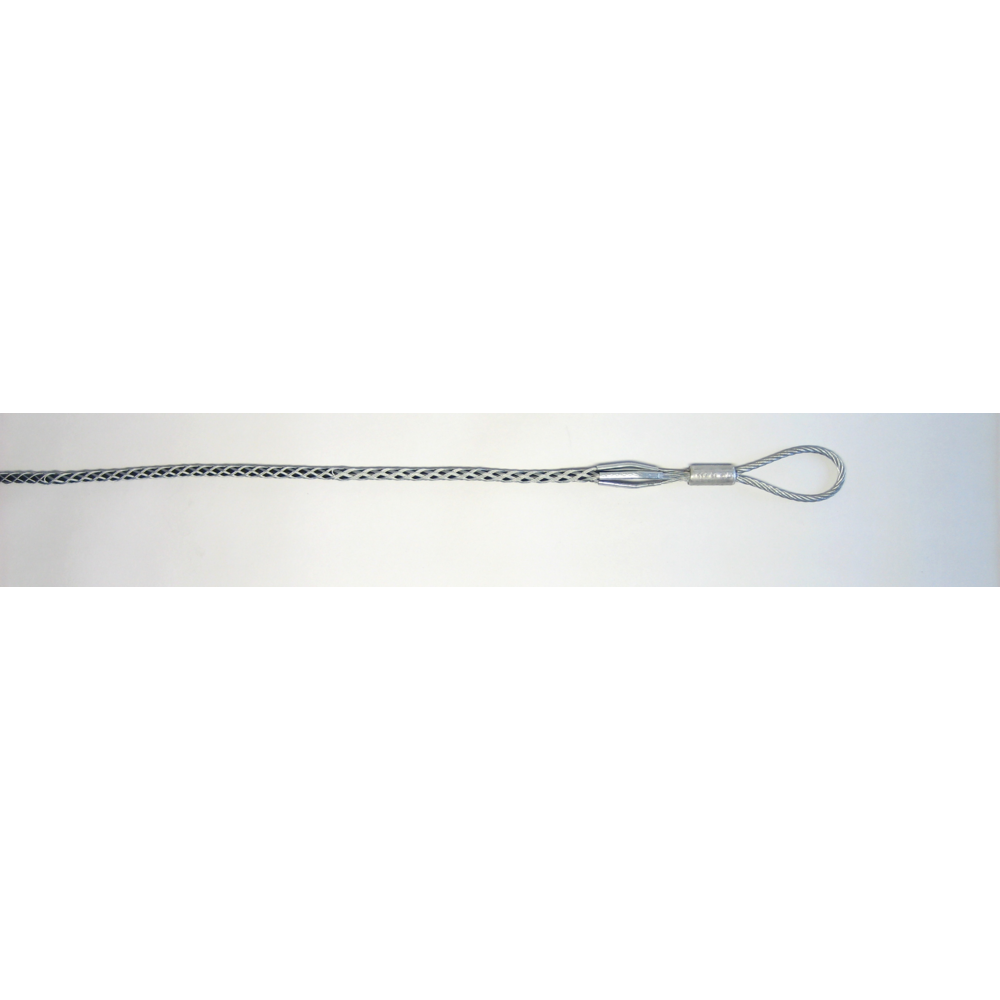

General: A robust sock to pull any wire rope and wire in pure aluminum or copper. Has extra long braid in secitions of triple-double and single wire. The model has a soft eye to fit a swivel. To counteract attrition, and increase the life time the sock is fitted with aluminum collars.
Design: Intertwined - triple, double and single.

  • Material: : Steel wire - galvanized.
  • Warning: Margin of safety is applied to all specified breaking loads. Additional safety factors, depending on area of ​​use should be applied. CERTEX recommends a safety factor of 3:1 for horizontal pulls and 5:1 for overhead pulling. The breaking load varies with the material, shape, and also the diameter of the product.
Pulling grip
Pulling grip
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
Rope diameter
mm
MBL
ton
Length Eye Length Net Weight
kg
10.42LE000612 6 6.5-12.5 1,63 185 660 0,24
10.42LE001319 8 13-19 3,17 225 815 0,52
10.42LE001925 8 19-25 4,54 225 1 045 0,7
10.42LE002531 10 25-31.5 8,12 340 1 290 1,38
10.42LE003238 12 32-38 10,72 370 1 425 2,06
10.42LE003844 12 38-44 10,72 370 1 525 2,19
10.42LE004457 14 44.5-57 16,92 430 1 785 3,6
10.42LE005063 14 50.5-63.5 16,92 430 1 785 3,64
