• Not for lifting

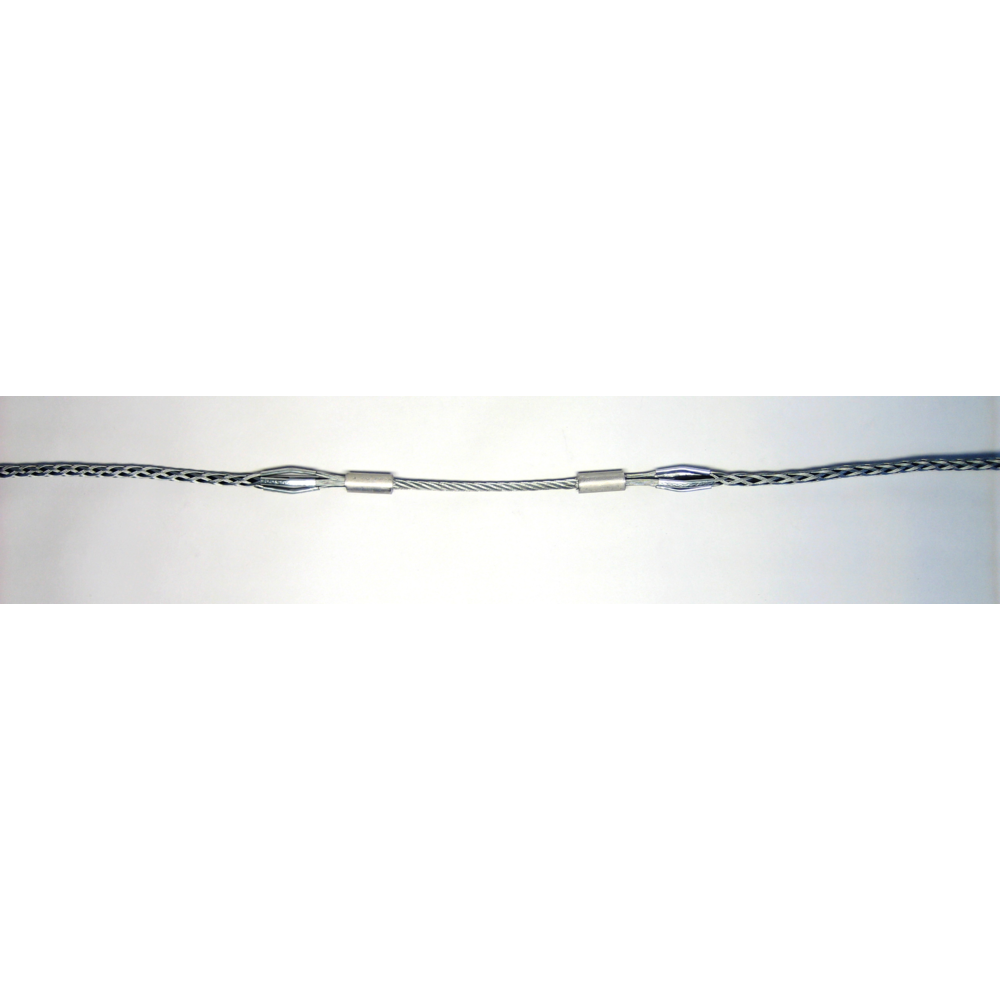

General: Splice stockings intended for splicing steel cable and wire that require large pulling forces, which are difficult to grip. Consists of two LE socks that are assembled in half with a steel cable. When changing a wire rope of 6 - and 8-wires you should use two LE-socks intertwined with minstrel used to prevent any torque to be transferred to the new wire rope.

  • Rope construction: : Braided - triple, double and single.
  • Material: : Steel wire - galvanized.
  • Warning: Margin of safety is applied to all specified breaking loads. Additional safety factors, depending on area of ​​use should be applied. CERTEX recommends a safety factor of 3:1 for horizontal pulls and 5:1 for overhead pulling. The breaking load varies with the material, shape, and also the diameter of the product.
Pulling grip
Select a row from the table below, then click the add to quote button
Part Code MBL
Grip Ø
Length Eye Length Net Weight
10.42SL000612 1.63 6,5-12,5 200 1,520 0.48
10.42SL001319 3.17 13-19 200 1,830 1.04
10.42SL001925 4.54 19-25 250 2,340 1.4
10.42SL002531 8.12 25-31,5 250 2,830 2.76
10.42SL003238 10.72 32-38 250 3,100 4.12
10.42SL003844 10.72 38-44 250 3,300 4.38
10.42SL004457 16.92 44,5-57 300 3,870 7.2
