General: FE.DSS
Allows the use of the existing fixation point.
Swiveling under load.
On request the product can be certified for lashing.

  • Material: High tensile steel
  • Marking: According to standard, GRADUP steel quality, the recommended tightening torque stamped on all lifting rings in the GRADUP range, the manufacturer brand, traceability marks of each component ( batch number) the thr
  • Standard: EN 1677-1
  • Safety factor: : 5:1
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button

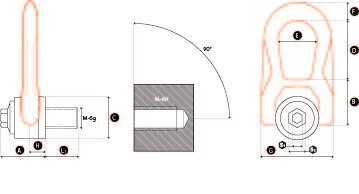

Part Code Thread WLL Torque
Nm
L (mm) max. S (mm) A
mm
B (mm) C (mm) D
mm
E (mm) F (mm) G (mm) Weight
kg
CAD
11.42FE. DSS M 24 UP M 24 (x3) 4,50 160 66 50 66 31 70 104 73 149 33 5.8
11.42FE. DSS M 27 UP M 27 (x3) 5,20 200 66 50 66 31 70 104 73 149 33 5.8
11.42FE.DSS M 30 UP M 30 (x3.5) 7,50 250 66 50 66 31 70 104 73 149 33 5.8
11.42FE. DSS M 33 UP M 33 (x3.5) 8,00 250 66 50 66 31 70 104 73 149 33 5.8
11.42FE. DSS M 36 UP M 36 (x4) 10,00 320 66 50 66 31 70 104 73 149 33 5.8
11.42FE. DSS M 39 UP M 39 (x4) 12,00 320 89 60 89 38 95 125 91 182 45 12
11.42FE.DSS M 42 UP M 42 (x4,5) 13,00 400 89 60 89 38 95 125 91 182 45 12
11.42FE. DSS M 45 UP M 45 (x4,5) 14,50 400 89 60 89 38 95 125 91 182 45 12
11.42FE. DSS M 48 UP M 48 (x5) 17,00 600 89 60 89 38 95 125 91 182 45 12
11.42FE. DSS M 52 UP M 52 (x5) 19,00 600 89 60 89 38 95 125 91 182 45 12
UNC thread also available: from UNC 1" to UNC 2"
