Female Double swivel ring SS FE DSR, stainless steel

Home / Products / Sling components & lifting hardware / Lifting hardware / Lifting points / Female Double Swivel Ring Codipro SS FE DSR

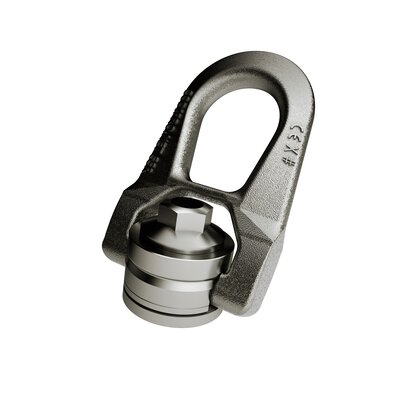

SS FE DSR M Stainless steel female double swivel ring.
The stainless steel version of the double swivel ring, FE.DSR, can be used in humid, corrosive, chemical, maritime environment. Its double articulation allows it to line up perfectly with the sling

Features:

Rotatable under load.

Material: AISI 316 L
Marking: According to standard, CE-marked
Standard: EN 1677-1
except grade/WLL

Safety factor: 5:1

Select a row from the table below, then click the add to quote button

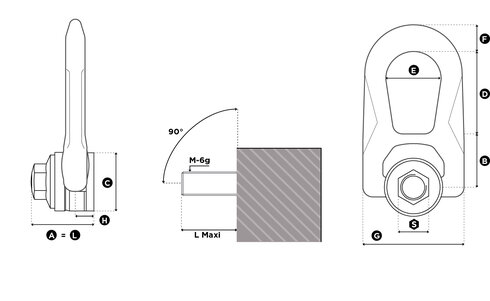

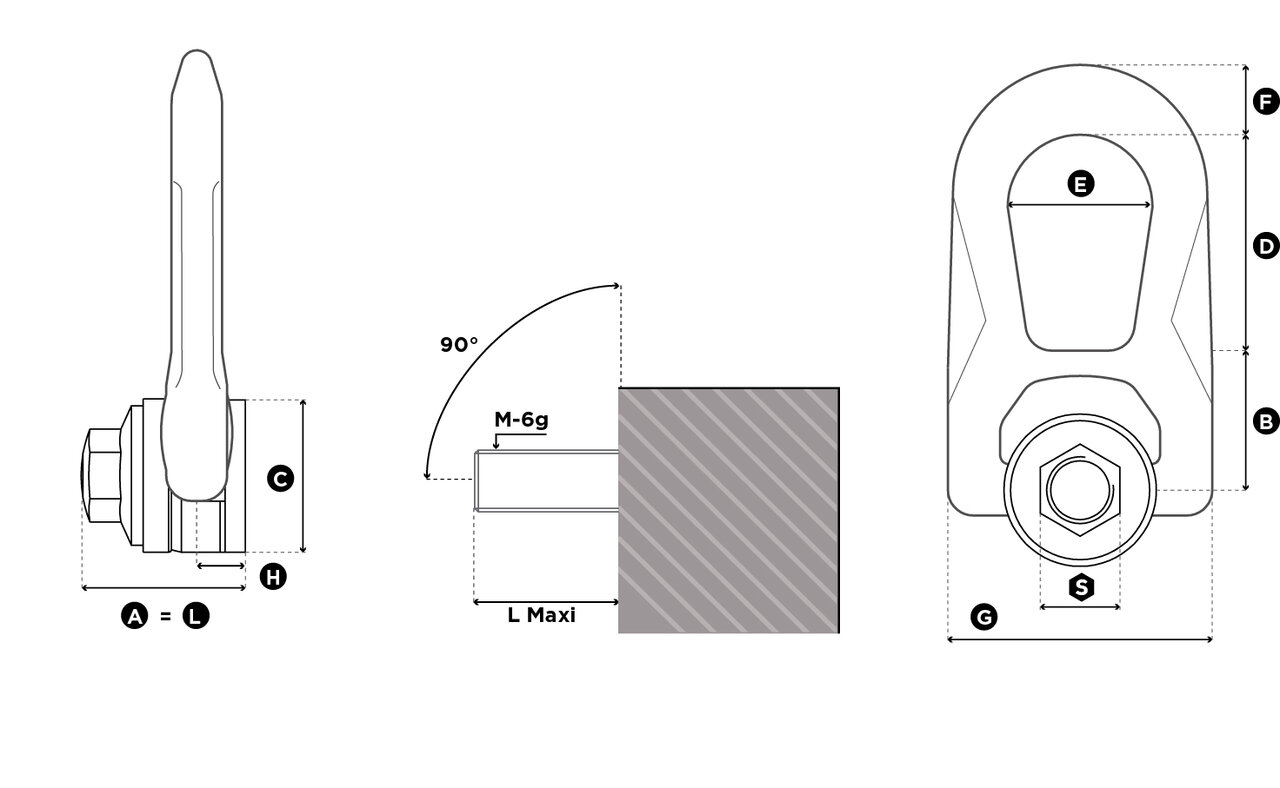

Part Code	WLL ton	Thread	Torque Nm	L max. mm	S mm	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	Weight kg	CAD
11.49SS.FE.DSR M 8	0,3	M 8 (x1,25)	6	43	20	43	40	45	53	38	17	76	13	0,9	-
11.49SS.FE.DSR M 10	0,5	M 10 (x1,50)	10	43	20	43	40	45	53	38	17	76	13	0,9	-
11.49SS.FE.DSR M 12	0,8	M 12 (x1,75)	15	43	20	43	40	45	53	38	17	76	13	0,9	-
11.49SS.FE.DSR M 14	1	M 14 (x2)	30	43	20	43	40	45	53	38	17	76	13	0,9	-
11.49SS.FE.DSR M 16	1,4	M 16 (x2)	50	43	20	43	40	45	53	38	17	76	13	0,9	-
11.49SS.FE.DSR M 18	1,4	M 18 (x2,5)	70	62	24	62	55	58	83	56	25	115	19	2,6	-
11.49SS.FE.DSR M 20	1,4	M 20 (x2,5)	100	62	24	62	55	58	83	56	25	115	19	2,6	-
11.49SS.FE.DSR M 22	2,2	M 22 (x2,5)	120	62	24	62	55	58	83	56	25	115	19	2,6	-

Also available in UNC-thread
