General: FE.SEB
Allows the use of the existing fixation point
Swiveling under load
On request the product can be certified for lashing.

  • Material: High tensile steel
  • Marking: GRADUP steel quality, the recommended tightening torque stamped on all lifting rings, brand, traceability marks of each component ( batch number) the thread diameter, the WLL, and an id nr
  • Finish: Red painted
  • Standard: EN 1677-1
  • Safety factor: 5:1

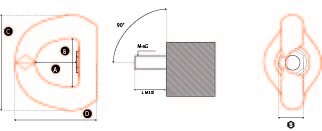

Product Picture 1
Select a row from the table below, then click the add to quote button
Art No Thread WLL Torque
Nm
L max. A (mm) B (mm) C (mm) D (mm) Weight
kg
CAD
11.45FE.SEBM10UP M 10 (x1,50) 0,50 10 22 38 45 88 80 0.8
11.45FE.SEBM12UP M 12 (x1,75) 0,80 15 22 38 45 88 80 0.8
11.45FE.SEBM16UP M 16 (x2) 1,40 50 22 38 45 88 80 0.8
11.45FE.SEM8UP M 8 (x1,25) 0,40 6 22 38 45 88 80 0.8
11.45FE.SEBM20UP M 20 (x2,5) 2,00 100 35 55 70 115 106 2.5
11.45FE.SEBM24UP M 24 (x3) 3,40 160 48 77 94 168 155 6.3
11.45FE.SEBM30UP M 30 (x3,5) 5,50 250 48 77 94 168 155 6.3
11.45FE.SEBM36UP M 36 (x4) 9,00 320 48 77 94 168 155 6.3
UNC thread also available: from UNC 3/8" to UNC 1"1/4
