Crane Lift Basket BK-500 / BK-1000 / BK-1000 (Emergency)

Man riding baskets can be used quickly and safely for temporary working at heights. Our man riding baskets are designed to be hung from a crane hook.
If the basket is exposed to corrosive environment, we recommend additional treatment according to Offshore coating system.

Storage: For increased longevity, we recommend that the basket is stored in-doors in a dry environment.”

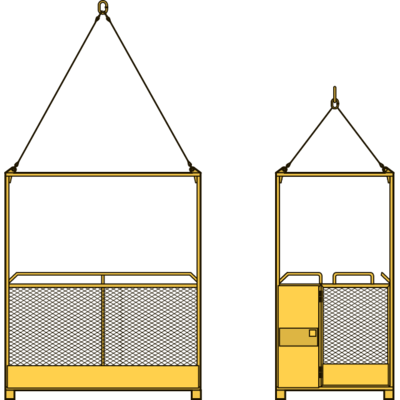

Design: Welded frame in hollow beam with the bottom and sides covered in expanded-metal mesh. Personal items of safety equipment can be attached to the inside handrail. The basket is supported underneath for easy handling by truck or forklift. A gate is provided on one of the short sides (see the respective model). The basket is supplied complete with a four leg wire rope sling and a masterlink type MLA.
BK-500: Supplied with inward-opening latching gate.
BK-1000: Supplied with inward-opening latching gate.
BK-1000E (Emergency): Identical to the BK-500 / BK-1000 above except that in an emergency the entire end gate can be opened outwards to provide access, eg, for a stretcher and medical equipment to be taken on board.


Proof: First inspection by accredited third party authority including certificate.

  • Material: Hollow-beam and plate of high-strength structural steel.
  • Marking: Sign according to standard for inspection mark.
  • Finish: Yellow painted.
  • Note: Before use basket and crane has to be initially inspected together.
