Typically used in connection with theaters, scenes etc. where the round sling preferably should not be visible.
Design: Load carrying yarn covered with “seamless” black protection sleeve.
Stretch with working load: 2-3%.

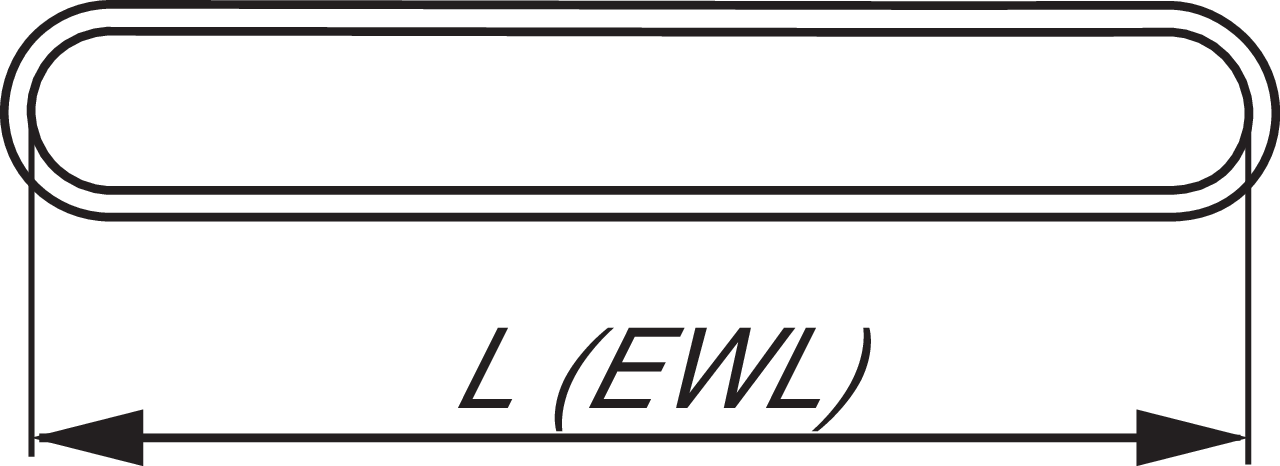

Length tolerance: Nominal length (EWL) ±2%.
- Material: Polyester. Resistant to most acids but not to strong alkalizes.
- Marking: CE-marked, Manufacture ID, WLL, length, date.
- Temperature range: Approx. -40° up to +100°C.
- Safety factor: 7:1
Select a row from the table below, then click the add to quote button
Download CAD
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
Get CAD
Download
